Omron DeviceNet CV Series Operation Manual page 136

Remote Adapters
V+
CAN H
DRAIN
CAN L
V–
SOURCE
24 V DC +
SOURCE
24 V DC –
Wiring of the DRT1-OD16X (NPN)
Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com

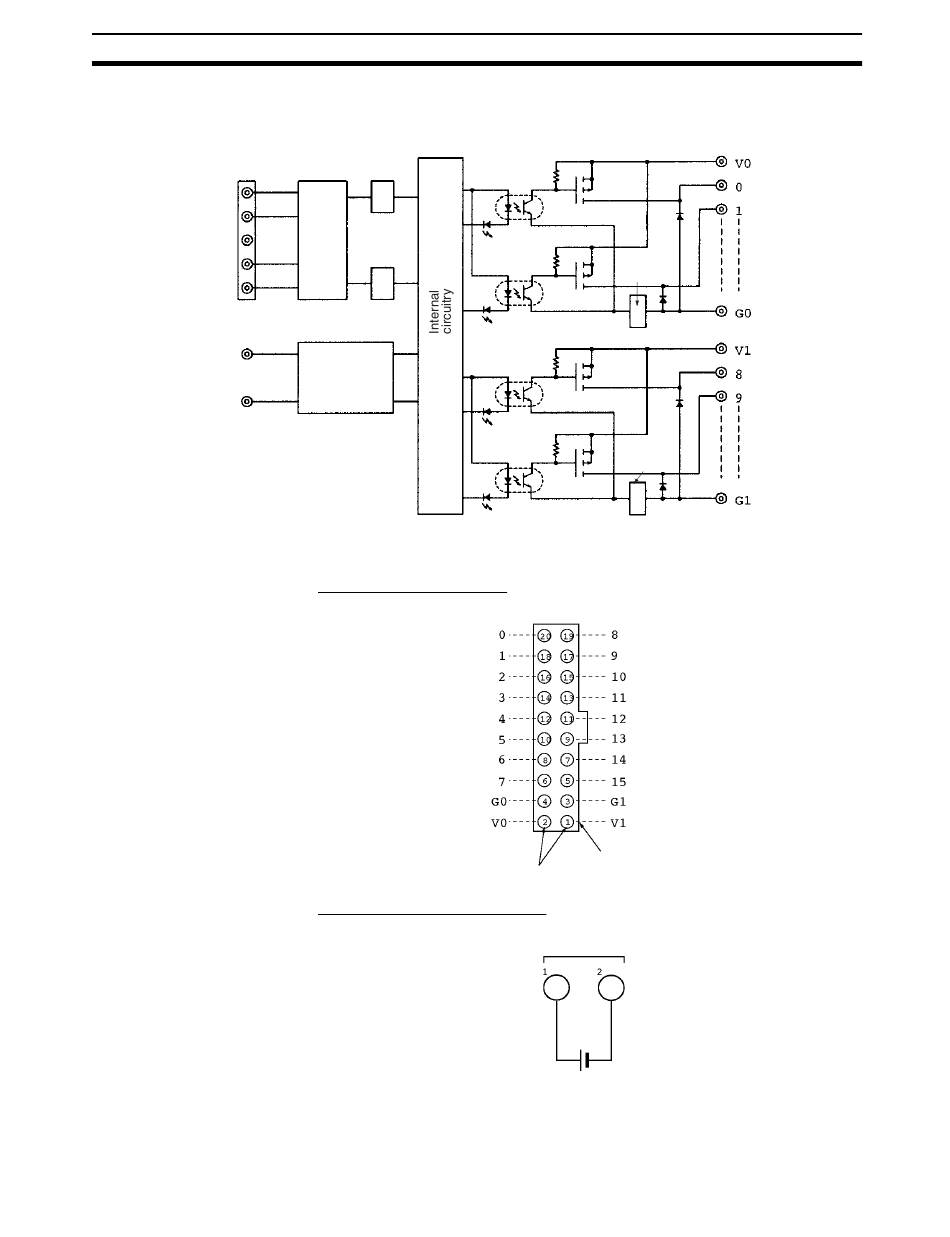

The following diagram shows the internal circuits for the DRT1-OD16X-1
Remote Output Adapter.
Photo-
coupler
Photocoupler
Physical
Photo-
layer
coupler
DC-DC Photocoupler
converter
(Isolated)
Connector Pin Allocation
Internal Circuits Power Supply
Photo-
Voltage
coupler
step-down
Photo-
Voltage
coupler
step-down
TOP VIEW
▲ Triangle mark
Connector pin No.
SOURCE
24 V DC
–
+
+ –
Internal circuits
power supply
Section 4-6
119
