Omron DeviceNet CV Series Operation Manual page 127

Transistor Remote I/O Terminals with Connectors
Using Pressure-welded
Flat Cable Connectors
1,2,3...
Using Loose Wires with
Pressure-welded
Connectors
Note
110
Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com

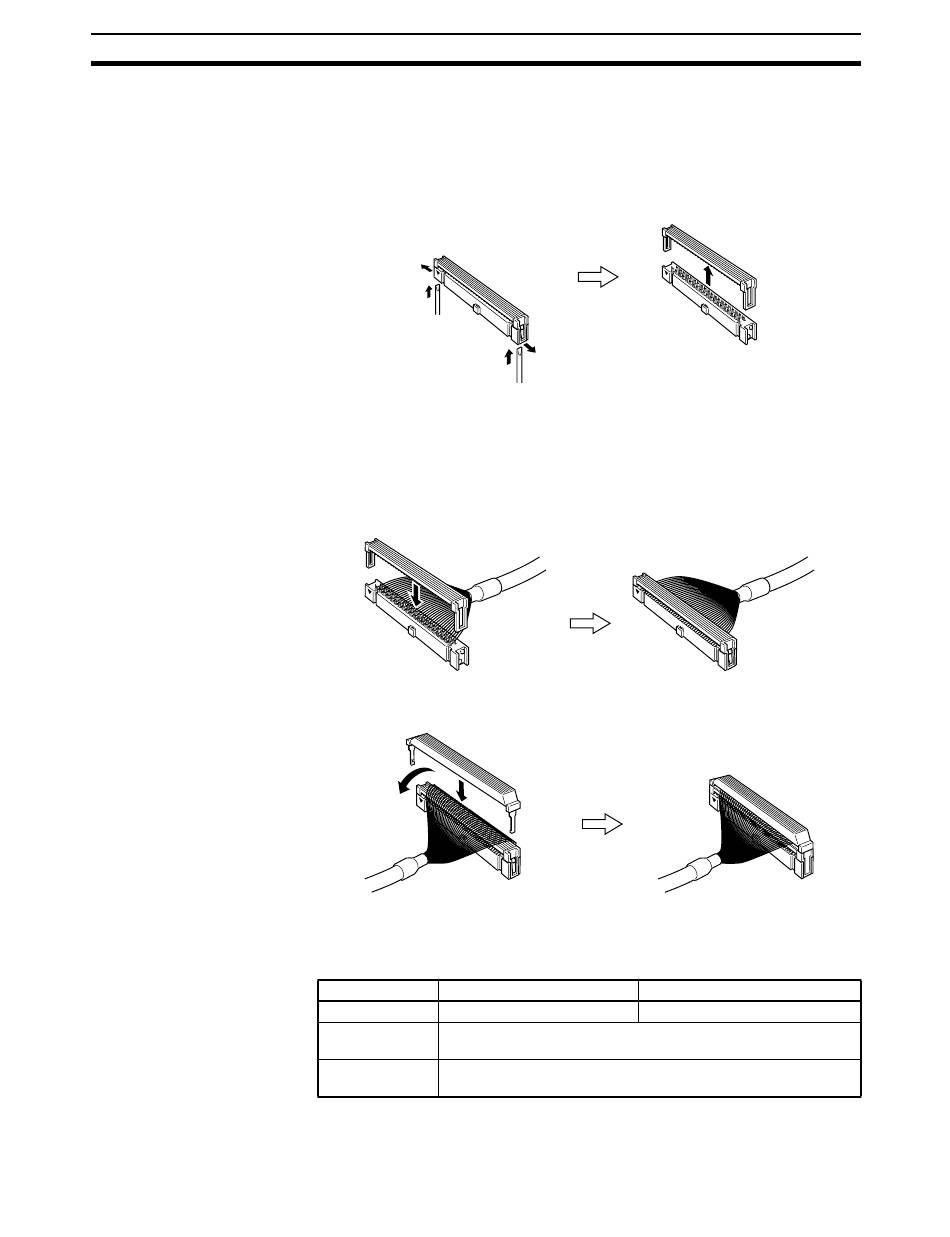

Use the following procedure to prepare flat cables with XG4M-4030-T MIL
Connectors.
1. Use precision screwdrivers to open the hooks on both ends and separate
the contacts from the cover of the MIL socket. There are two tabs on each
end of the contact side of the socket. Release both of these at the same
time, not one at a time.
2. Place the flat cable between the contacts and cover of the socket, align the
contacts, and press on the cover to lock it in place on the contacts. Use a
vise or similar device to firmly press the cover on until the tabs are properly
joined.
Applicable Wires: 1.27-mm pitch flat cable, AWG28 (7-strand wire)
UL2651: Standard Cable, UL20012: Stranded Cable, UL20028: Color
Coded Cable
3. If required, fold the back over the connector, and insert and lock a strain
relief in place.
4. Connect the MIL Connector to a Remote I/O Terminal with a Connector.
Use the following parts to prepare cables. The Socket used depends on the
wire size.
Part Cable wire size: AWG24
Socket XG5M-4032-N
Semi-cover XG5S-2001
(See note 1.)
Hood Cover XG5S-5022
(See note 2.)
1. Two Semi-covers are required for each connector.
Section 4-5
Cable wire size: AWG26 to 26
XG5M-4035-N
