Transistor Input Sensor Terminals with 16 Points: DRT1-HD16S

Input Specifications
Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com
rect baud rate may cause communications errors between nodes with cor-
rect baud rate settings.

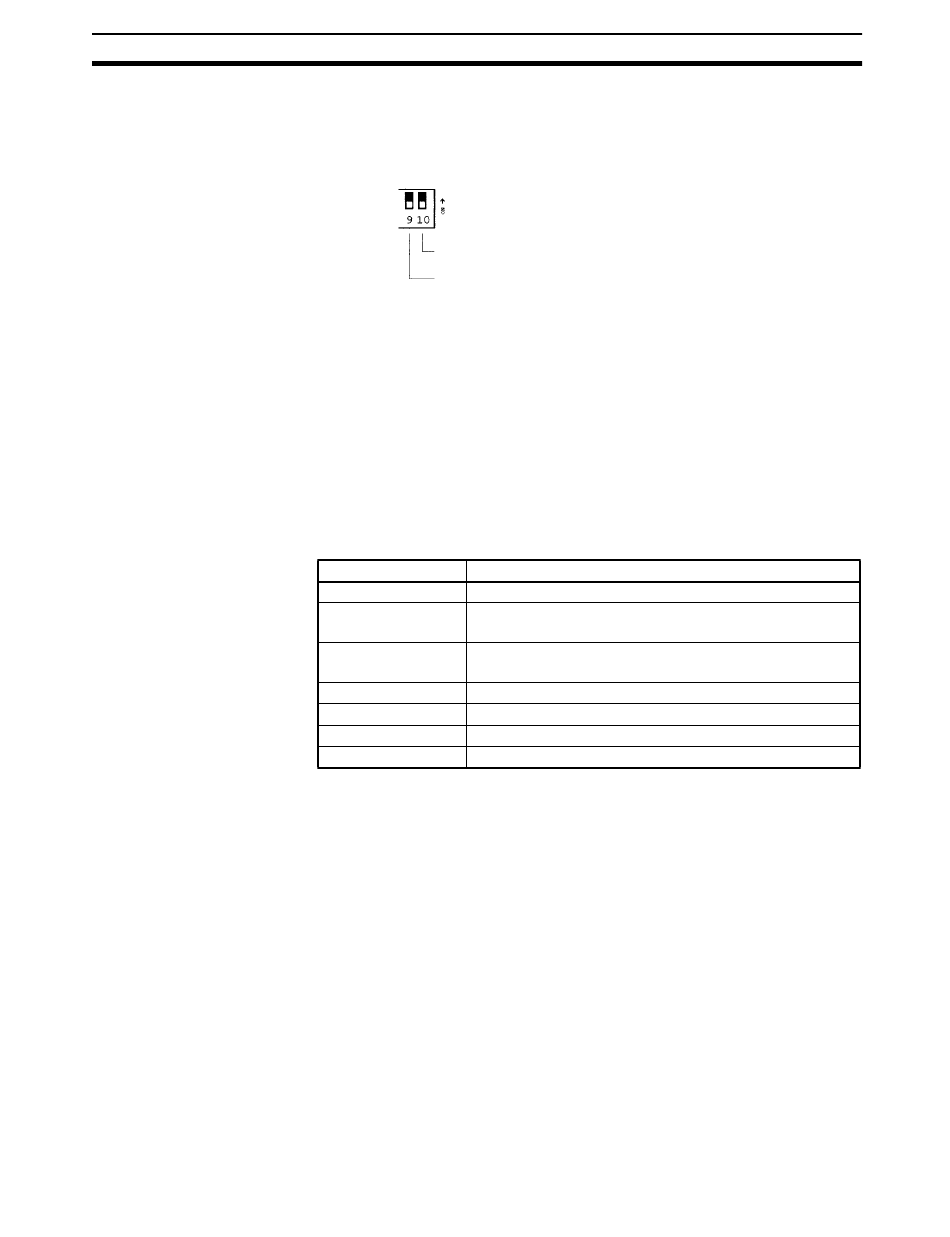

The functions of pins 9 and 10 differ for inputs and outputs, as shown in the
following diagram.
Input:
Output:
Reserved: Always OFF
Pin 9: Reserved (Always OFF)
Pin 10: As follows:
Inputs: No function (Always OFF)
Outputs: Hold/Clear outputs for communications error
OFF (Clear): All output data from the Master will be cleared to 0 when a
communications error occurs.
ON (Hold): All output data from the Master will be retained when a
communications error occurs.
Pins 9 and 10 are factory-set to OFF.
Item
Input points 16 NPN points
ON voltage 12 V DC min. (between each input terminal and V
external sensor power supply)
OFF voltage 4 V DC max. (between each input terminal and V
external sensor power supply)
OFF current 1.0 mA max.
Input current 10 mA max./point
ON delay time 1.0 ms max.
OFF delay time 1.5 ms max.
Not used (Always OFF)
Hold/Clear outputs for communications error
Specification
