2.3 Removing and installing sealing flange
on gearbox side
Special tools and workshop equipment required
♦ Depth gauges - VAS 6082-
♦ Assembly tool - T10134-
♦ Fixing screw - T10340-
♦ 3x screw M6x35.
Work procedure
• Gearbox removed ⇒ Gearbox; Rep. gr. 34 .
Note
For a clearer illustration, see the work sequences while the engine
is removed.
– Remove the flywheel
⇒ "2.2 Removing and installing flywheel", page 48
Set the crankshaft to "OT":
– Remove ignition coil with power output stage 1
– Remove ignition plug cylinder 1 with spark plug socket
wrench , e. g. -3122 B- .
Set the correct position of the crankshaft for screwing in the fixing
screw.

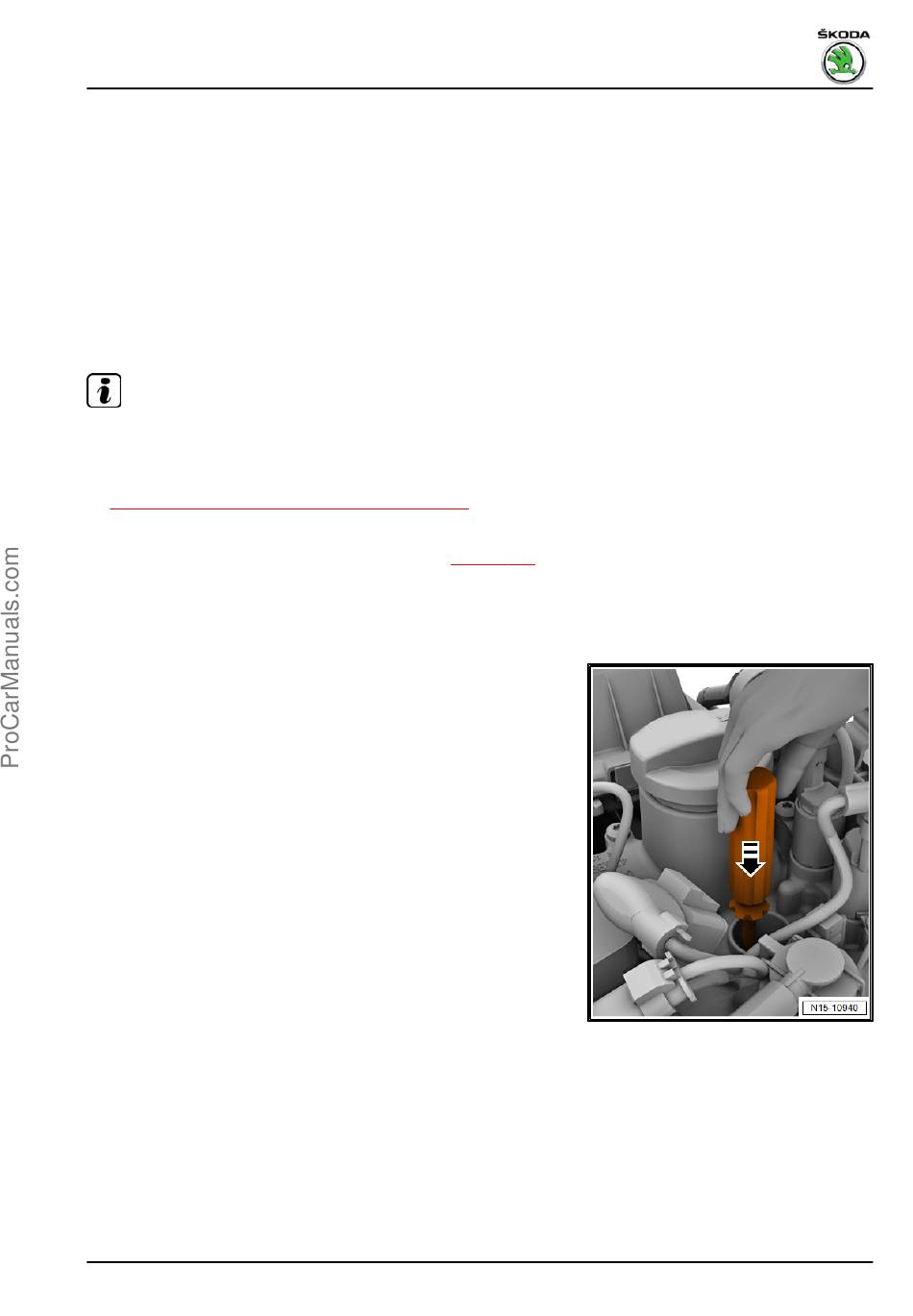

– Carefully insert a screwdriver into the opening of the ignition
plug, minimum length of shaft 250 mm, in -direction of arrow-
so that it touches the piston head.
– Rotate the crankshaft in direction of rotation of engine on
"TDC" for cylinder 1.
Octavia III 2013 ➤ , Octavia III 2014 ➤
1.2/63; 77 kW TSI engine - Edition 11.2014
.
⇒ page 282 .
