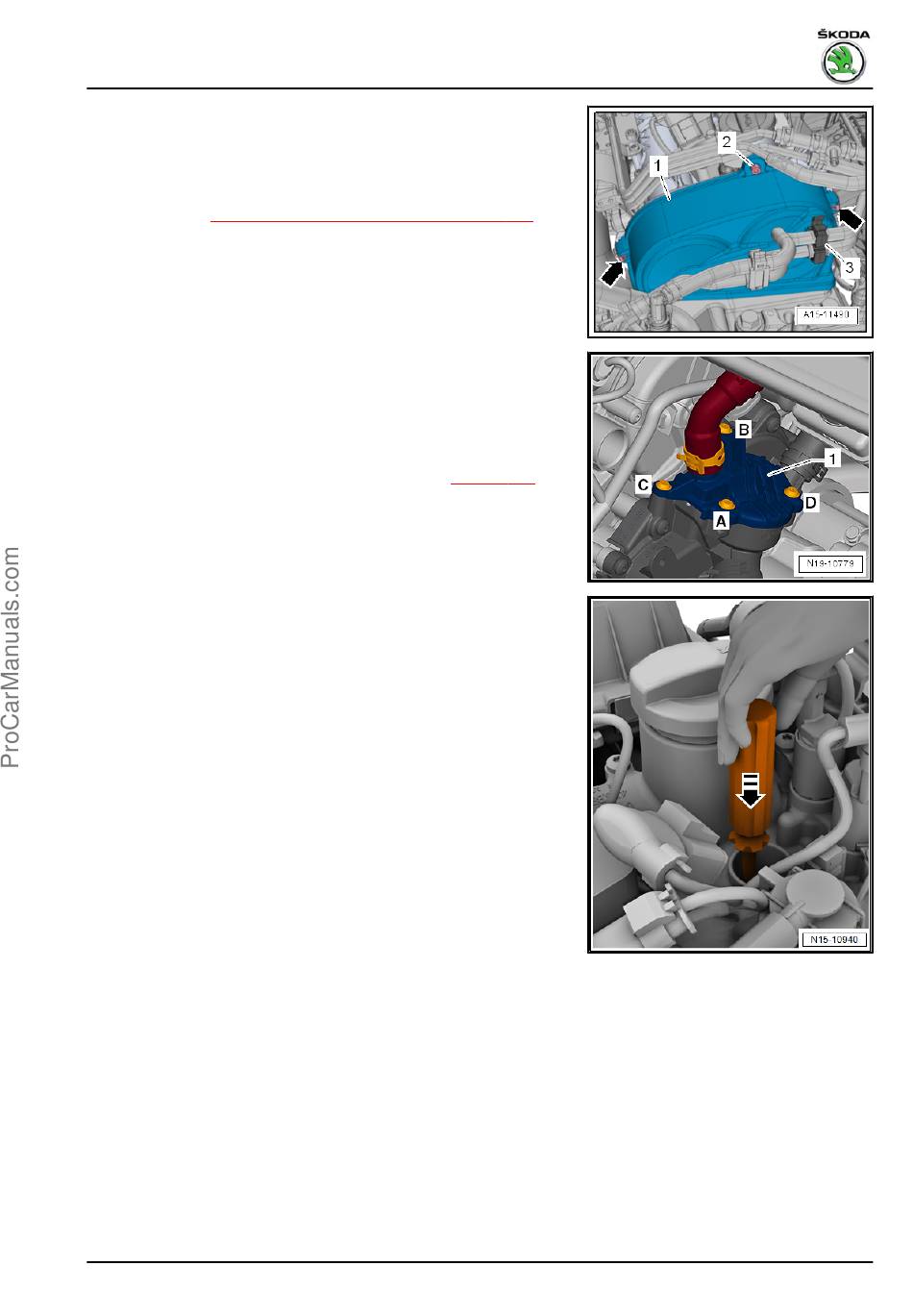

– Expose vacuum hose on the holder -3-.
– Unscrew screw -2-.
– Loosen clips -arrows- and remove toothed belt guard -1- up‐
wards.
– Drain coolant ⇒ "1.2 Draining and filling coolant", page 147
– Unscrew screws -A...D- and push thermostat cover -1- to the
side.
– Remove the sound dampening system ⇒ Body Work; Rep.
gr. 66 .
Position crankshaft to "TDC"
– Remove ignition coil with power output stage 1
– Remove ignition plug cylinder 1 with spark plug socket
wrench , e. g. -3122 B- .
Set the correct position of the crankshaft for screwing in the fixing
screw.
– Carefully insert a screwdriver into the opening of the ignition
plug, minimum length of shaft 250 mm, in -direction of arrow-
so that it touches the piston head.
– Rotate the crankshaft in direction of rotation of engine on
"TDC" for cylinder 1.
Octavia III 2013 ➤ , Octavia III 2014 ➤
1.2/63; 77 kW TSI engine - Edition 11.2014
.
⇒ page 282 .
89
2. Toothed belt drive
