Skoda Octavia III 2013 Workshop Manual page 20

Octavia III 2013 ➤ , Octavia III 2014 ➤
1.2/63; 77 kW TSI engine - Edition 11.2014

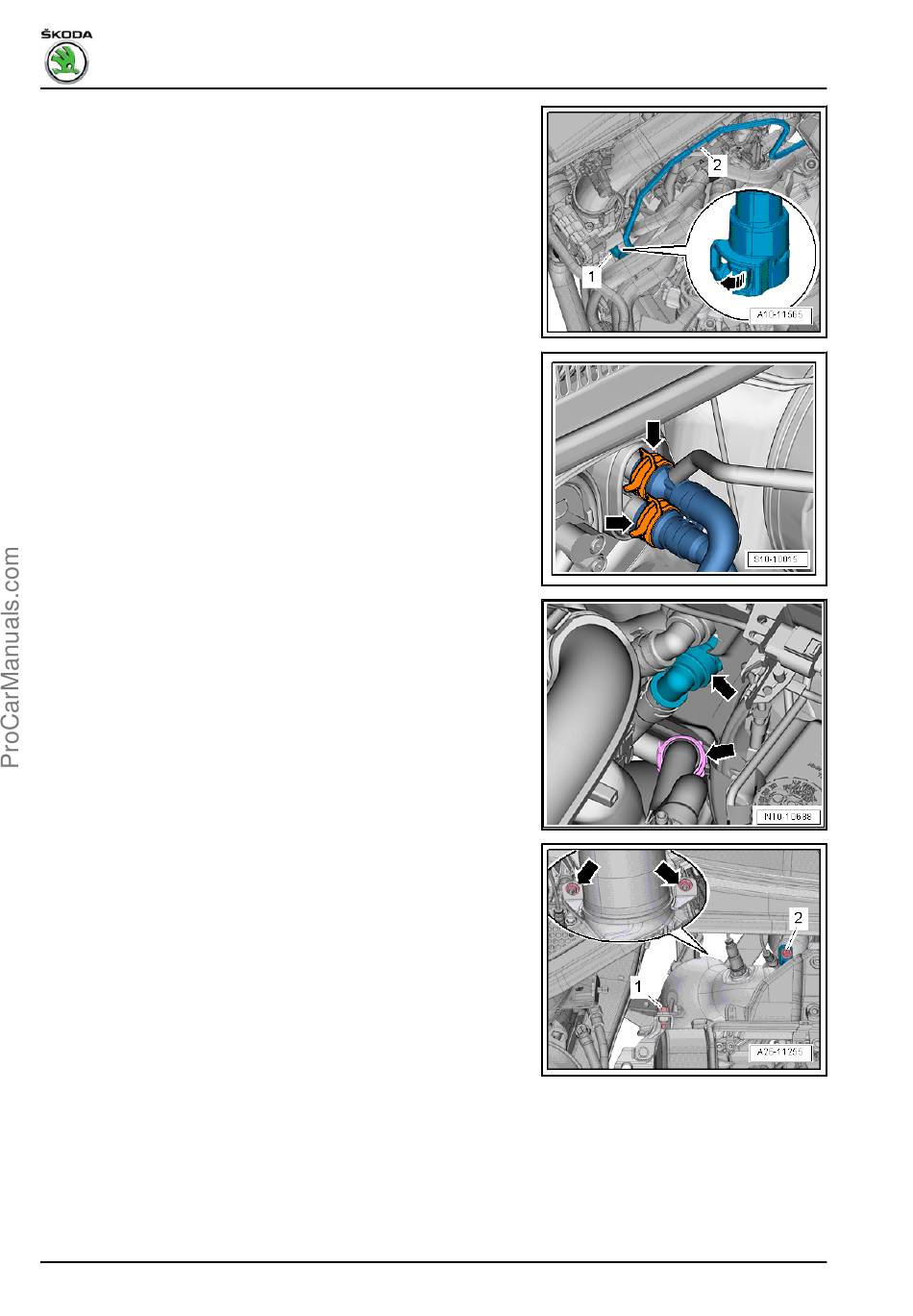

– Unlock catch -arrow- and remove vacuum hose -1-.
– Expose vacuum hose on the air guide pipe -2-.
Vehicles without auxiliary heating
– Raise holding clamps -arrows- and remove coolant hoses
from heat exchanger for heating.
Vehicles with auxiliary heating
– Loosen holding clamp and holding clamps and pull off both
coolant hoses -arrows-.
Continued for all vehicles
– Unscrew screw -2- and remove screw clamp.
– Unscrew screws -1- and nuts -arrows-, strap up catalytic con‐
verter.
