Octavia III 2013 ➤ , Octavia III 2014 ➤
1.2/63; 77 kW TSI engine - Edition 11.2014

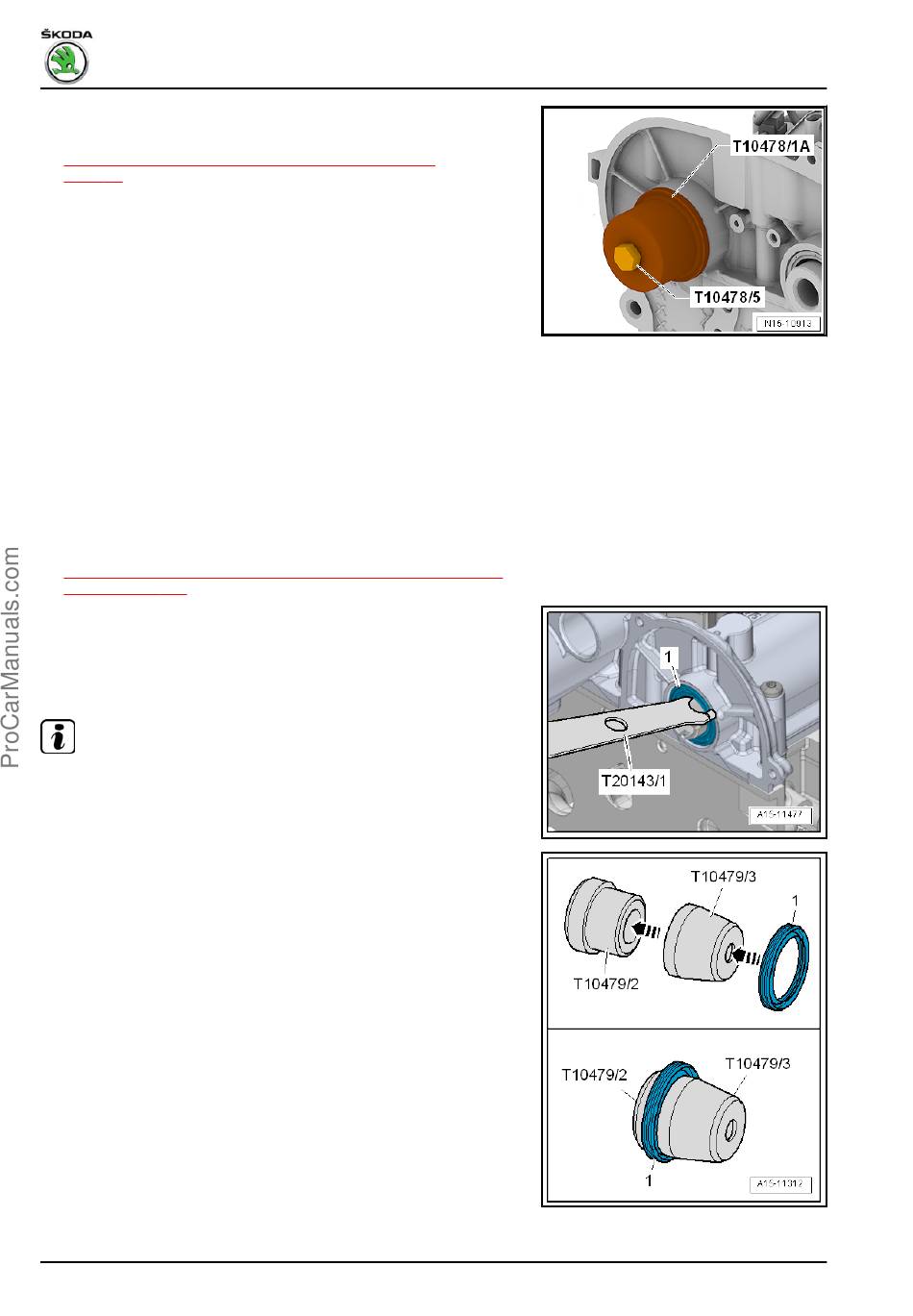

– Pull in -T10478/1A- with the screw -T10478/5- to the stop.
– install (set the timing)
⇒ "2.4 Remove the toothed belt from the camshaft",
page 86 .
3.4.3 Removing and installing the camshaft
sealing ring for exhaust camshaft on the
gearbox side
Special tools and workshop equipment required
♦ Assembly tool - T10479 A-
♦ Extraction hook - T20143/1-
Removing
– Remove toothed belt pulley for coolant pump
⇒ "2.5 Removing and installing toothed belt pulley for coolant
pump", page 162 .
– Carefully fit extractor hook -T20143/1- between camshaft and
seal -1-.
– Lever out sealing ring.
Install
Note
Do not oil new sealing ring.
– Push sealing ring -1- over the receiver tube -T10479/3- onto
the guide bushing -T10479/2- .
• Fitting position: Closed side of sealing ring points to the re‐
ceiver tube.
– Disconnect receiver tube and guide bushing.
118
Rep. gr.15 - Cylinder head, valve gear
