Octavia III 2013 ➤ , Octavia III 2014 ➤
1.2/63; 77 kW TSI engine - Edition 11.2014

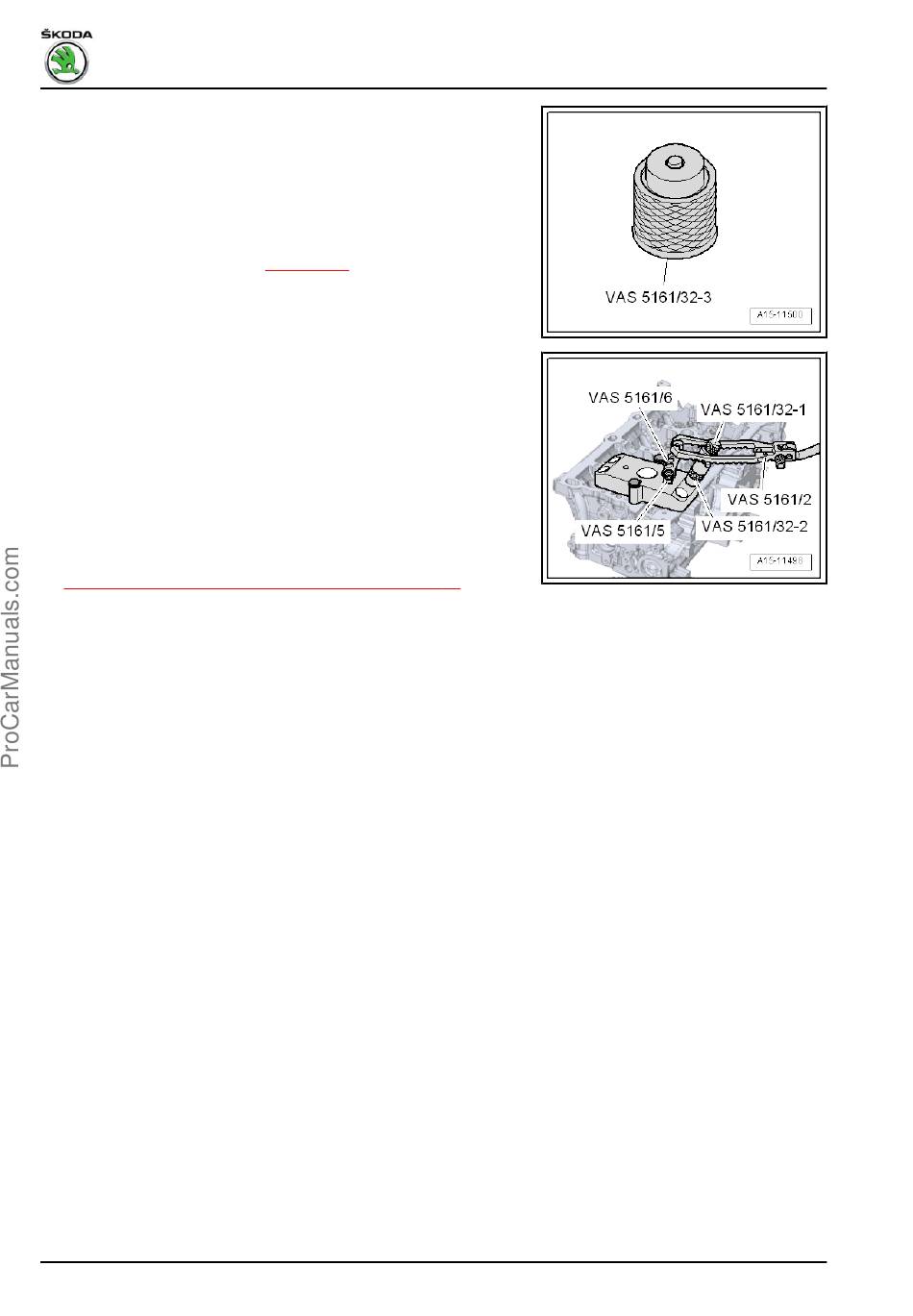

If the valve collets were removed from the assembly cartridge,
first of all they must be inserted into the device - VAS 5161A/
32-3- .
• The large diameter of the valve collets points to the top.
– Press the assembly cartridge from the top onto the device -
VAS 5161A/32-3- and lift up the valve collets.
– Insert the valve spring and the valve spring retainer, installa‐
tion position of valve spring
– Screw the guide plate -VAS 5161A/32- back onto the cylinder
head.
– Insert assembly cartridge -VAS 5161A/32-1- with sleeve -VAS
5161A/32-2- into the guide plate.
– Press down the pressure fork and turn the knurled screw to
the left and to the right while pulling it upwards, by doing so
the valve collets are inserted.
– Release the pressure fork on tightened knurled screw.
– Repeat the procedure for each valve.
– Install cylinder head
⇒ "1.3 Removing and installing cylinder head", page 69
124
Rep. gr.15 - Cylinder head, valve gear
⇒ page 114 .
.
