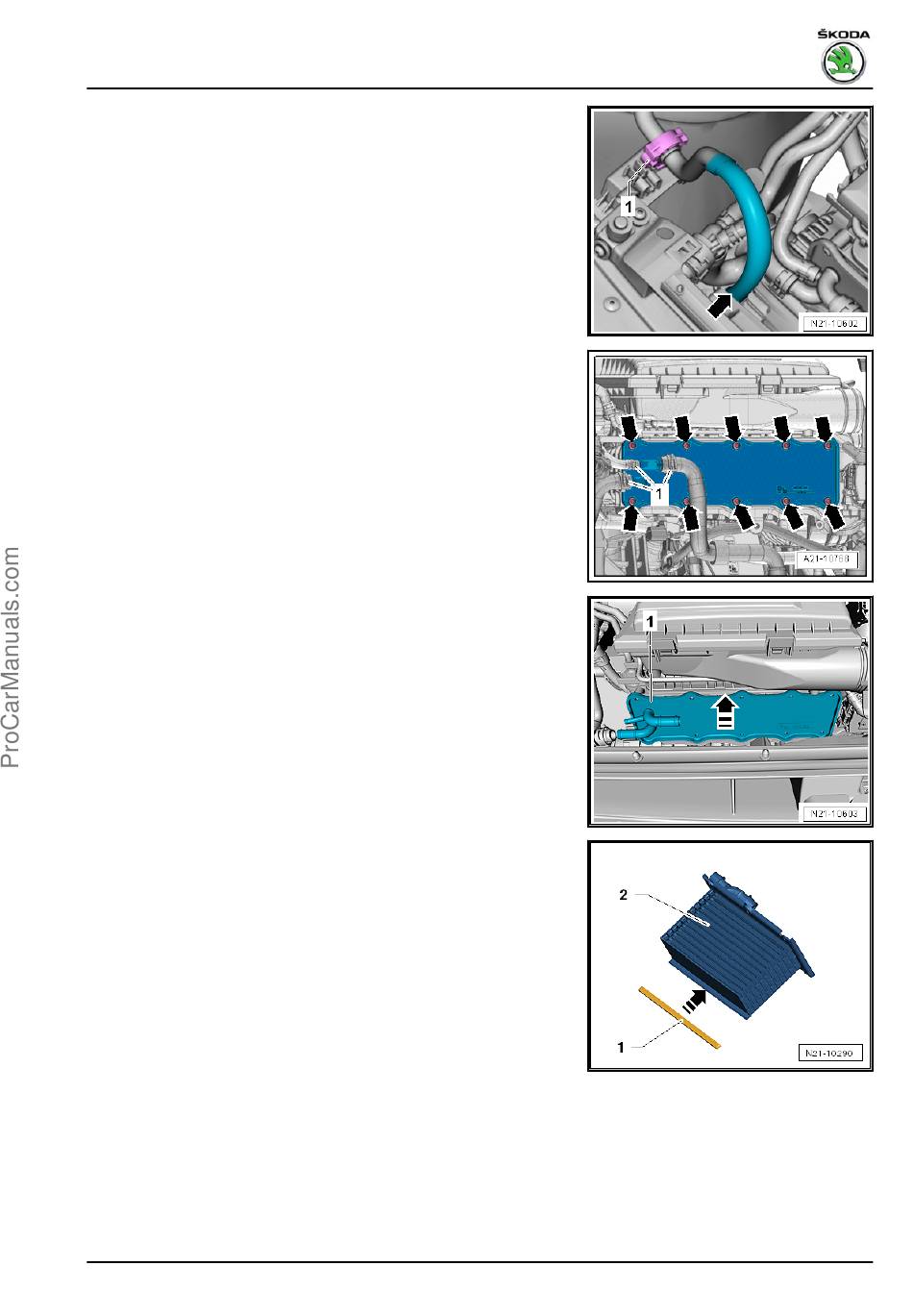

– Open the clamp -1- and push hose -arrow- to the side.
– Loosen hose clamps -1- and remove coolant hoses.
– Release screws -arrows- and remove charge air cooler.
– Pull charge air cooler -1- backwards and forwards simultane‐
ously in -direction of the arrow- out of the intake manifold.
Install
Installation is carried out in the reverse order. When installing,
observe the following:
– Fit sealing strip -1- in -direction of the arrow- to the charge air
cooler -2-.
– Insert new gasket into the groove at the intake manifold.
Octavia III 2013 ➤ , Octavia III 2014 ➤
1.2/63; 77 kW TSI engine - Edition 11.2014
231
2. Charge-air system
