16.5.2 Opening

Use the Opening profile graph to monitor and configure the valve stem open motion profile.
Duration
Peak Force

16.6 Servo I/O Screen

Use the Servo I/O screen to view the status and setup the digital inputs, digital outputs,
configurable signals and safety signals that run between the UltraSync-E controller and IMM.
On the Home screen, touch the Servo I/O button.

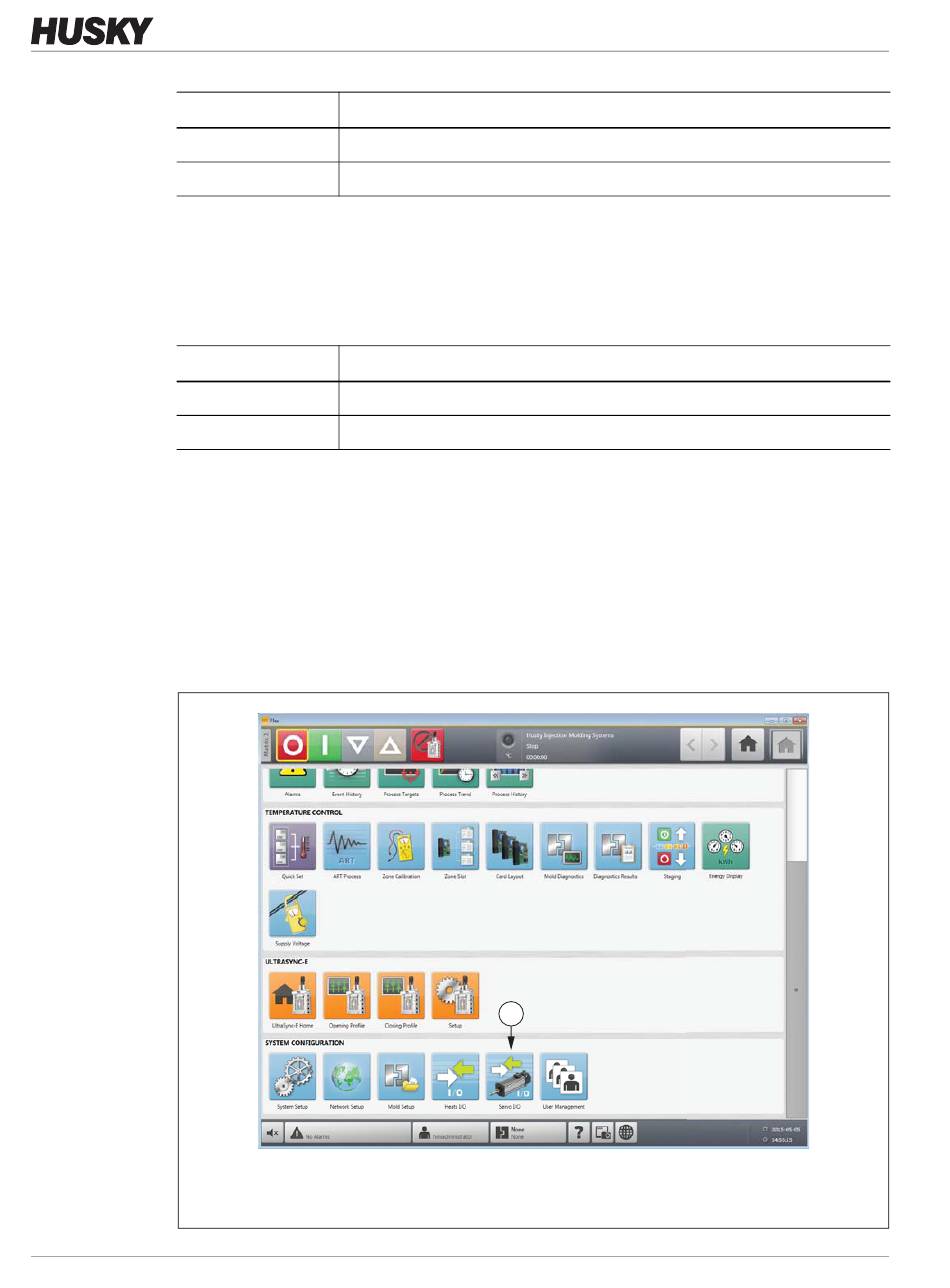

Figure 16-9 Servo I/O Screen
1. Servo I/O Icon Button
204
v 1.1 — July 2015
Item
The elapsed time of the last valve stem close motion.
The peak force recorded during the last valve stem close motion.
Item
The elapsed time of the last valve stem open motion.
The peak force recorded during the last valve stem open motion.
Description
Description
1 1
