Force Temperature Units To Option; Data Collection - Husky Altanium Matrix2 User Manual

User Guide

10.1.1 Force Temperature Units To Option

Users can select how the available temperature units are displayed using the Force
Temperature Units To option: Degrees Celsius (C), degrees Fahrenheit (F), or degrees kelvin
(K).
When C, F or K is selected, all temperature units in the system will be forced to be displayed
in the respective unit, including all stored mold setups. If a dash is shown, then the user may
select any of the temperature unit choices in the units dialog.
To select the temperature units of measure, do the following:
1.
2.

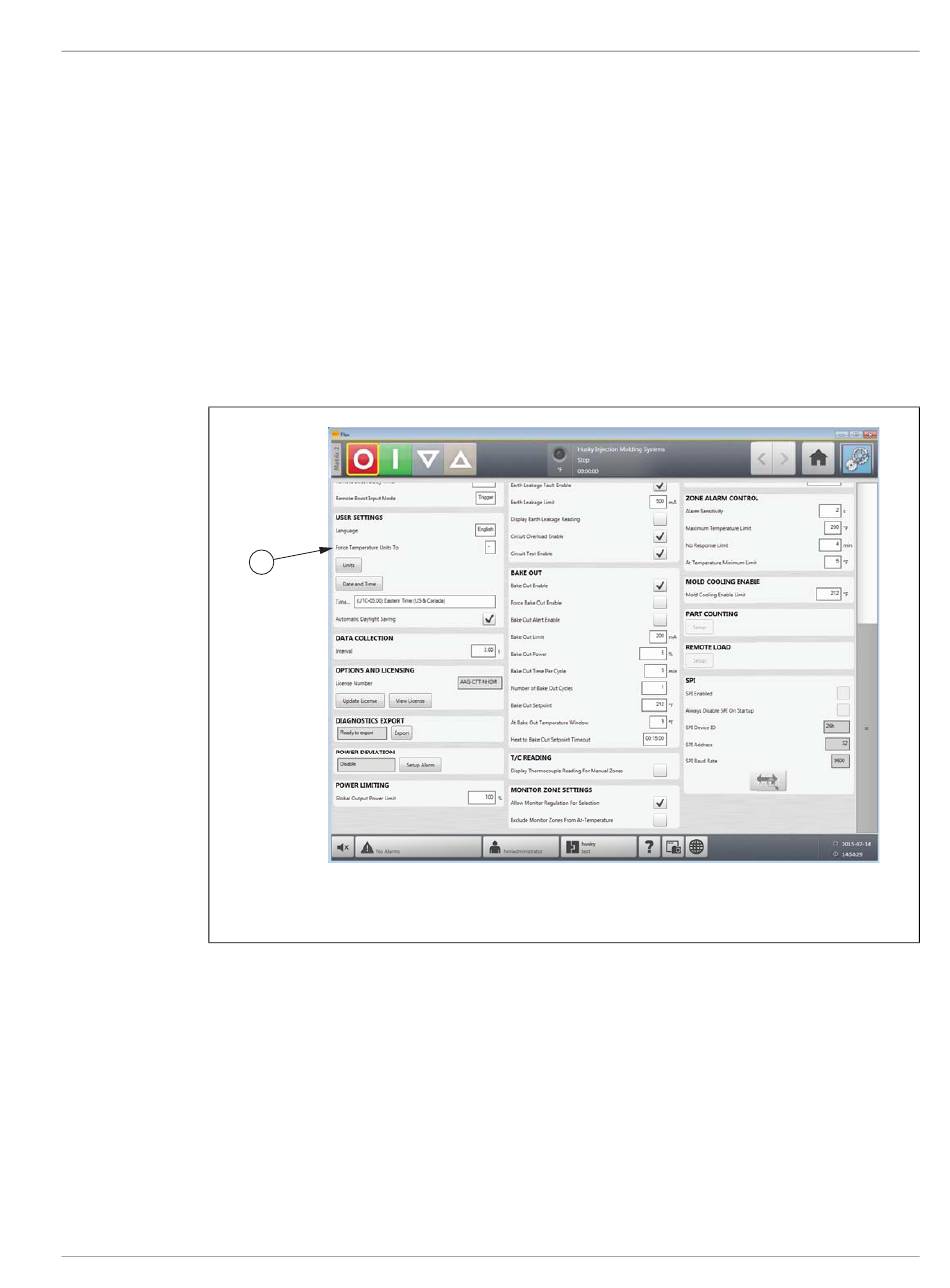

Figure 10-2 System Setup Screen - User Settings
1. Force Temperature Units To Button

10.1.2 Data Collection

Users can specify how often process data will be sampled.
To select the interval to sample process data, do the following:
1.
2.
3.
Force Temperature Units To Option
On the System Setup screen, under User Settings, touch the Force Temperature
Units To button.
Select the desired unit.
1 1
On the System Setup screen, under Data Collection, touch the Interval button.
Enter the desired time interval in seconds.
Touch the Accept button.
v 1.1 — July 2015 System Setup Screen
113
