Husky Altanium Matrix2 User Manual page 195

User Guide
IMPORTANT!
A minimum of 2 people are required to perform this procedure.
2.

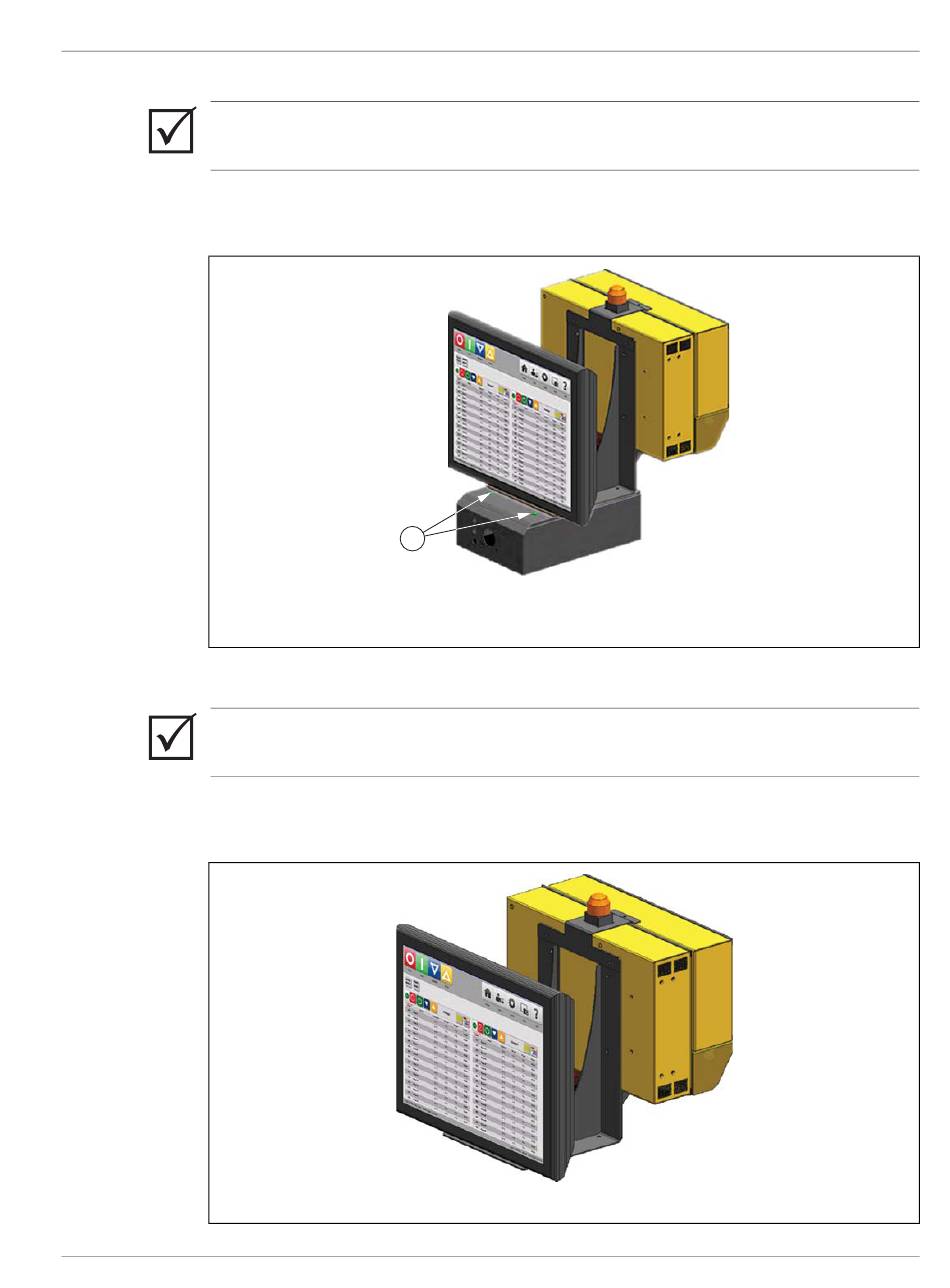

Figure 15-9 Disconnecting the Altanium Interface Plate from the Mainframe
1. Button Head Cap Screws, Front
3.
IMPORTANT!
Make sure to support the display module when disconnecting the interface plate.
4.
Figure 15-10 Altanium Display Module Removed from the Mainframe
Disconnecting the Display Module
Facing the front of the controller, locate the four 1/4 inch-20 button head cap screws
that hold the Altanium interface plate to the mainframe.
1
Remove the four screws using the 5/32 inch hex wrench provided with the controller.
Disconnect the interface plate from the mainframe. Place the interface plate on a flat
surface.
v 1.1 — July 2015 Maintenance
183
