Husky Altanium Matrix2 User Manual page 64

Table 6-1
File Tree
Molds Folder
System Folder
Users Folder
Table 6-2
52
v 1.1 — July 2015
Mold Setup Screen Item Descriptions
Item
The local drive holds all stored data contained within the Mold Setup
screen. To assist in better organizing and storing files, there are three root
directories included by default. They are the mold folder, system folder and
users folder.
USB storage devices and network folders are displayed by default on the
right, when connected to the system.
The molds folder is used to manage files associated with a given Mold by
storing them in a user defined sub folder. Touch the molds folder to display
the sub folders. Touch each sub folder to display the mold setup files,
images and PDF documents contained in the sub folder. The default folder
is located within this directory and contains the master mold file that
contains the factory default settings.
Touch the system folder to display all reports and documents contained
within the selected system folder.
Touch the users folder to display files associated with a given operator.

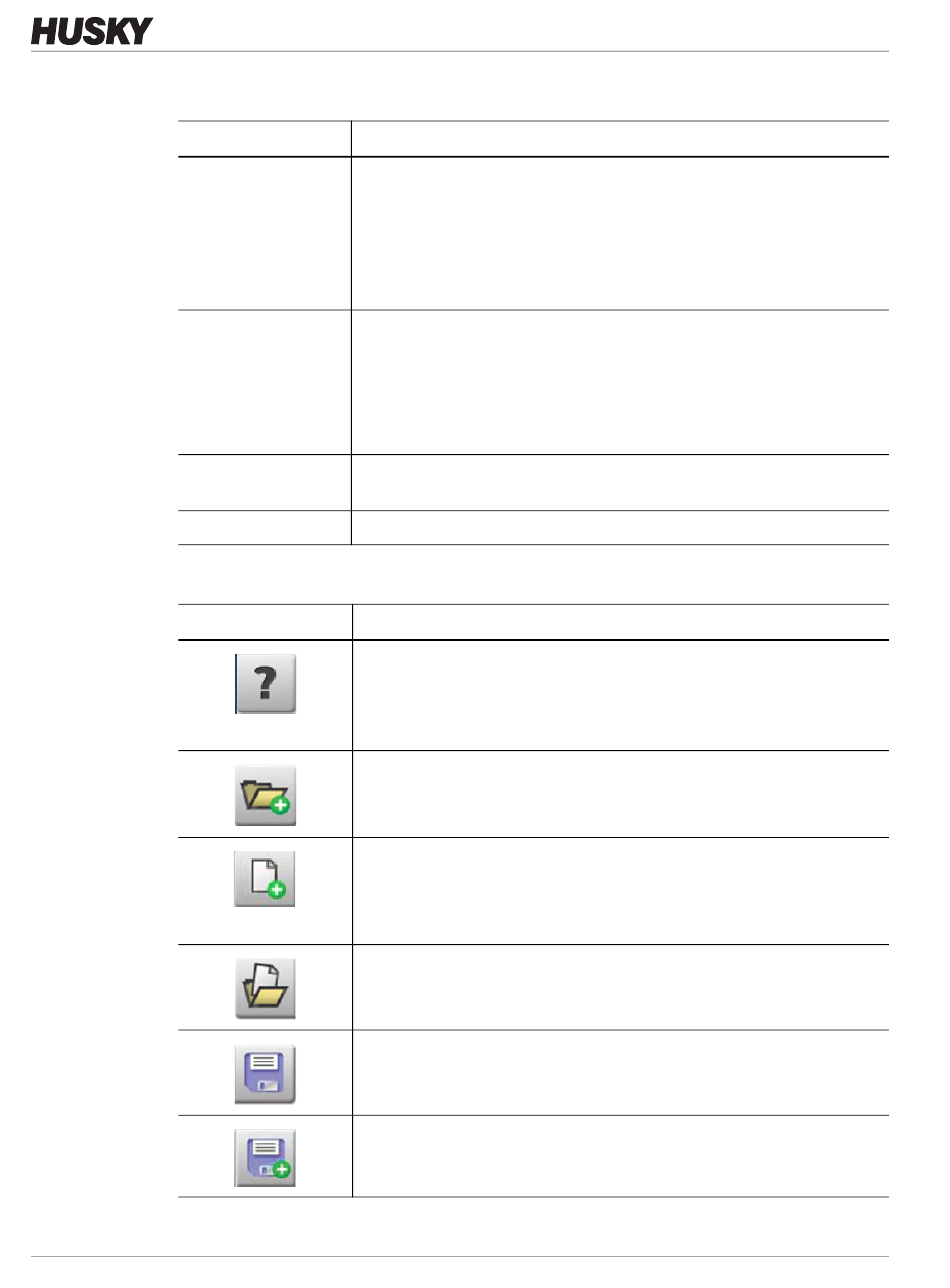

Mold Setup Screen Button Descriptions
Button
Touch the Help button for a description of the mold setup icons.
Touch the New Folder button to create a new tool (mold) subfolder in the
Molds main folder.
Touch the New Mold Setup button to create a new mold setup file. All
new mold setup files are created based on the settings contained in the
Default mold setup file. This button is not enabled unless a mold folder is
selected.
Touch the Load Mold Setup button to load a mold setup file. This button
is not enabled unless a mold setup file is selected. The Default setup file
cannot be loaded directly.
Touch the Save Changes button to permanently save all changes to the
currently loaded mold setup file. This action only pertains to the loaded
mold setup file regardless of what is selected on the screen.
Touch the Save As button to save the currently loaded mold setup file
with a new name. This action only pertains to the loaded mold setup file
regardless of what is selected on the screen.
Description
Description
Altanium Matrix2
Mold Setup Screen
