12.2.1 Curve Data Point

For a description of the data at a particular point on the graph, touch the desired point on the
graph.

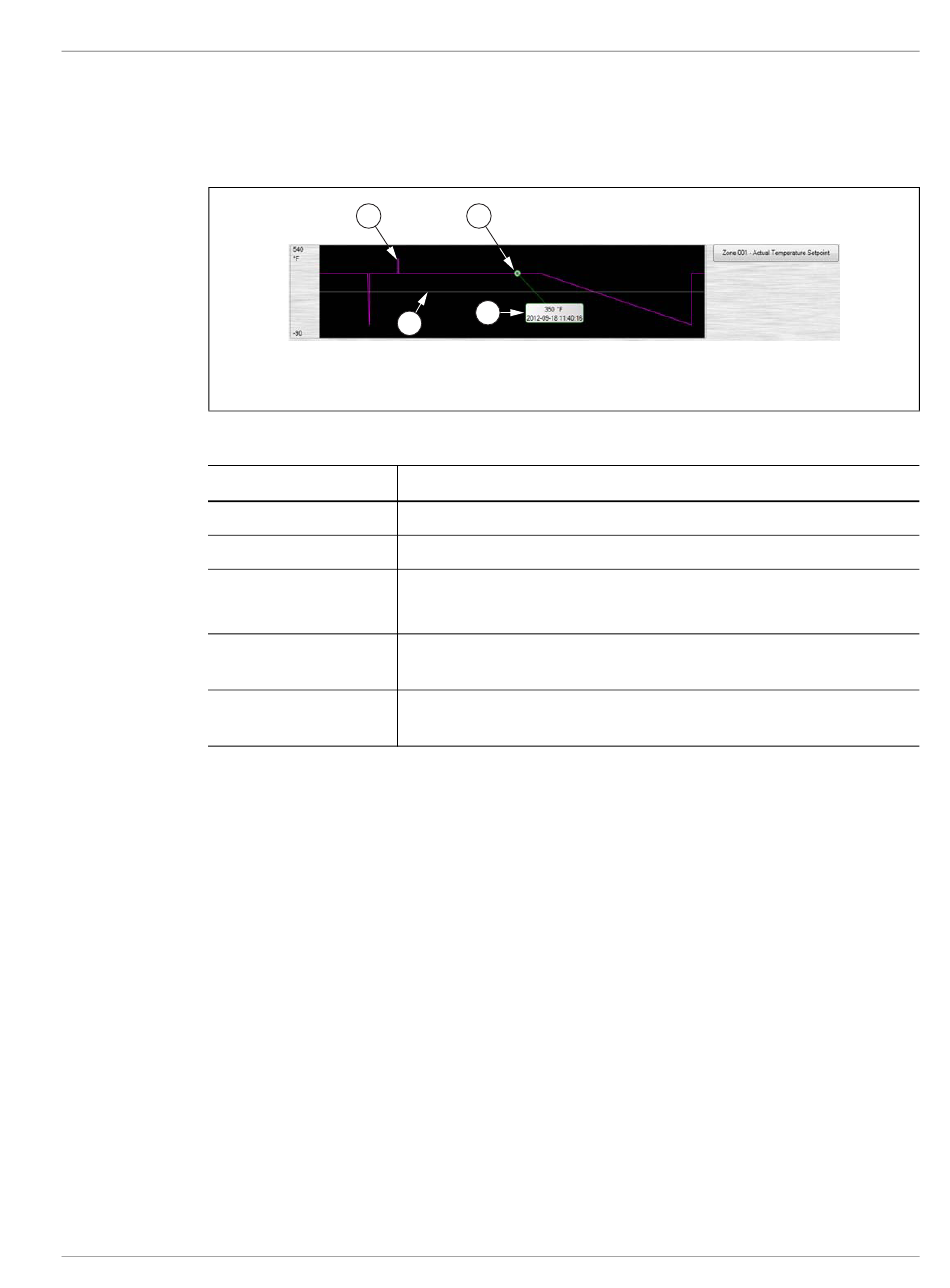

Figure 12-4 Process History Screen
1. Curve 2. Curve Data Point 3. Midline 4. Description of Data
Table 12-3 Process History Screen Curve Data Descriptions
Screen Element
Curve
Curve Data Point
Midline
Variable Selection
Button
Value

12.2.2 Setting the Timeframe

Select the desired timeframe for the curves as 1, 2, 4, 8, or 12 hours. The default timeframe is
four hours.
Changing the timeframe will automatically update the new starting date and time range. The
old date and time range will not change.
To change the timeframe, do the following:
1.
Curve Data Point
1
3
Graphical representation of data values.
Currently selected data value.
The midline is the middle value of the curve.
For example, (540 + (-90)) / 2 = 225).
Touch the button to select any of the process parameters to view.
X Axis value reflects the value of the parameter selected at a specific
moment in time.
On the Process History screen, touch the Timeframe field.
