Table 7-1
Config Button
Scroll Bar
Select All
Clear All
The Graphical View screen displays a maximum of 90 zones of information in split screen
mode and 60 zones in full screen mode. Touch and drag the scroll bar to bring additional
zones into view. The system always displays up to 60 or 90 zones at one time, depending on
the screen mode.

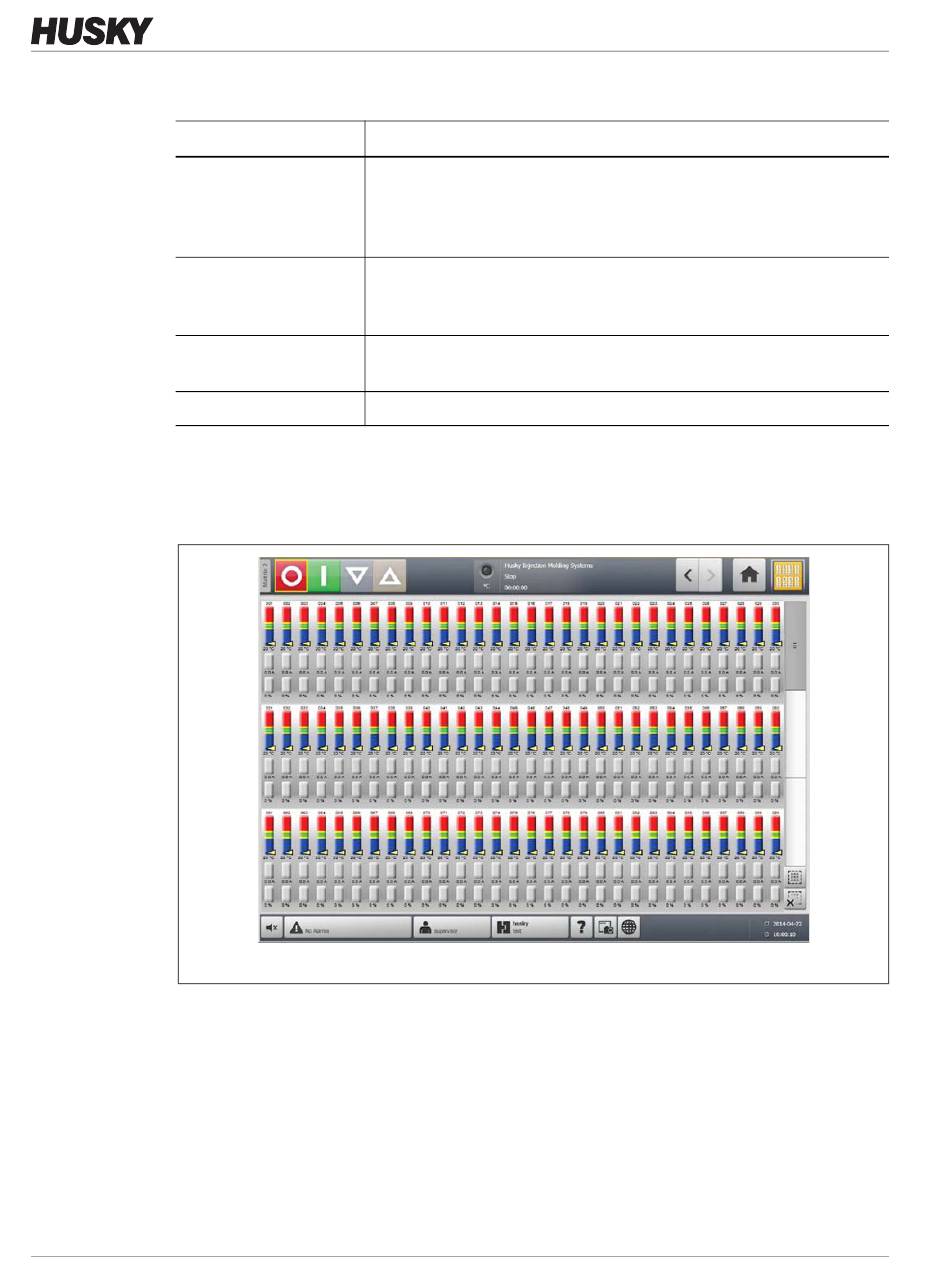

Figure 7-4 Graphical View Screen - Full Screen Mode
62
v 1.1 — July 2015
Graphical View Screen Button Descriptions
Button
Touch this button to toggle between displaying zones in split or full
screen mode. In split screen mode, zone graphs are displayed in two
groups, one on the top and one on the bottom. In full screen mode the
zone graphs take up the whole viewing area.
Use the scroll bar to scroll between pages within a screen. If all of the
available data fits with in a single page, then the scroll bar will not be
displayed
Touch this button to select all zones in the system. This will navigate to
the Quick Set screen
Touch this button to clear all zone selections
Description
Graphical View Screen Overview
Altanium Matrix2
