8.1.3 Setting the Maximum Test Time

On some molds, if there is a thermocouple wiring problem, a heater could be damaged during
test. Specifically, some heaters in some configurations may not support the peak temperatures
reached when full power is applied for the default test time. An extreme example is testing a
hot runner without the cavity plate in position. If the heater is large, a short test time may not
be long enough to heat up and result in a failed test. Operators can set the maximum test
time for each zone to accommodate different types of heaters.
To set the maximum test time, do the following:
1.
2.
3.
4.
NOTE:
8.2

Diagnostics Results

To review the diagnostic test results, do the following:
On the Home screen, touch the Diagnostics Results button to open the Test Results
screen.

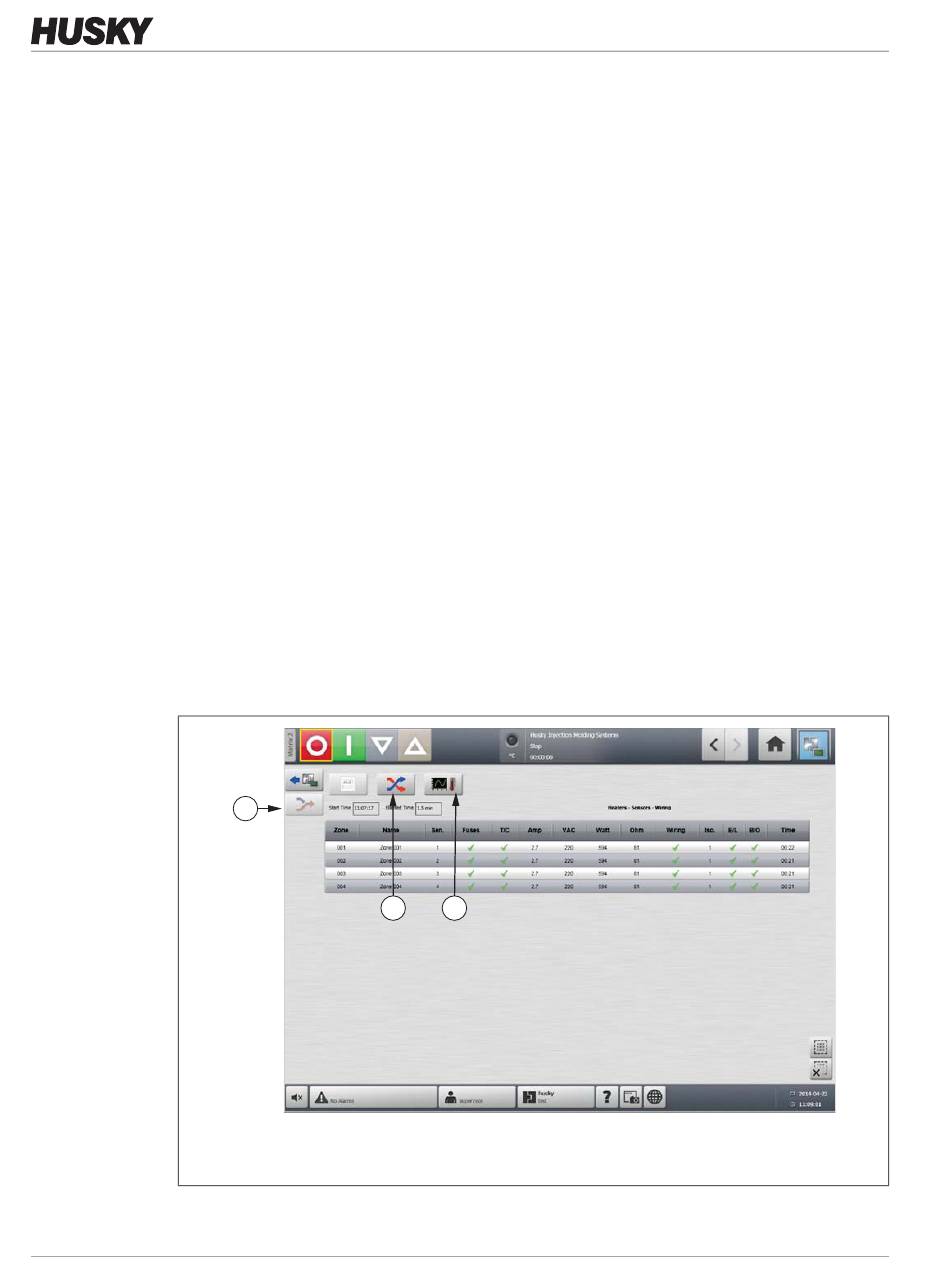

Figure 8-2 Test Results Screen
1. Rewire 2. Cross-Talk 3. Temperature Graphs
88
On the Mold Diagnostics screen, select the zone(s) to change.
Touch the Maximum Test Time field.
Enter the maximum test time in the format displayed (HHMMSS).
Touch the Accept button.
The default setting is 2 minutes. Each mold setup can have its own set of maximum
test times.
