10.1.15 Remote Load

Mold setups can be loaded directly from the injection molding machine. Using the Remote
Load option, the injection molding machine can signal the controller on one of up to 1023
input combinations to indicate which mold setup to load. The system uses combinations of:
•
•
•

10.1.15.1 Setting Up Remote Load

To set up Remote Load, do the following:
1.

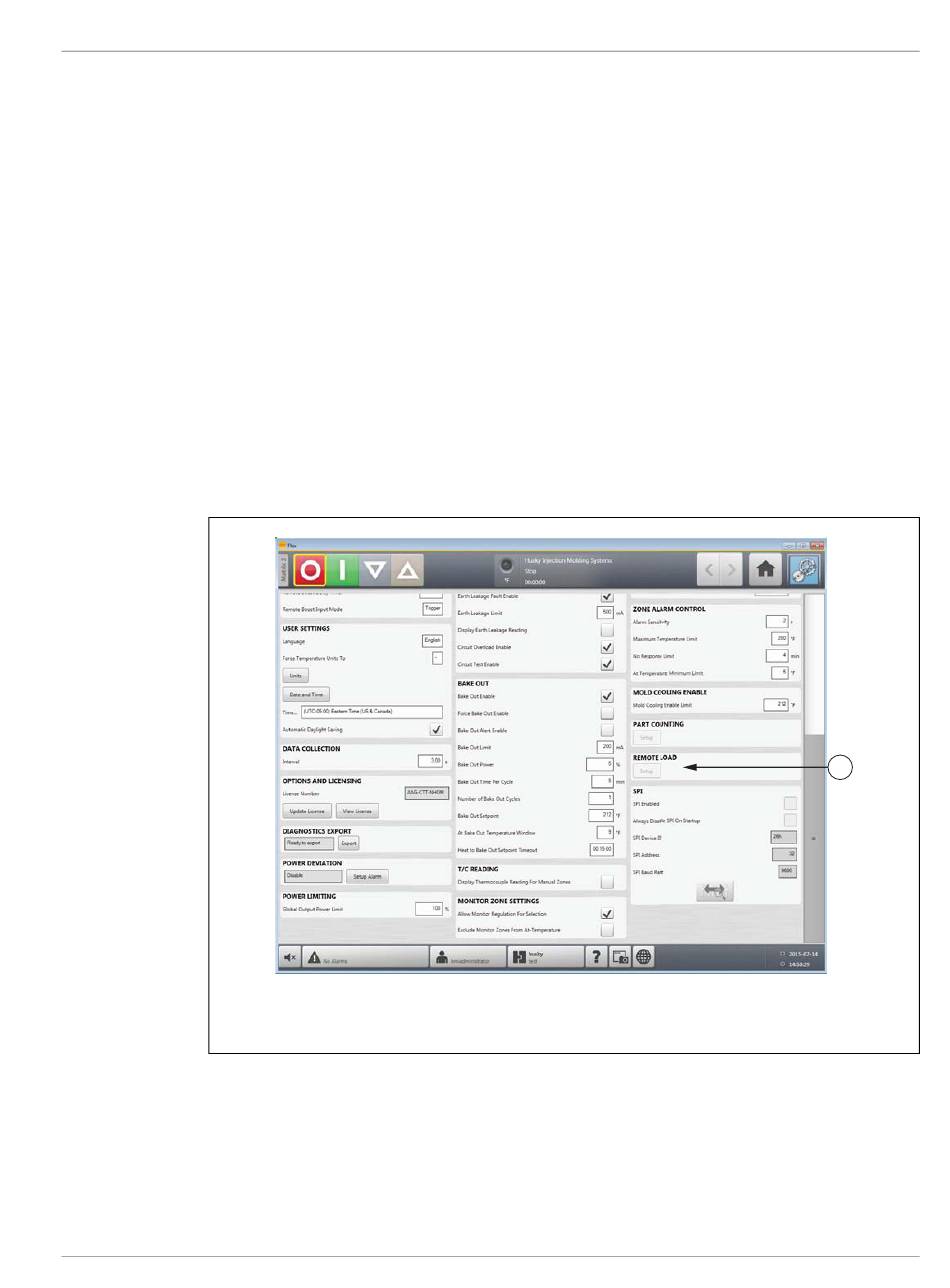

Figure 10-13 System Setup Screen - Remote Load
1. Remote Load Button
Remote Load
Six binary inputs, allowing the user to assign a mold setup to each one of 63 possible
combinations.
Eight binary inputs, allowing the user to assign a mold setup to each one of 255 possible
combinations.
Ten binary inputs, allowing the user to assign a mold setup to each one of 1023 possible
combinations.
On the System Setup screen, under Remote Load, select Setup. A Remote Load Setup
dialog box appears.
v 1.1 — July 2015 System Setup Screen
