10.1.10 Power Limiting

Power Limiting is used to control the maximum output power delivered to each zone. The
output power limit for each zone can be set from 0% to the Global Output Power Limit value.
If the Global Output Power Limit value is adjusted lower than the zone setting then the
power limit for each zone is automatically trimmed by the system to not exceed the global
value.
To set the global output power limit, do the following:
1.
2.
3.

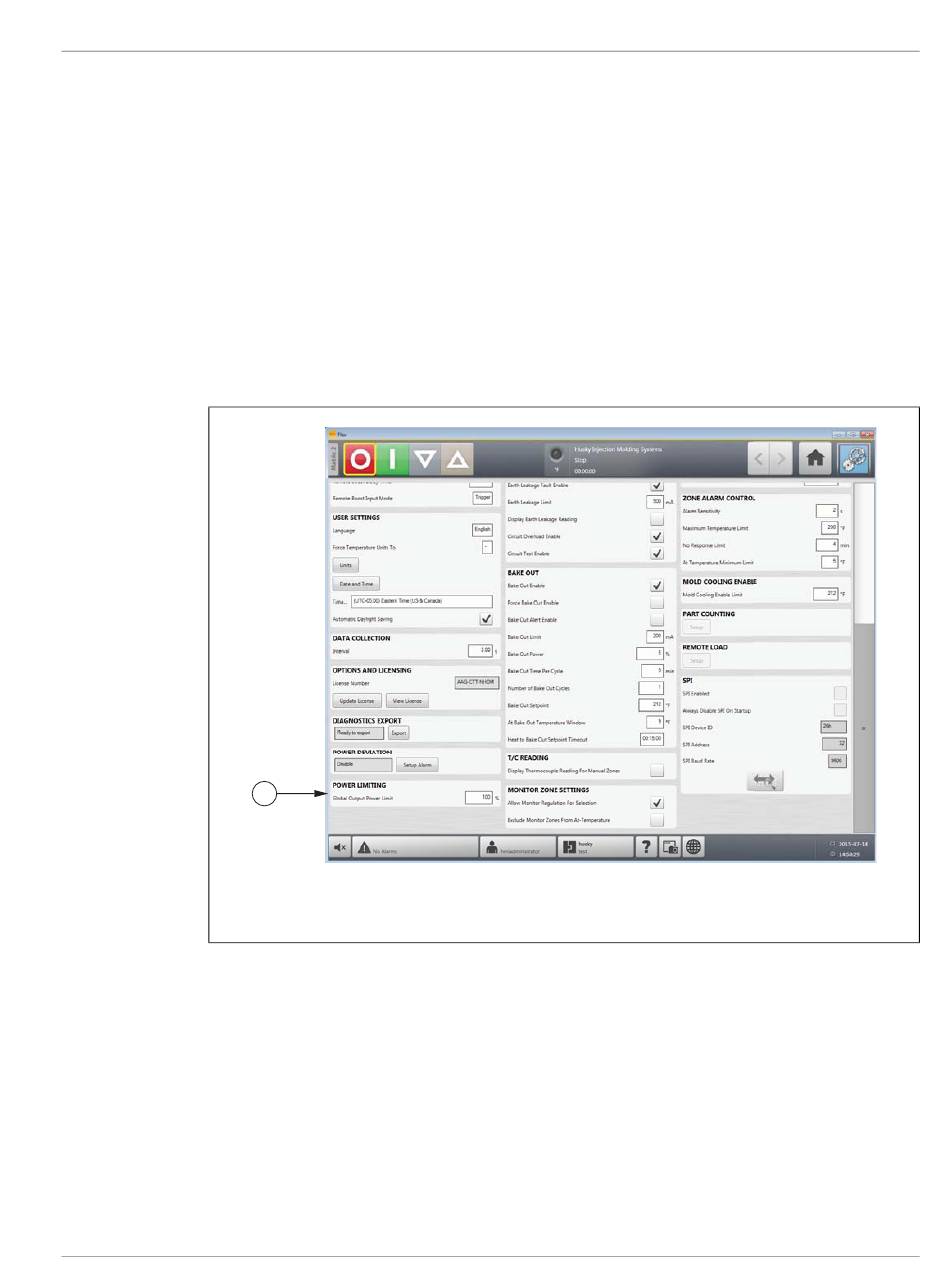

Figure 10-6 System Setup Screen - Power Limiting
1. Power Limiting Area

10.1.11 Monitor Zone Settings

Allow Monitor Regulation For Selection - This parameter allows the user to change the
regulation mode to 'Monitor' for any zones in the Quick Set screen. If a zone is already in
'Monitor' regulation when this parameter is de-selected, the system will automatically
change the regulation mode to 'Automatic'.
Exclude Monitor Zones From At-Temperature - This parameter allows the user to exclude
any zones set to 'Monitor' regulation from the at-temperature determination by the system.
By default monitor zones are included in the at-temperature determination.
Power Limiting
On the System Setup screen, under Power Limiting, touch the Global Output Power
Limit field.
Enter the desired limit.
Touch the Accept button.
1 1
