11.2 Using the Mold Picture View Toolbar

Use the Mold Picture View toolbar to change the view of the mold picture view graphic. To
hide/show the Mold Picture View toolbar, touch the screen.
NOTE:

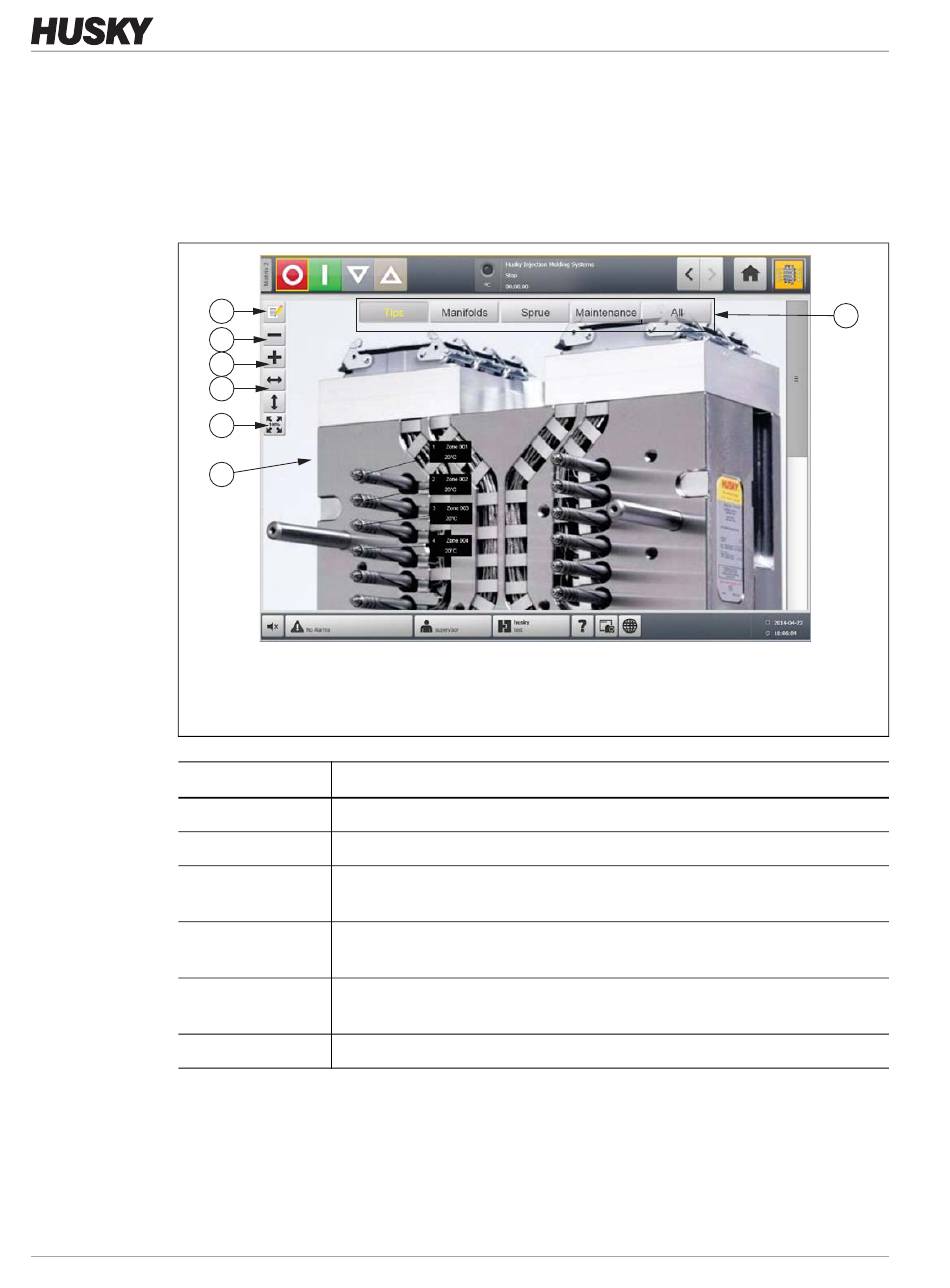

Figure 11-4 Mold Picture View Screen
1. Zoom Out Button 2. Zoom In Button 3. Fit Width Button 4. Fit Height Button 5. Original
Size Button 6. Mold Picture View Graphic 7. Views
Toolbar Button
Zoom Out Button
Zoom In Button
Fit Width Button
Fit Height Button
Original Size
Button
Views
144
v 1.1 — July 2015
The Mold Picture View toolbar is not available in Edit mode.
1
2
3
4
5
6
Definition
Demagnifies the mold picture view graphic.
Magnifies the mold picture view graphic.
Fits the mold picture view graphic to the widest width possible while
retaining the entire graphic on the screen.
Fits the mold picture view graphic to the tallest height possible while
retaining the entire graphic on the screen.
Fits the mold picture view graphic to the default size.
Selects the mold picture view graphic associated with that view.
Altanium Matrix2
Using the Mold Picture View Toolbar
