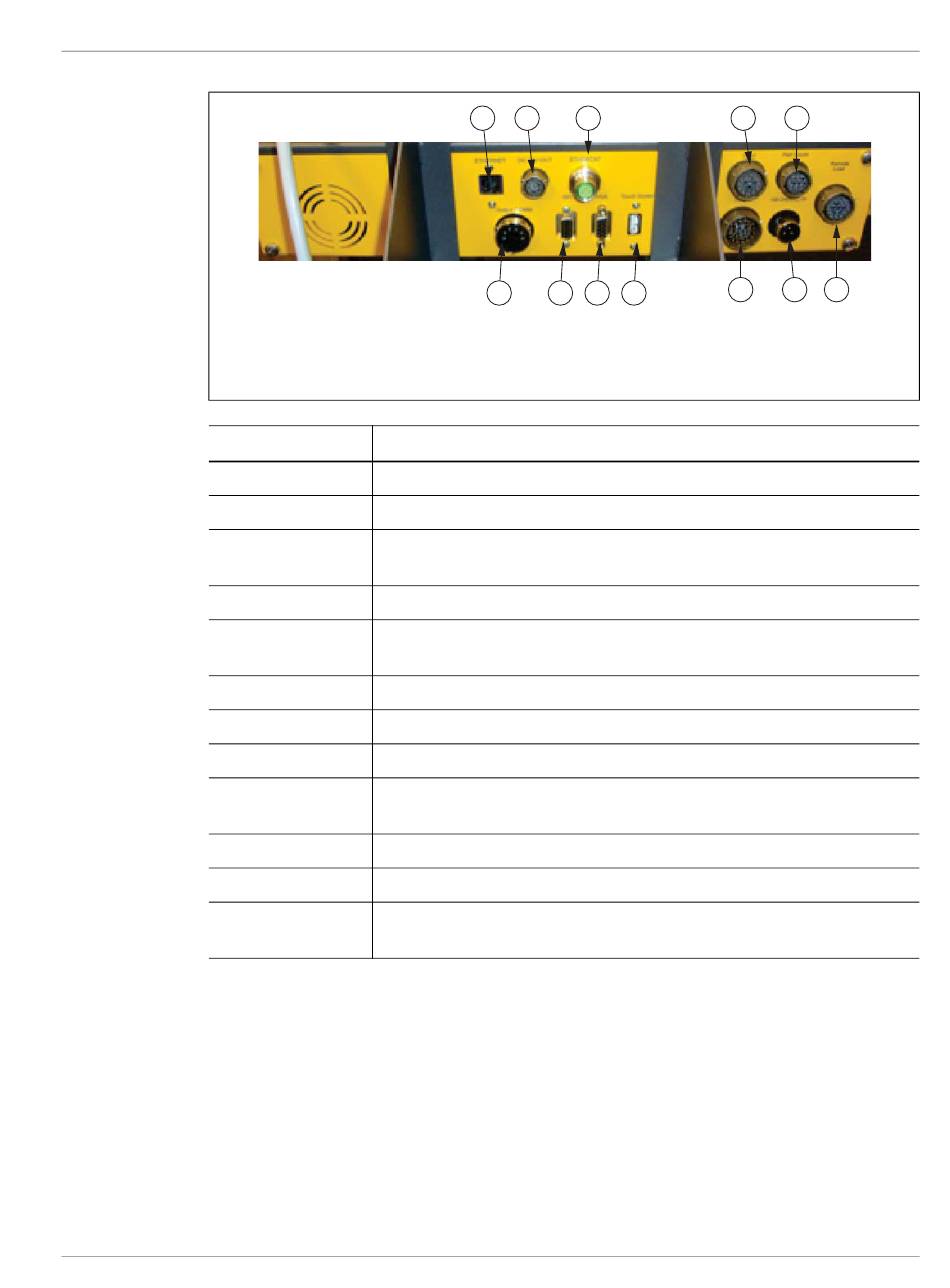

Figure 13-2 Matrix2 Connector Gland Plate, Typical
1. Ethernet 2. DC 24V Out 3. EtherCAT 4. Input 5. Part Count 6. Output COMM 7. SPI
8. VGA 9. Touch Screen 10. Output 11. 100-240VAC In 12. Remote Load
Cable Connection
Ethernet
DC 24V Out
EtherCAT, if
equipped
Input
Part Count, if
equipped
Output COMM
SPI, if equipped
VGA
Touch Screen
100-240VAC In
Output
Remote Load, if
equipped
13.3 Input/Output Connector Pin-Out Description
Below is the connection detail for all of the optional Inputs and Outputs. Inputs are active
High (24 VDC). All outputs are relay dry contact type.
Input/Output Connector Pin-Out Description
v 1.1 — July 2015
1
2
6
7
User interface to customer networks.
Option, for future use
Communication to UltraSyncE Gen2 system.
Configurable digital inputs.
Part count option signals.
CANBus communication to Altanium mainframe.
SPI communication protocol.
Video output connection to the touch screen monitor
Touch screen communication input connection from the touch screen
monitor
Main AC power from the Altanium mainframe.
Configurable digital outputs.
Remote mold setup option signals.
3
4
10
8
9
Description
System Options
5
11
12
