Options And Licensing - Husky Altanium Matrix2 User Manual

To select the monitor zone settings, do the following:
1.
2.

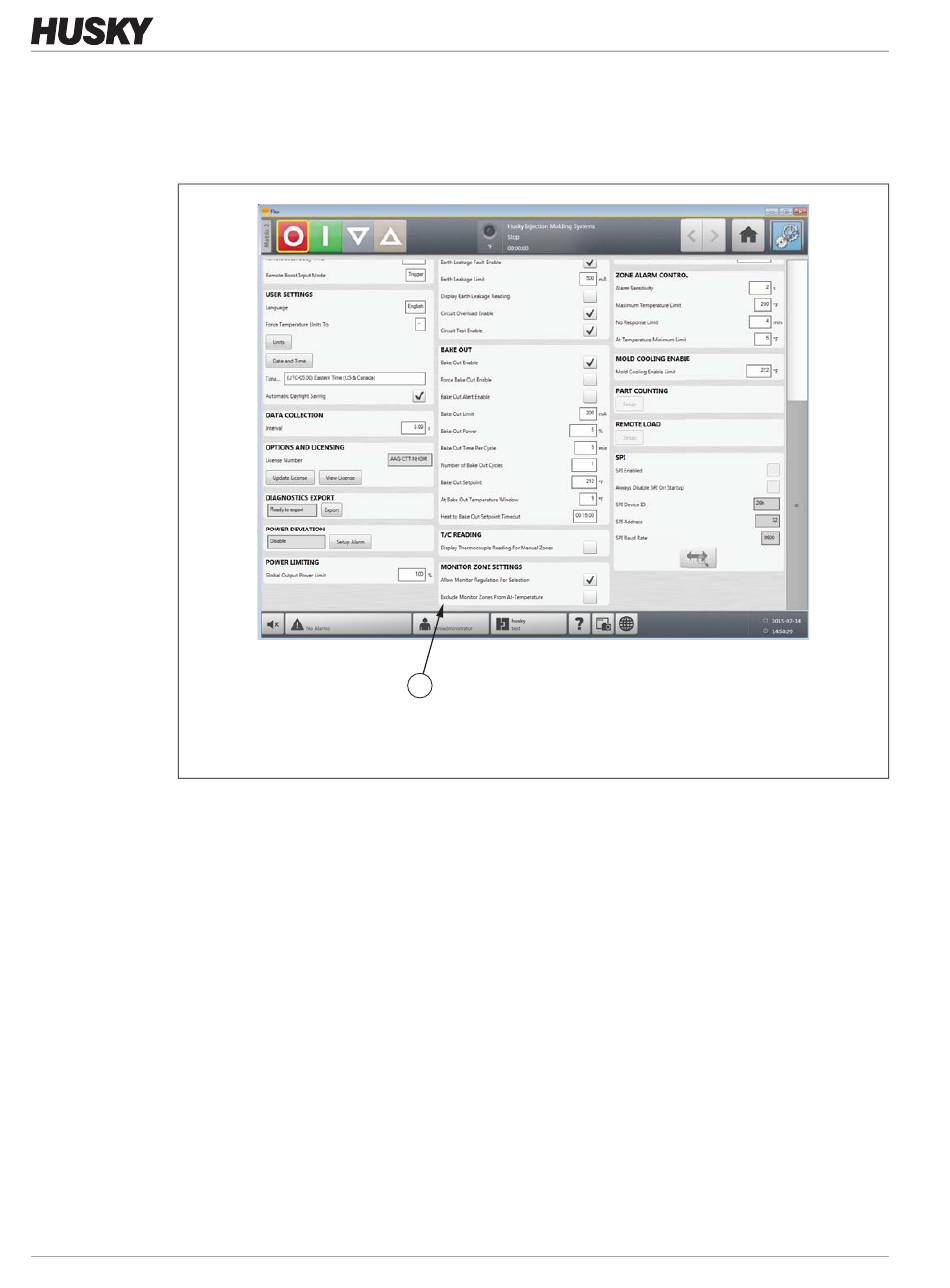

Figure 10-7 System setup Screen - Monitor Zone Settings
1. Monitor Zone Settings Area

10.1.12 Options and Licensing

Users receive a factory-set license key which contains licensing information. Four user-
selectable options are included with each controller via the Digital I/O screen. For
information on configuring options, refer to
Users can purchase additional options such as 8 I/Os, All I/Os, Remote Load, Part Count and
SPI interface by contacting Husky for an electronic license file.
To view existing licensing information, do the following:
1.
2.
124
On the System Setup screen, under Monitor Zone Settings, select the desired field(s).
Touch the Accept button.
On the System Setup screen, under Options and Licensing, select View License.
A View License dialog box appears.
v 1.1 — July 2015
1 1
Section 13.1.
Options and Licensing
Altanium Matrix2
