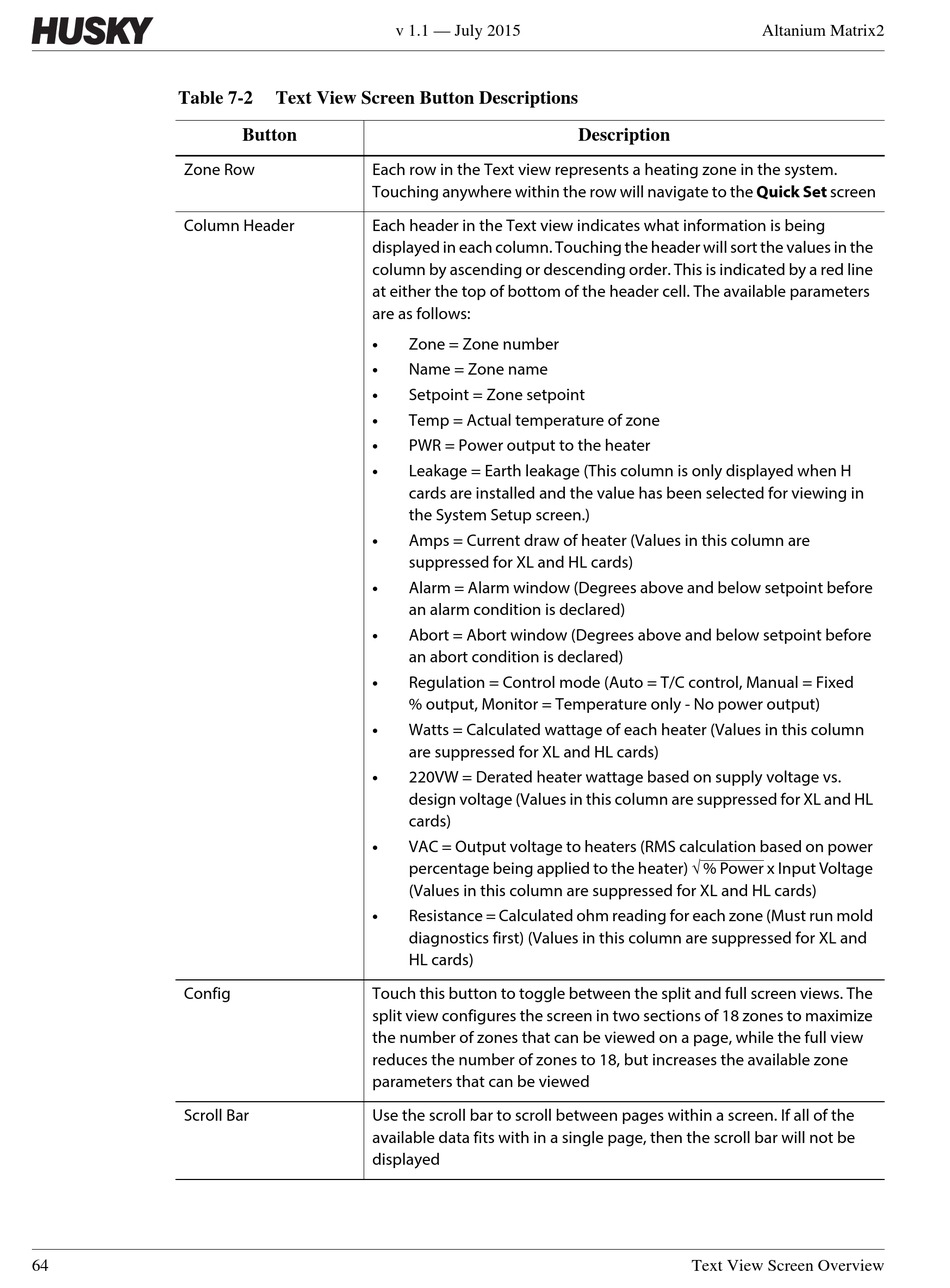

Table 7-2
Zone Row
Column Header
Config
Scroll Bar
64
v 1.1 — July 2015
Text View Screen Button Descriptions
Button
Each row in the Text view represents a heating zone in the system.
Touching anywhere within the row will navigate to the Quick Set screen
Each header in the Text view indicates what information is being
displayed in each column. Touching the header will sort the values in the
column by ascending or descending order. This is indicated by a red line
at either the top of bottom of the header cell. The available parameters
are as follows:
• Zone = Zone number
• Name = Zone name
• Setpoint = Zone setpoint
• Temp = Actual temperature of zone
• PWR = Power output to the heater
• Leakage = Earth leakage (This column is only displayed when H
cards are installed and the value has been selected for viewing in
the System Setup screen.)
• Amps = Current draw of heater (Values in this column are
suppressed for XL and HL cards)
• Alarm = Alarm window (Degrees above and below setpoint before
an alarm condition is declared)
• Abort = Abort window (Degrees above and below setpoint before
an abort condition is declared)
• Regulation = Control mode (Auto = T/C control, Manual = Fixed
% output, Monitor = Temperature only - No power output)
• Watts = Calculated wattage of each heater (Values in this column
are suppressed for XL and HL cards)
• 220VW = Derated heater wattage based on supply voltage vs.
design voltage (Values in this column are suppressed for XL and HL
cards)
• VAC = Output voltage to heaters (RMS calculation based on power
percentage being applied to the heater)  % Power x Input Voltage
(Values in this column are suppressed for XL and HL cards)
• Resistance = Calculated ohm reading for each zone (Must run mold
diagnostics first) (Values in this column are suppressed for XL and
HL cards)
Touch this button to toggle between the split and full screen views. The
split view configures the screen in two sections of 18 zones to maximize
the number of zones that can be viewed on a page, while the full view
reduces the number of zones to 18, but increases the available zone
parameters that can be viewed
Use the scroll bar to scroll between pages within a screen. If all of the
available data fits with in a single page, then the scroll bar will not be
displayed
Description
Text View Screen Overview
