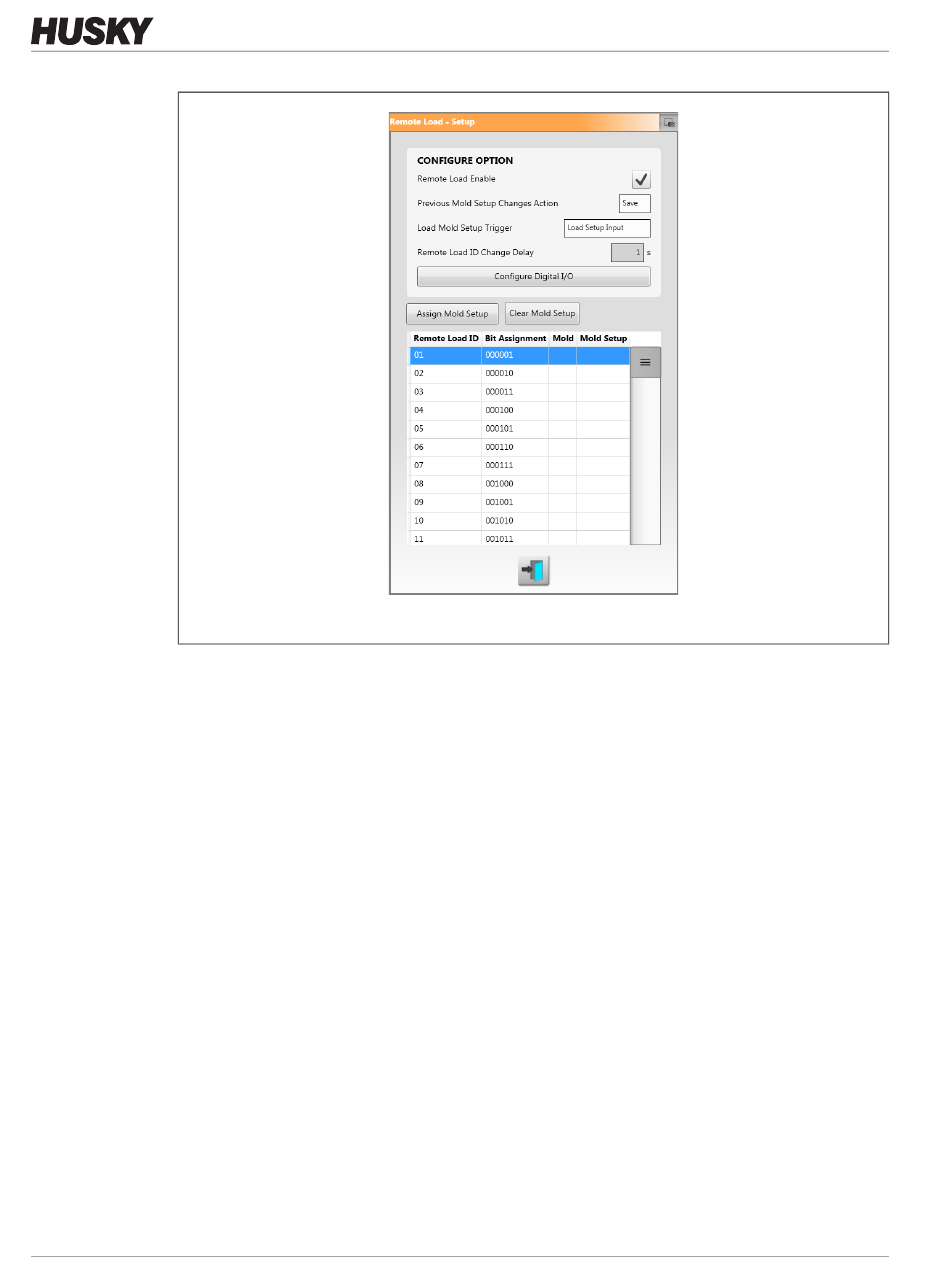

Figure 10-14 Remote Load - Setup Dialog Box
2.
3.
4.
130
Select the Remote Load Enable check box.
Select Configure Digital I/O if not previously done. This will bring up the Digital I/O
screen. For more information on configuring digital inputs/outputs refer to
NOTE: The user can specify what to do with any previous changes made to the current
mold setup. When a request has been initiated to load another mold setup, the
system will use this parameter to either save or discard the changes.
Select any of the 63 rows that do not already have a mold setup assigned. Press the
Assign Mold Setup button to start the assignment process. The Assign Mold Setup
dialog displays the folder structure for the local hard drive only. The Network and USB
buttons will not display anything when they are pressed.
NOTE:
Only one mold setup can be selected at a time.
v 1.1 — July 2015 Altanium Matrix2
Section 13.1.
Setting Up Remote Load
