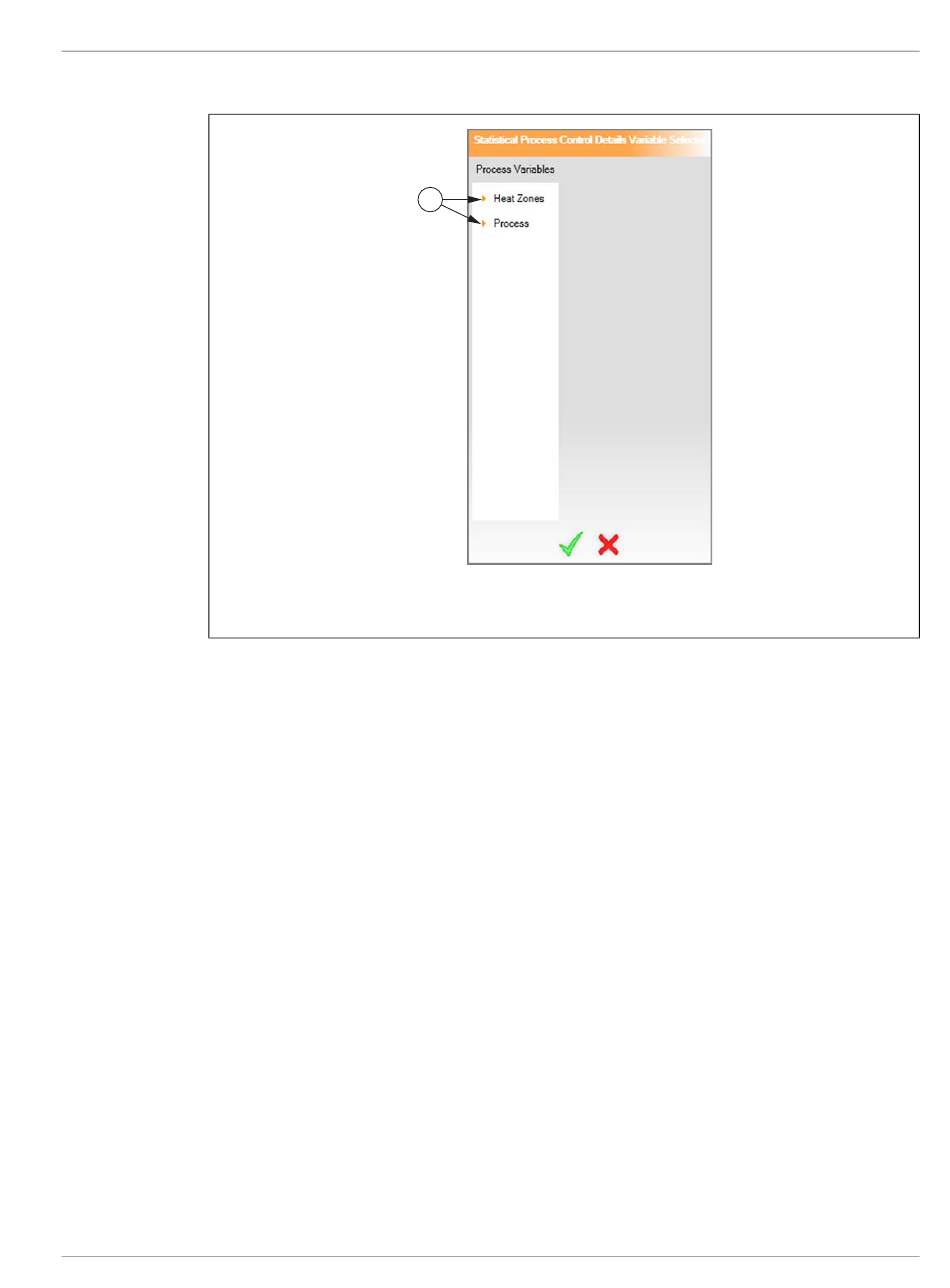

Figure 12-2 Statistical Process Control Details Variable Selector Dialog Box
1. Minimize/Maximize Button
3.

12.2 Process History Screen

On the Process History screen, the data is presented zone by zone. The Process History
screen provides a visual summary of the recorded operation, noting power usage,
temperature fluctuations, setpoint values, pressures, positions and times. A detailed textual
representation is offered for specific times.
Available process variables for heat zones:
•
•
•
•
•
•
Available process variables for UltraSync-E:
•
•
•
•
Process History Screen
Touch the Minimize/Maximize button.
Select the desired process variable.
Actual Current
Actual Earth Leakage (displayed only when configured in System Setup)
Actual Power
Actual Temperature
Actual Temperature Setpoint
Actual Voltage
Close Position
Closing Duration
Open Position
Opening Duration
