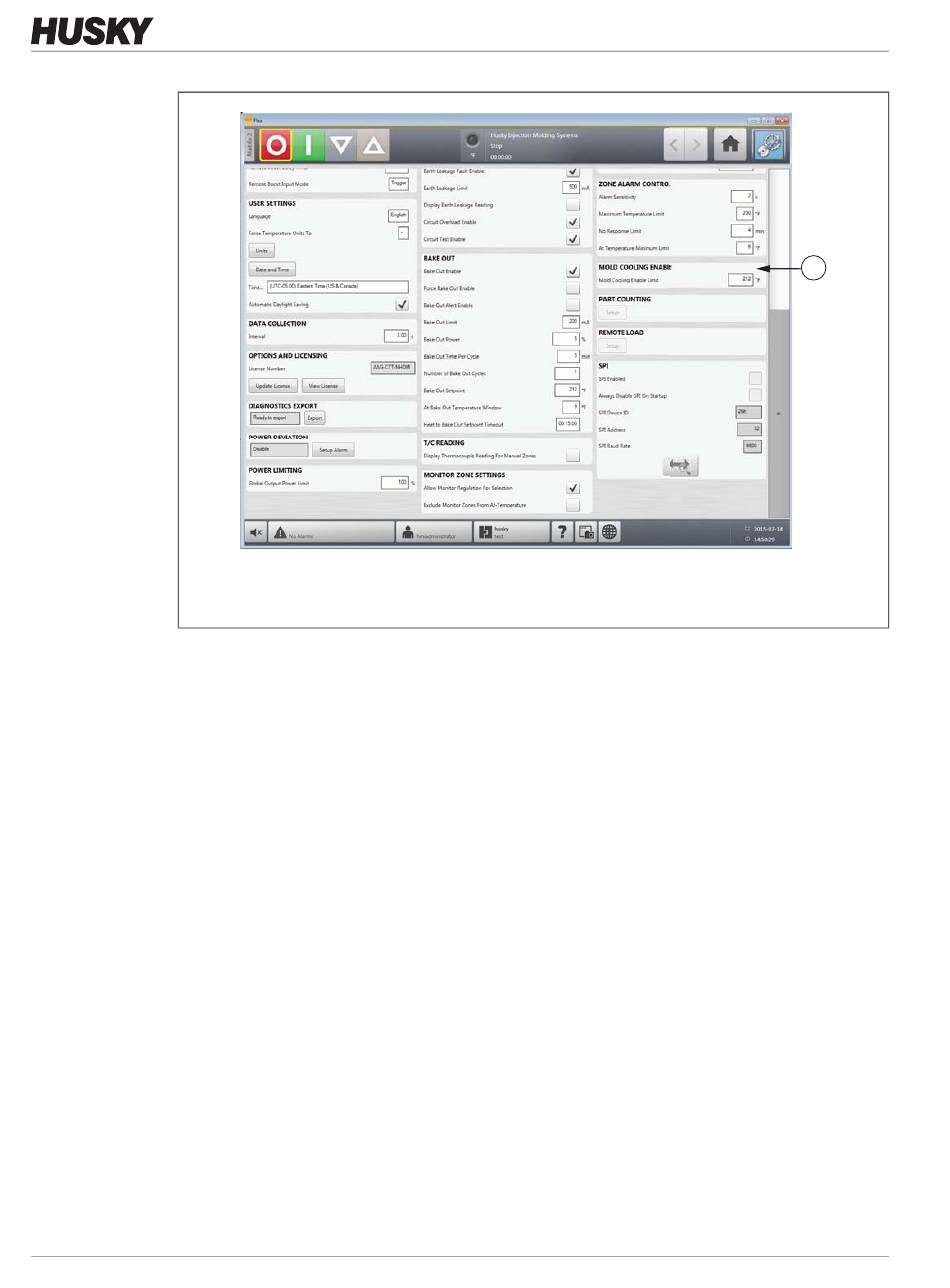

Figure 10-17 System Setup Screen - Mold Cooling Enable
1. Mold Cooling Enable Field
10.2 Staged Startup and Shutdown
This feature allows the system to heat or cool zones in a predetermined order by using
stages. Zones can be assigned to any of the 4 stages and can be configured with a separate
set point for each stage. A timer can also be configured for each stage which will allow all the
zones to "soak" for a user definable amount of time. The hot runner system must be heated
and cooled in a specific order to prevent problems such as misalignment and leaking.
10.2.1 Enabling or Disabling Staged Startup
Users can enable or disable the staged startup feature on the Staging screen. The staged
startup process is used to control how the temperatures in the system heat up.
To enable or disable staged startup, do the following:
1.
2.
134
On the Staging screen, do the following:
•
To enable staged startup, select the Staged Startup Enable check box.
•
To disable staged startup, clear the Staged Startup Enable check box.
Touch the Accept button.
v 1.1 — July 2015
Altanium Matrix2
1 1
Staged Startup and Shutdown
