User Guide

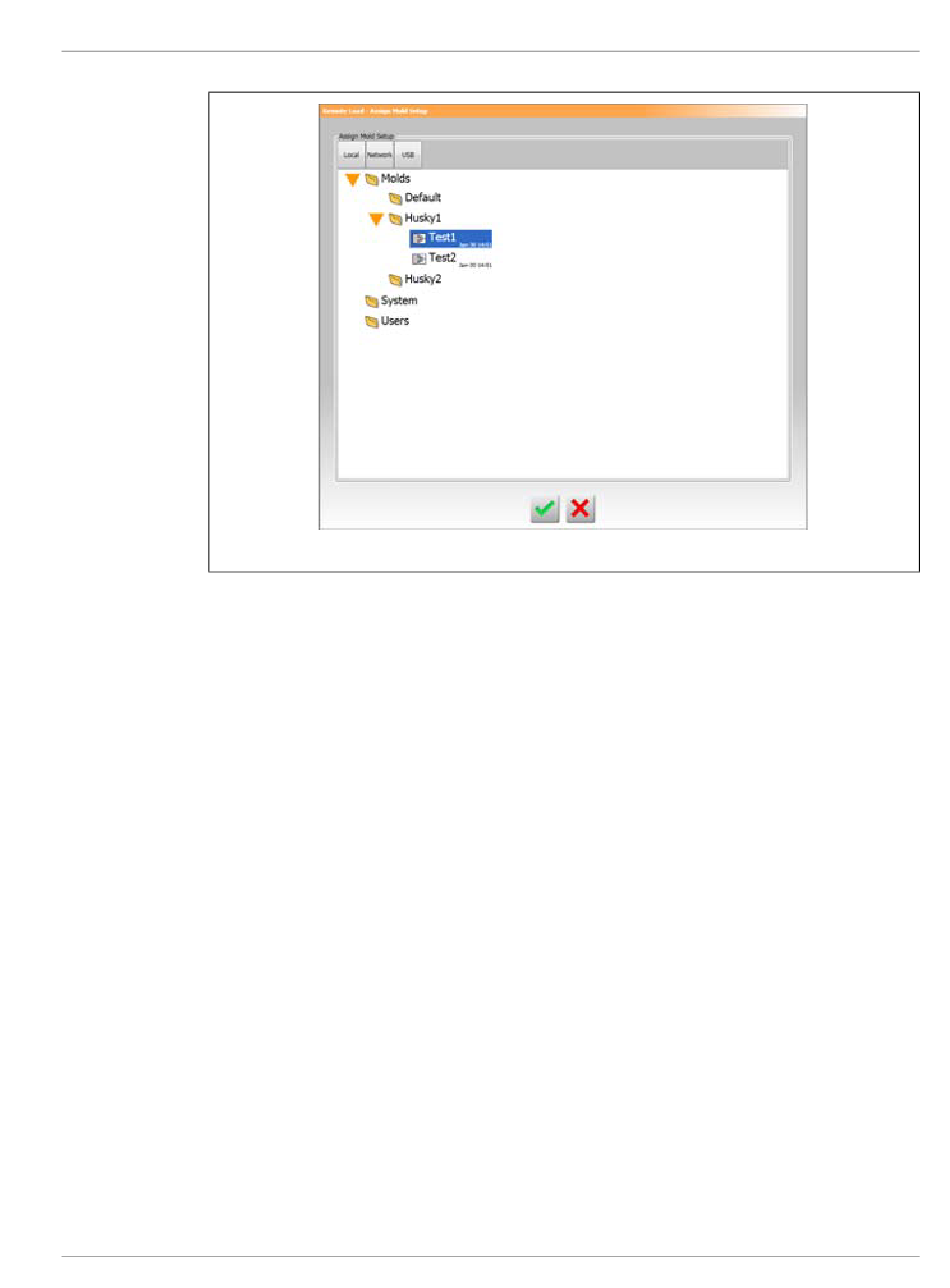

Figure 10-15 Remote Load - Assign Mold Setup Dialog Box
5.
6.

10.1.16 Zone Alarm Control

To set the zone alarm control values, do the following:
1.
2.
3.
Zone Alarm Control
Touch the Accept button to use the mold setup file selected. The new mold setup
selected will be displayed. This now means that whenever the applicable remote load
ID is requested this is the mold setup that will be loaded.
To clear the association, select the desired row and press the Clear Mold Setup button.
NOTE: A mold setup cannot be assigned to more than one remote load ID. If the user
attempts to do this the previous association will be removed automatically and
the new association will be added.
On the System Setup screen, under Zone Alarm Control, touch the desired field.
Enter the desired value.
Touch the Accept button.
v 1.1 — July 2015 System Setup Screen
131
