11.3.5 Deleting a Zone Information Panel

To delete a Zone Information Panel, do one of the following:
1.
2.
3.

11.3.6 Exiting Edit Mode

To exit Edit mode, do the following:
1.
2.

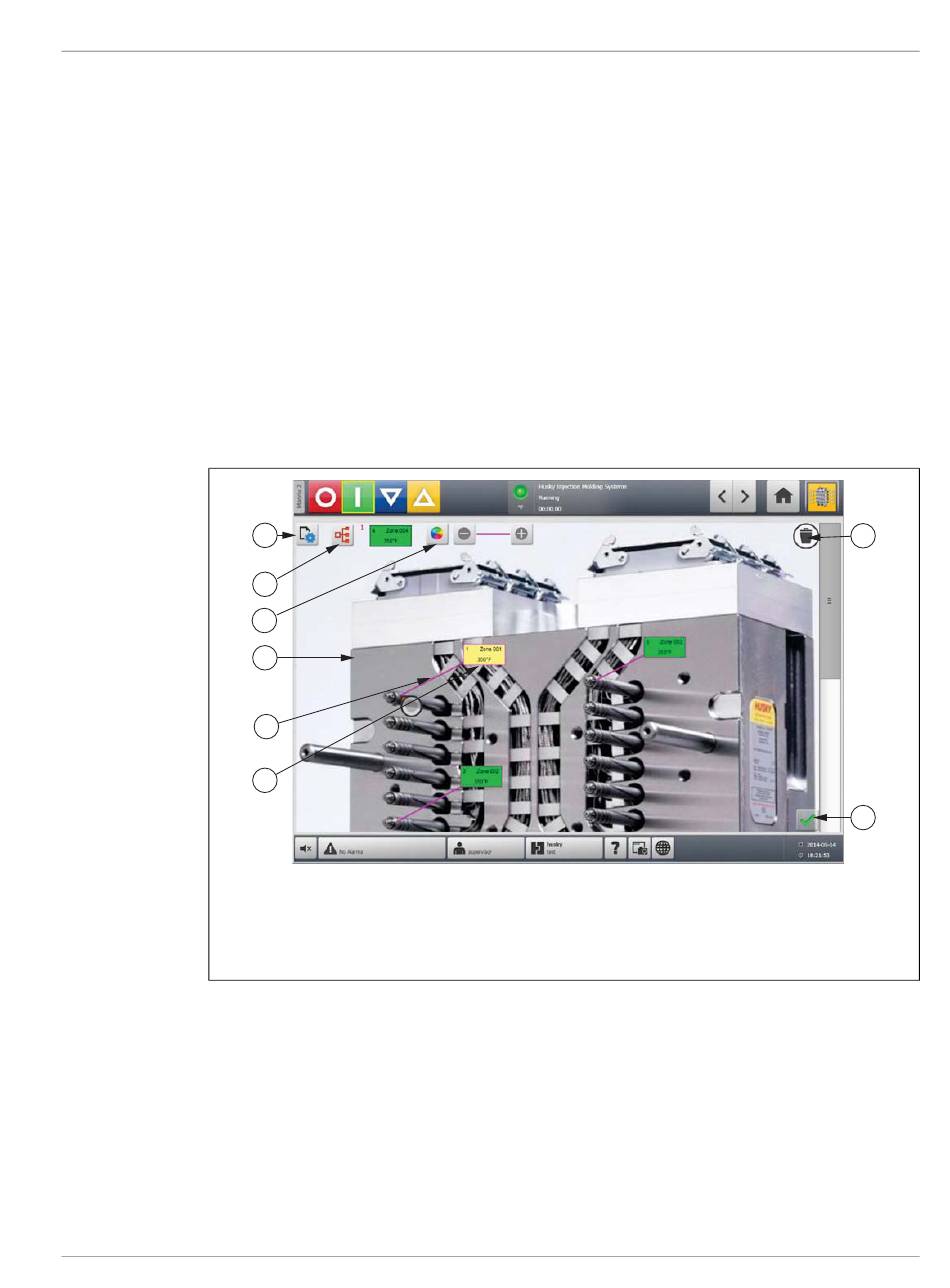

Figure 11-11 Mold Picture View Screen in Edit Mode
1. Change View Settings Button 2. Choose Heat Zone Button 3. Leader Line Color Button
4. Mold Picture View Graphic 5. Leader Line 6. Zone Information Panel 7. Delete Button
8. Accept Button
Deleting a Zone Information Panel
Make sure Mold Picture View is in Edit mode.
Touch and drag the Zone Information Panel to be deleted onto the Delete button or
off the mold picture view graphic, or:
Select the Zone Information Panel and touch the Delete button.
Make sure Mold Picture View is in Edit mode.
Touch the Accept button.
1
2
3
4
5
6
