The process history holds 10,000 records. Records contain values for all of the logged values
for each zone in the system. A frequent sampling rate will fill the database faster than a
slower sampling rate.

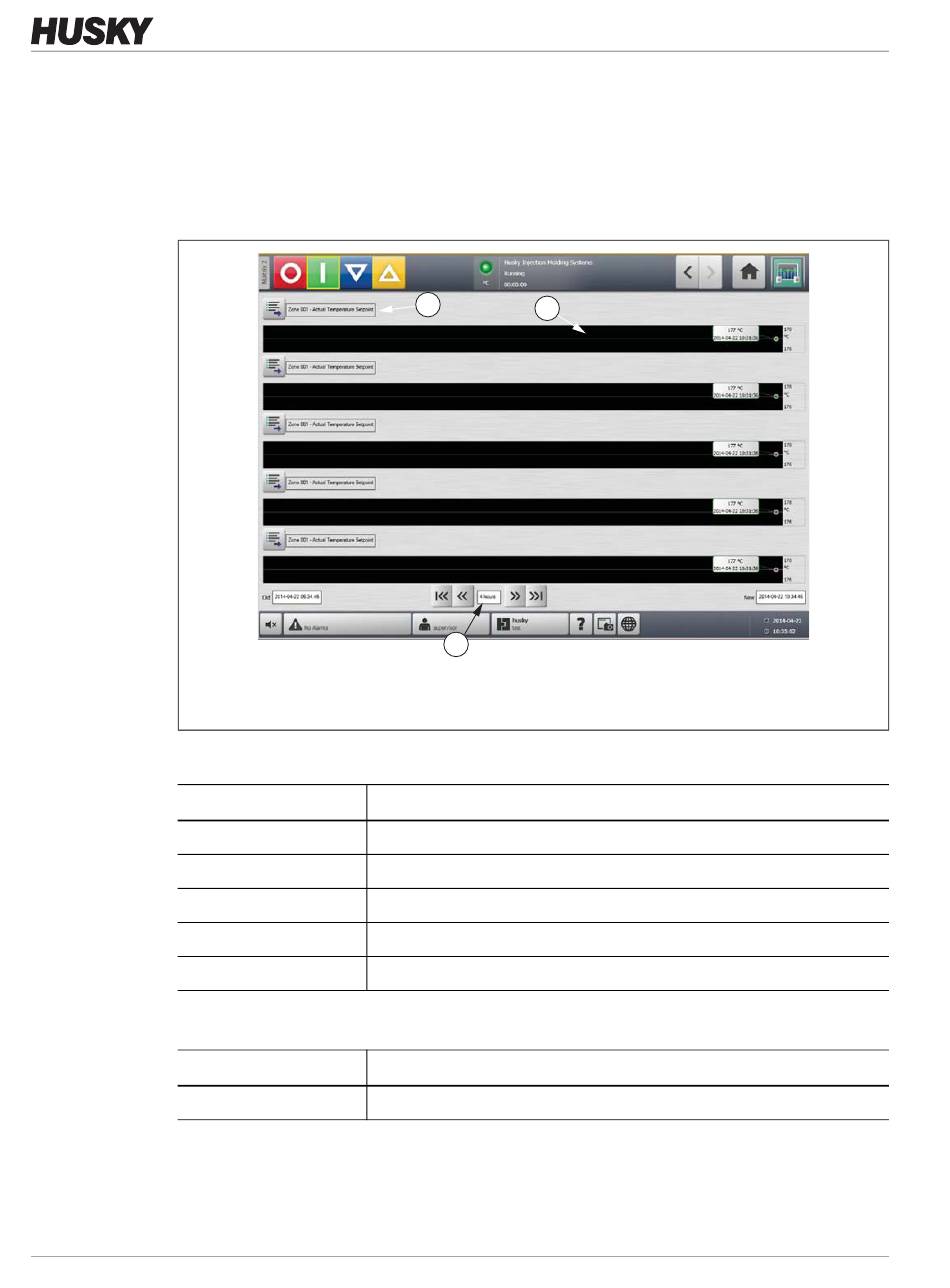

Figure 12-3 Process History Screen
1. Process Variable 2. Graph Section 3. Timeframe
Table 12-1 Process History Screen Item Descriptions
Process Variable
Graph Section
Timeframe
Date Range Old
Date Range New
Table 12-2 Process History Screen Button Descriptions
<<Variable Name>>
156
Peak Closing Force
Peak Opening Force
Cycle Time
Item
The process variable shown in the process history.
The operating history of one zone.
The period of time displayed on the graphs.
The oldest date displayed on the graph.
The newest date displayed on the graph.
Button
Touch the variable name to select a different variable.
