CDM-750 Advanced High-Speed Trunking Modem
Installation
2.2.2

Installing the Optional Bearingless Rack Slide Set

The optional FP/SL0006 Bearingless Rack Slide Set may be installed into the equipment rack
enclosure and onto the sides of the CDM‐750 as shown in Figure 2‐4. Follow these steps to
install the rack slides:
Step Task
Use the provided mounting hardware to install one slide onto each side of the CDM-750
1
chassis.
Use the provided mounting hardware to install the slide rail components into each interior
2
side of the rack enclosure.
Mount the unit into the front of the rack enclosure. Ensure that the slides properly engage
3
the enclosure-mounted slide rails.
Continue to slide the modem into the enclosure to its final operating position. Then, use
4 four user-provided screws to secure the modem to the enclosure's right and left threaded
front mounting rails (through the modem front panel mounting slots).
CEFD Part Number
FP/SL0006

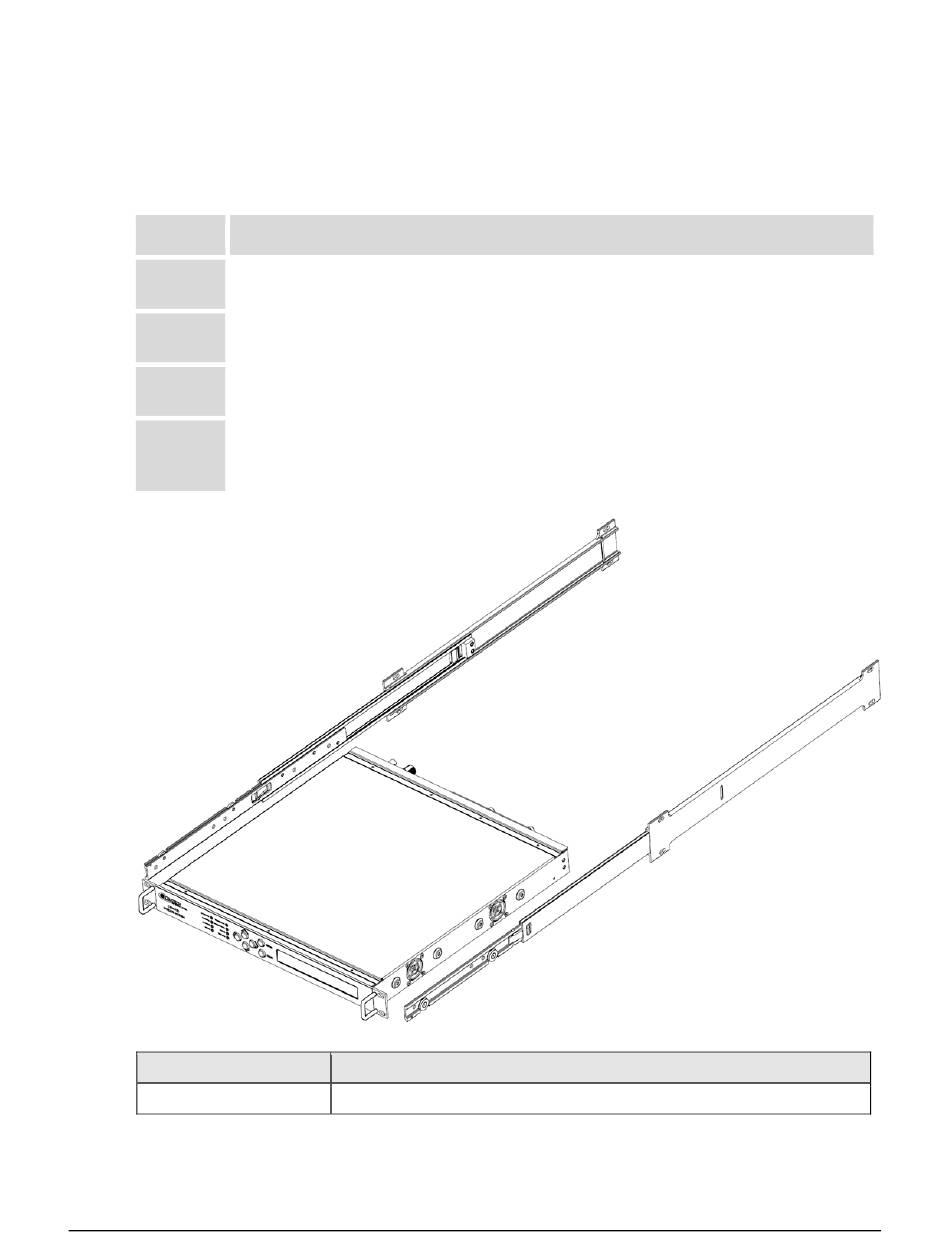

Figure 2-4. Installing the Optional Bearingless Rack Slide Set

Description
Bearingless Rack Slide Set – 26"
2–6
Revision 2
MN-CDM750
