CDM-750 Advanced High-Speed Trunking Modem
Installation

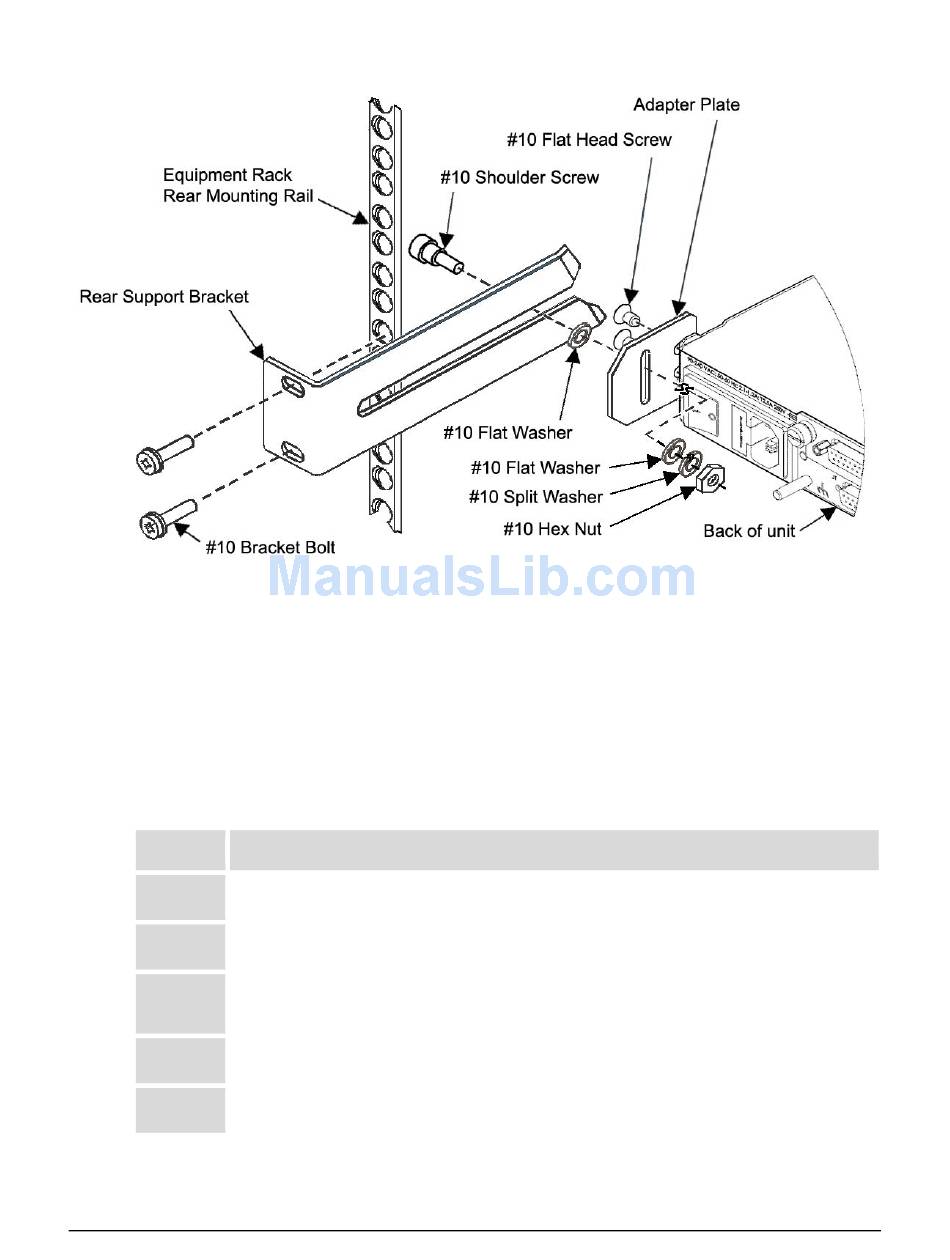

Figure 2-1. Optional Rear-Mounting Support Bracket Kit (KT-0000168) Installation

2.2.2

Method B: Optional Bearingless Side-Railing Set (FP/SL0006)

If the converter is to be mounted on slides, install an optional bearingless rack slide set into the
rack cabinet and onto the sides of the CDM-750 using the hardware provided with the slide set:
Per Figure 2-2, install the CEFD P/N FPSL0006 optional bearingless rack slide sets as follows:
Step Procedure
Using the provided mounting hardware, install one slide onto each side of the
1
CDM-750 chassis.
Using the provided mounting hardware, install the slide rail components into each
2
interior side wall of the rack cabinet.
Mount the unit into the equipment rack, ensuring that the slides properly engage
3
the cabinet-mounted slide rails.
Slide the converter into the rack cabinet until the front panel's back surfaces abuts
4
the rack cabinet's front mounting rails.
Secure the converter to the rack cabinet front mounting rails using four user-
5
provided screws installed through the front panel mounting slots.
2–3
Revision 1
MN-CDM750
