CDM-625A Advanced Satellite Modem
Installation

2.2.1 Installing the Optional Rear-Mounting Support Brackets Kits

Item
1
2
3
4
5
6

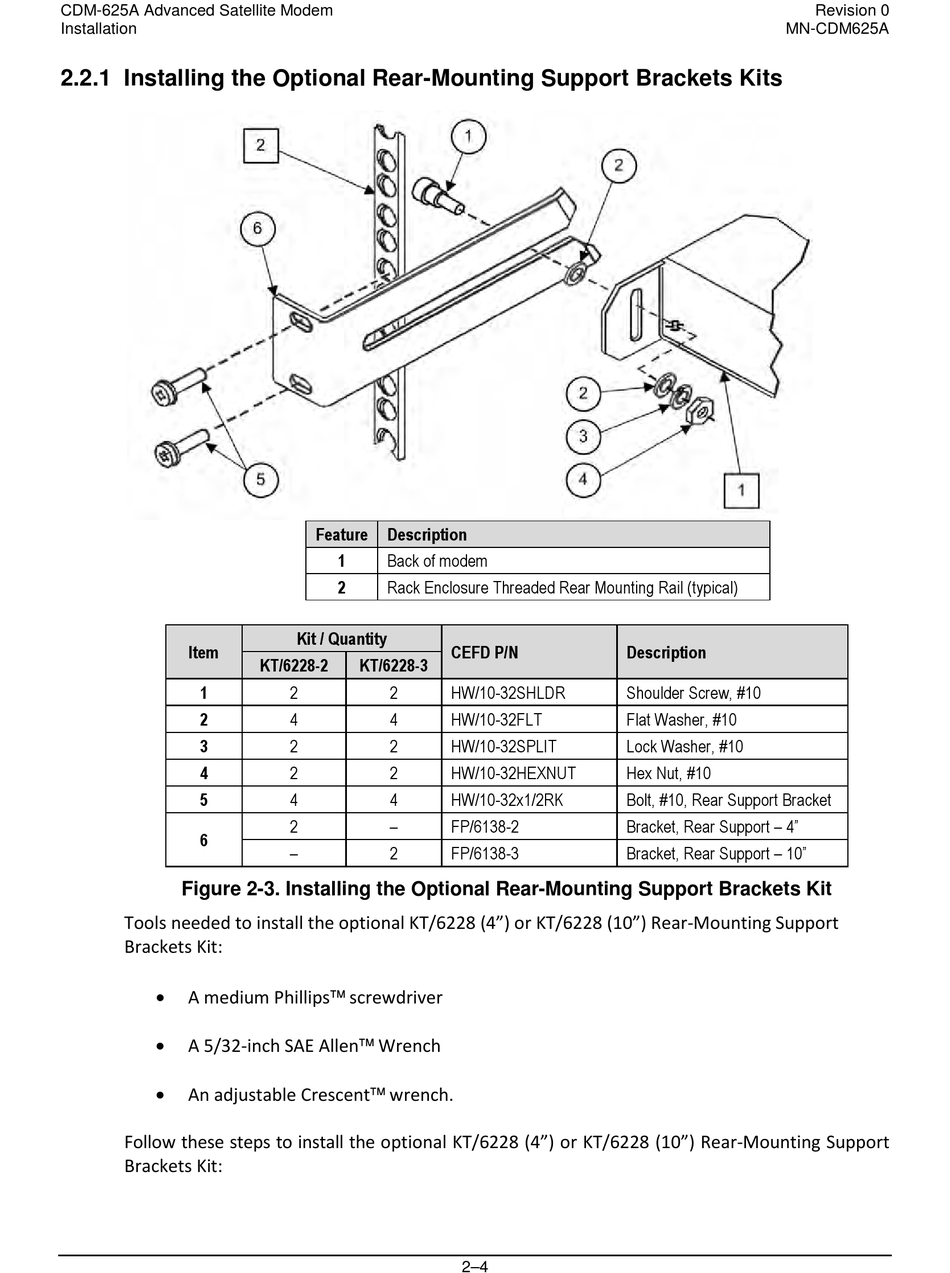

Figure 2-3. Installing the Optional Rear-Mounting Support Brackets Kit

Tools needed to install the optional KT/6228 (4") or KT/6228 (10") Rear-Mounting Support
Brackets Kit:
•
A medium Phillips screwdriver
• A 5/32-inch SAE Allen Wrench
•
An adjustable Crescent wrench.
Follow these steps to install the optional KT/6228 (4") or KT/6228 (10") Rear-Mounting Support
Brackets Kit:
Feature Description
1 Back of modem
2 Rack Enclosure Threaded Rear Mounting Rail (typical)
Kit / Quantity
KT/6228-2 KT/6228-3
2 2
4 4
2 2
2 2
4 4
2 –
– 2
CEFD P/N Description
HW/10-32SHLDR Shoulder Screw, #10
HW/10-32FLT Flat Washer, #10
HW/10-32SPLIT Lock Washer, #10
HW/10-32HEXNUT Hex Nut, #10
HW/10-32x1/2RK Bolt, #10, Rear Support Bracket
FP/6138-2 Bracket, Rear Support – 4"
FP/6138-3 Bracket, Rear Support – 10"
2–4
Revision 0
MN-CDM625A
