Ethernet 10-100-1000 Base-T Port; Figure A-1 Ethernet 10-100-1000 Base-T Port Pinout And Location; Table A-2 Ethernet Port Pinout - Silicon Graphics Prism Hardware User's Manual

Ethernet 10-100-1000 Base-T Port

007-4772-002
The deskside system auto-selects the Ethernet port speed and type when the deskside
system is booted, based on what it is connected to. The connector is a standard RJ-45
female. Figure A-1 shows the Ethernet port.
8 7 6 5 4 3 2 1

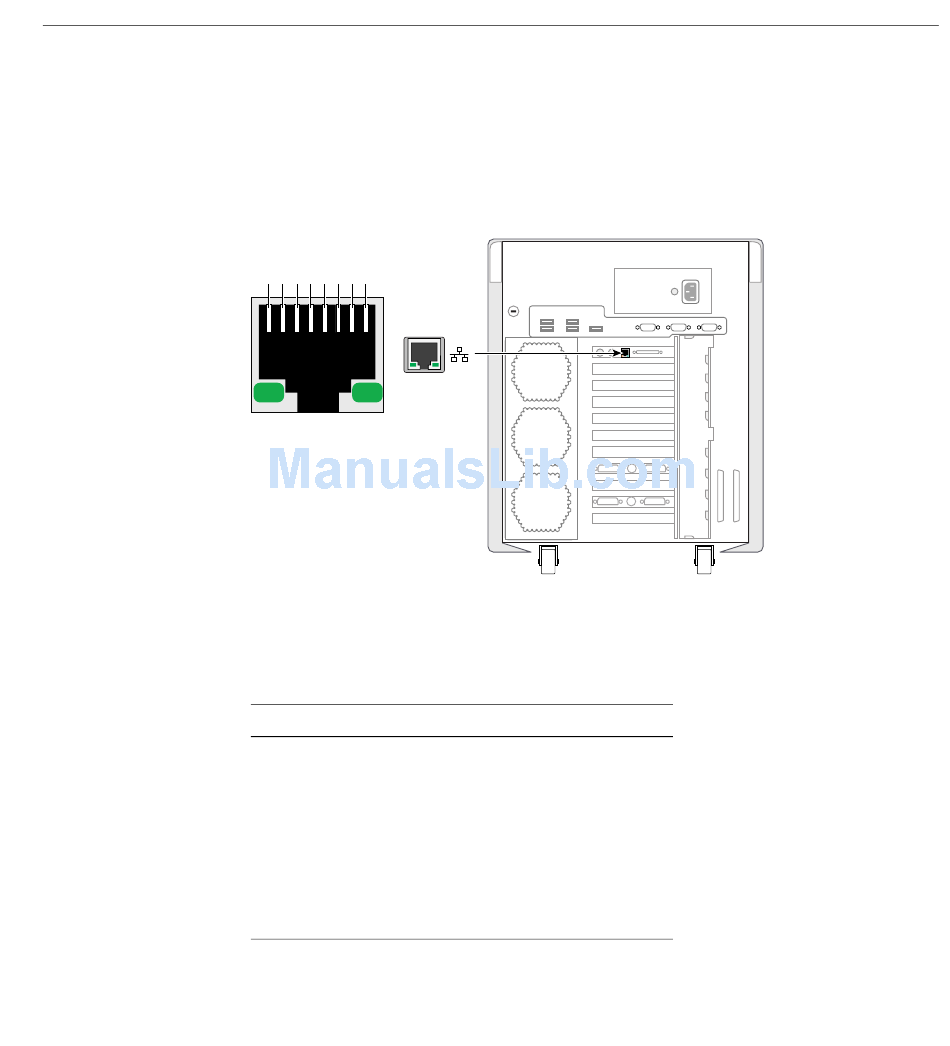

Figure A-1 Ethernet 10-100-1000 Base-T Port Pinout and Location
Table A-2 shows the cable pinout assignments for the Ethernet port.
Ethernet Port Pinout
Table A-2
Pin Assignment
1 Transmit+
2 Transmit–
3 Receive+
4 (Reserved)
5 (Reserved)
6 Receive–
I/O Port Specifications
157
