Installing a DVD-ROM or CD-ROM Drive into Slimline Bay
(Backplane Installed)
✏
NOTE
The carrier for the slimline DVD-ROM drive / CD-ROM drive was pre-
installed in the slimline drive bay of your Server Chassis
SR2400/SR2400DC.
1. Observe the safety and ESD precautions at the beginning of this book. See
Information."
2. Power down the server and unplug all peripheral devices and the AC power cable or DC
external source.
3. Remove the chassis cover. For instructions, see
4. Remove the front bezel if it is installed. For instructions, see
5. Push in on the blue lever at the rear of the CD-ROM / DVD-ROM drive carrier and push the
carrier out through the front of the chassis.
6. Align the two holes at left edge of DVD-ROM /CD-ROM drive with the cutouts in drive
carrier. See letter "A" in the figure below.
7. Lower the right side of the DVD-ROM / CD-ROM drive into the carrier until it clicks into
place. See letter "B" in the figure below.
8. Use the two screws indicated in the figure to attach the interposer board to the DVD-ROM /
CD-ROM drive. See letters "C" and "D" in the figure.
9. Attach the 44-pin CD-ROM drive cable to the exposed side / back of the interposer board. See
letter "E" in the figure.

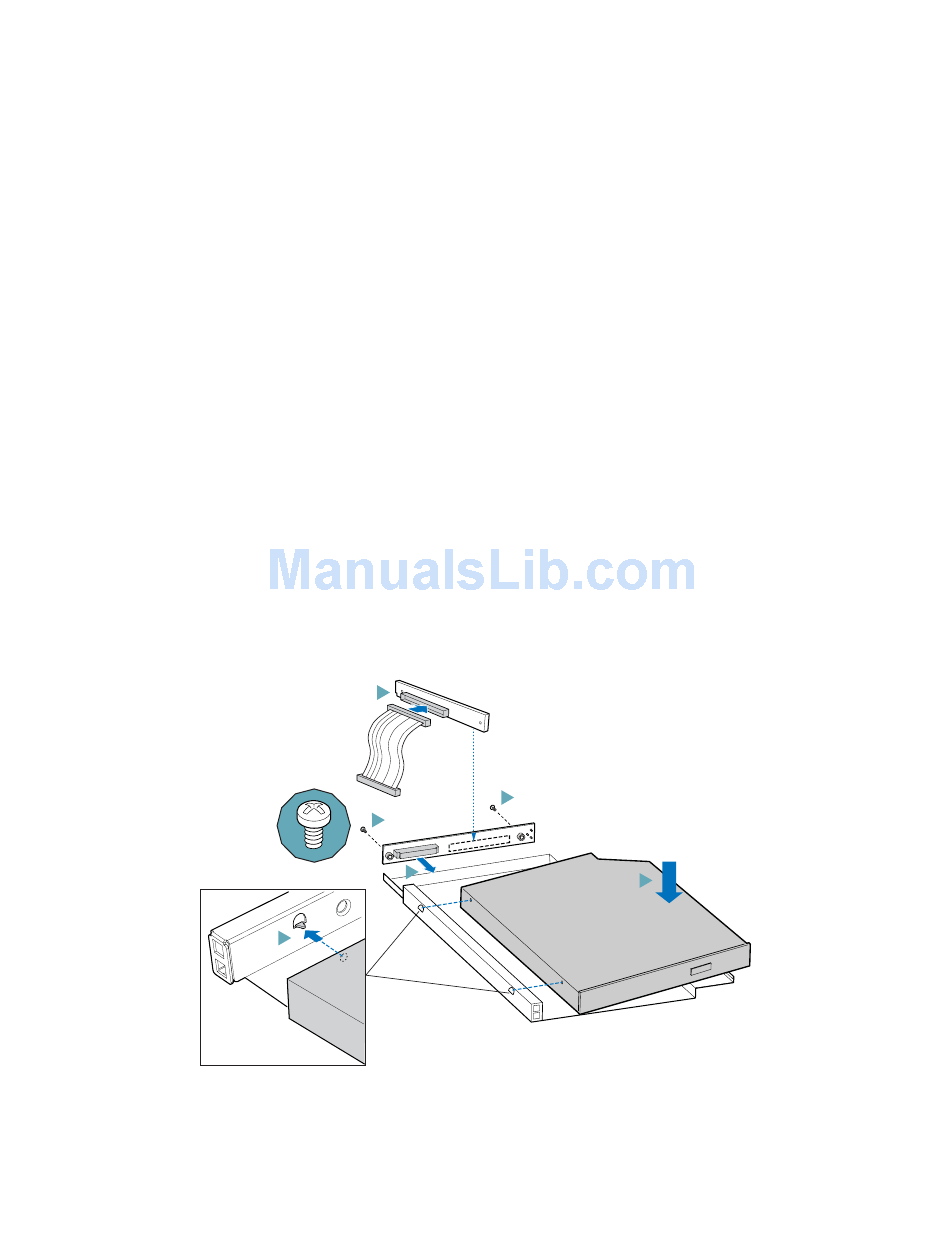

Figure 52. Installing a DVD-ROM / CD-ROM Drive into the Slimline Carrier

58
E
D
C
A
"Removing the Chassis Cover."
"Removing the Front Bezel."
D
B
"Safety
TP01085
