User Serviceable Platform Components
Removing a Hard Disk Drive
1. Observer the safety, ESD, and other precautions described in
2. Press on the green drive carrier latch. See letter "A" in Figure 66.
3. Pull the handle to remove the drive cage from the chassis. See letter "B" in the figure.
4. Place the drive cage on a clean, static-free work surface.
144
B
A

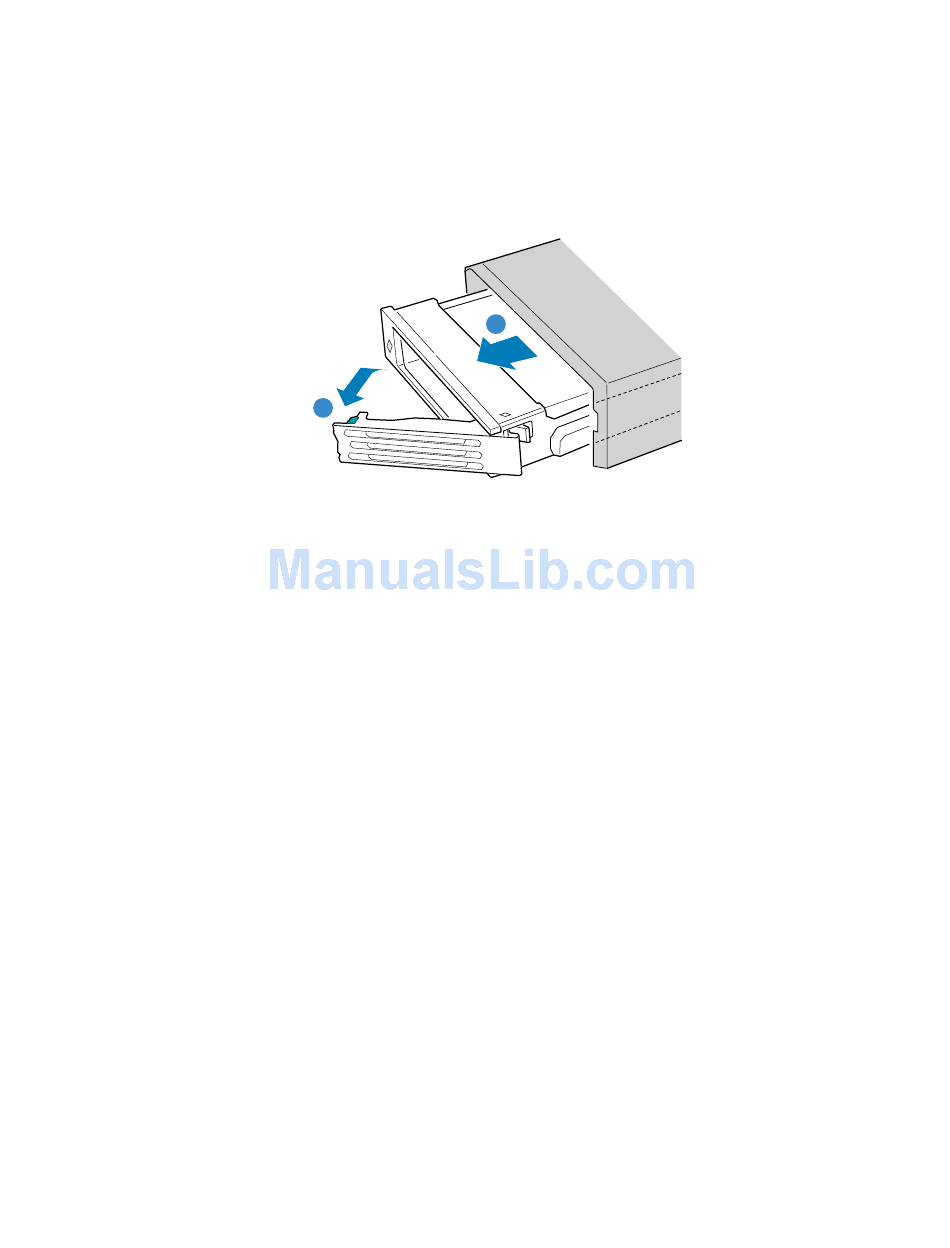

Figure 66. Removing a Hard Disk Drive
Intel® Server Platforms SR6850HW4 and SR6850HW4/M Product Guide
"Safety
Information", page 5.
TP01566
