4.6 Beam check

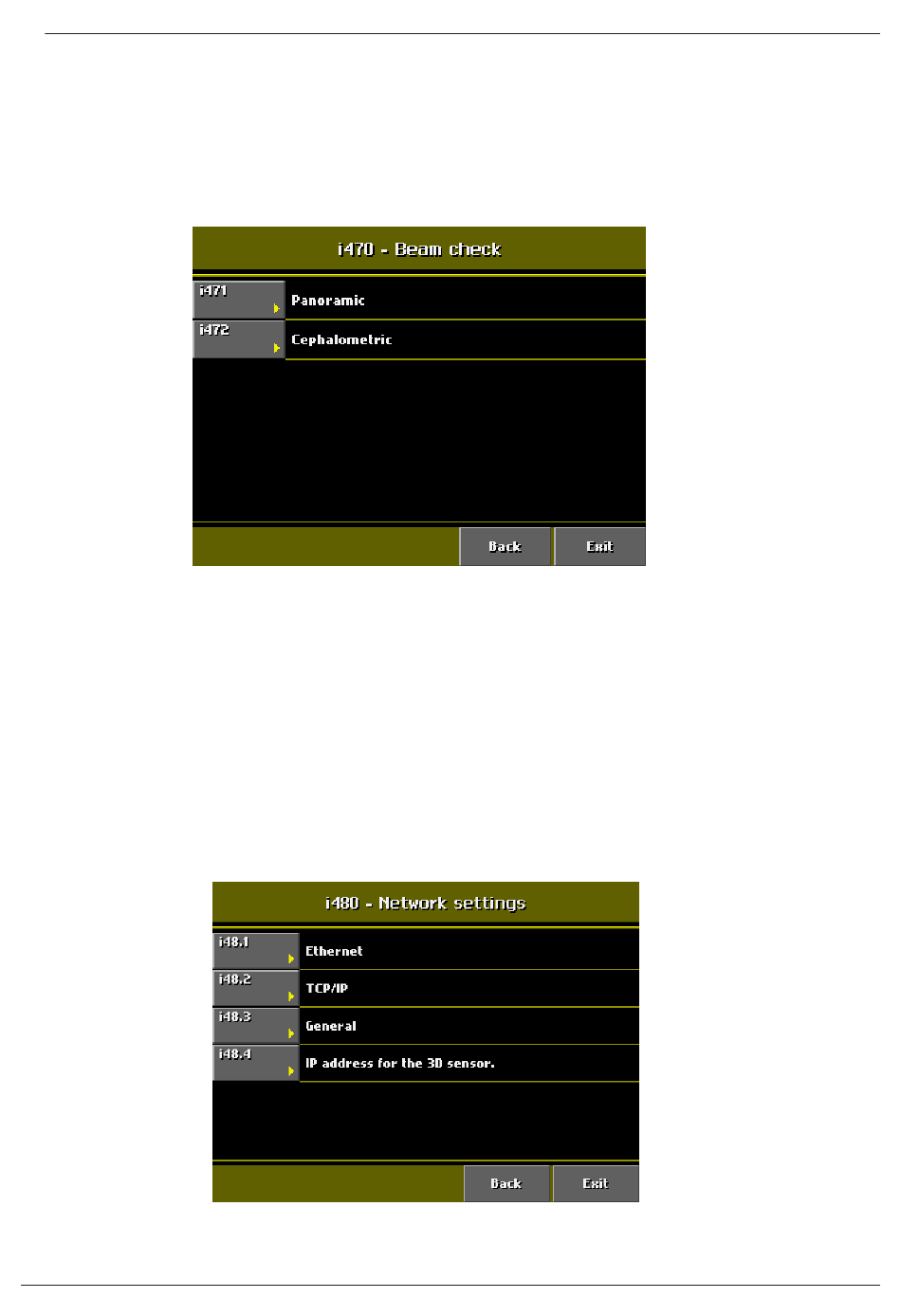

Select Beam check (i470) on the Special functions display. The display shown below
appears. The X-ray beam position on the sensor head can be checked in this mode. The
beam check procedures are described in sections 2.8 "Beam check" on page E-38 and 1.14
"Beam check" on page H-37.
Figure 25

4.7 Network settings

Select Network Settings (i480) on the Special functions display. The display shown below
appears. It is possible to communicate with the X-ray unit through a Ethernet link. To enable
the communication it is necessary to configure the link settings to the X-ray unit and to the PC
which is connected directly or remotely to the unit.
The detailed Ethernet link setup procedure is described in the Installation manual, publication
number 688271.
Figure 26
