REPLACING THE COLUMN MOTOR
Chapter G - COLUMN

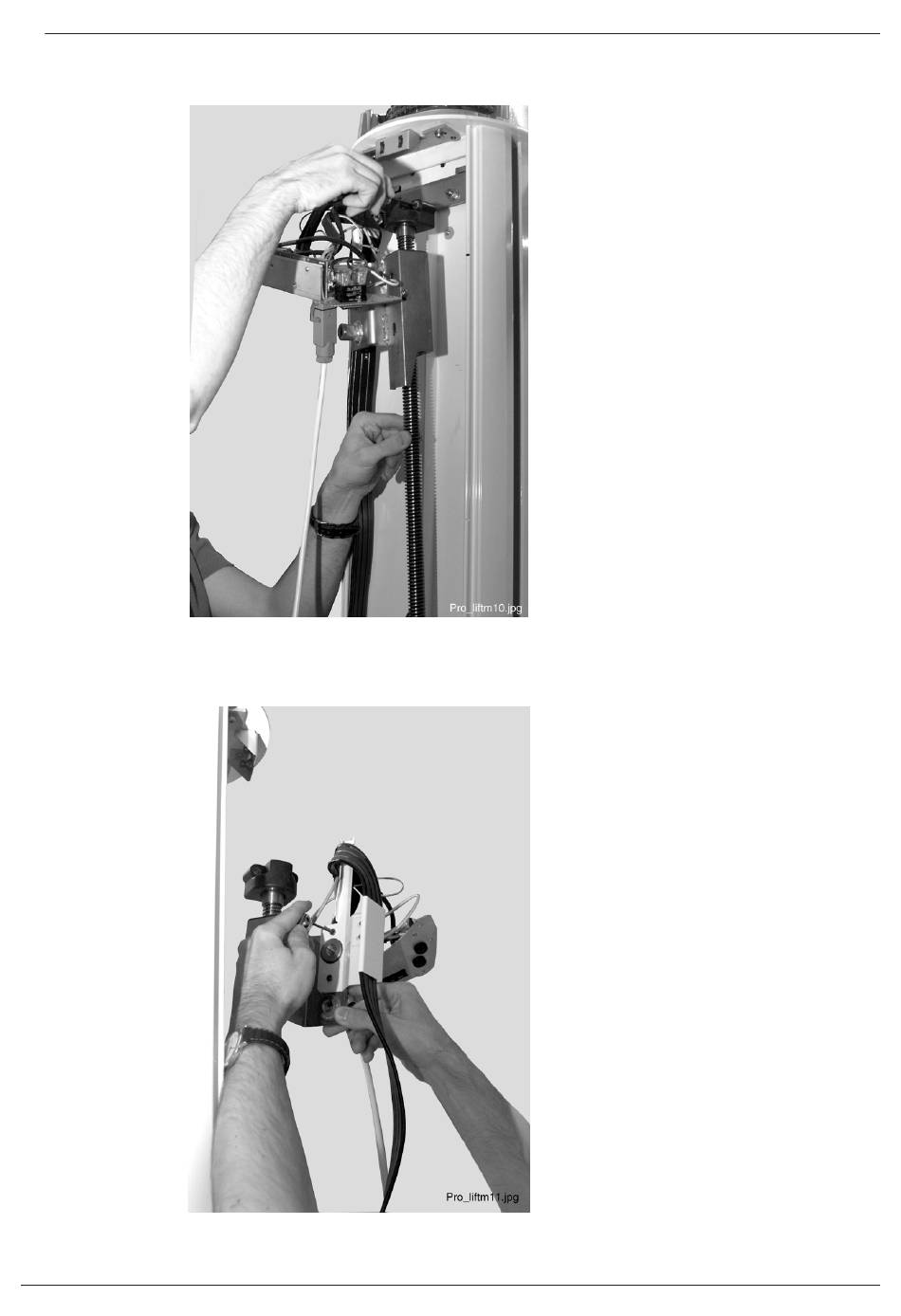

Detach the motor absorber support. Note that you have to prevent the motor from falling down
when the support is detached.
Figure 45
Remove the column cable guide plate from the lift nut.
Figure 46
Technical Manual
Planmeca ProMax G-23
