REPLACING TUBE HEAD
9 REPLACING TUBE HEAD
Remove the C-arm upper and inner covers and the tube head covers as described in section
5 "REMOVING THE COVERS" on page E-77.
Disconnect all the cables coming from the tube head from the C-arm PCB (Fig. 132, 1 - 5).

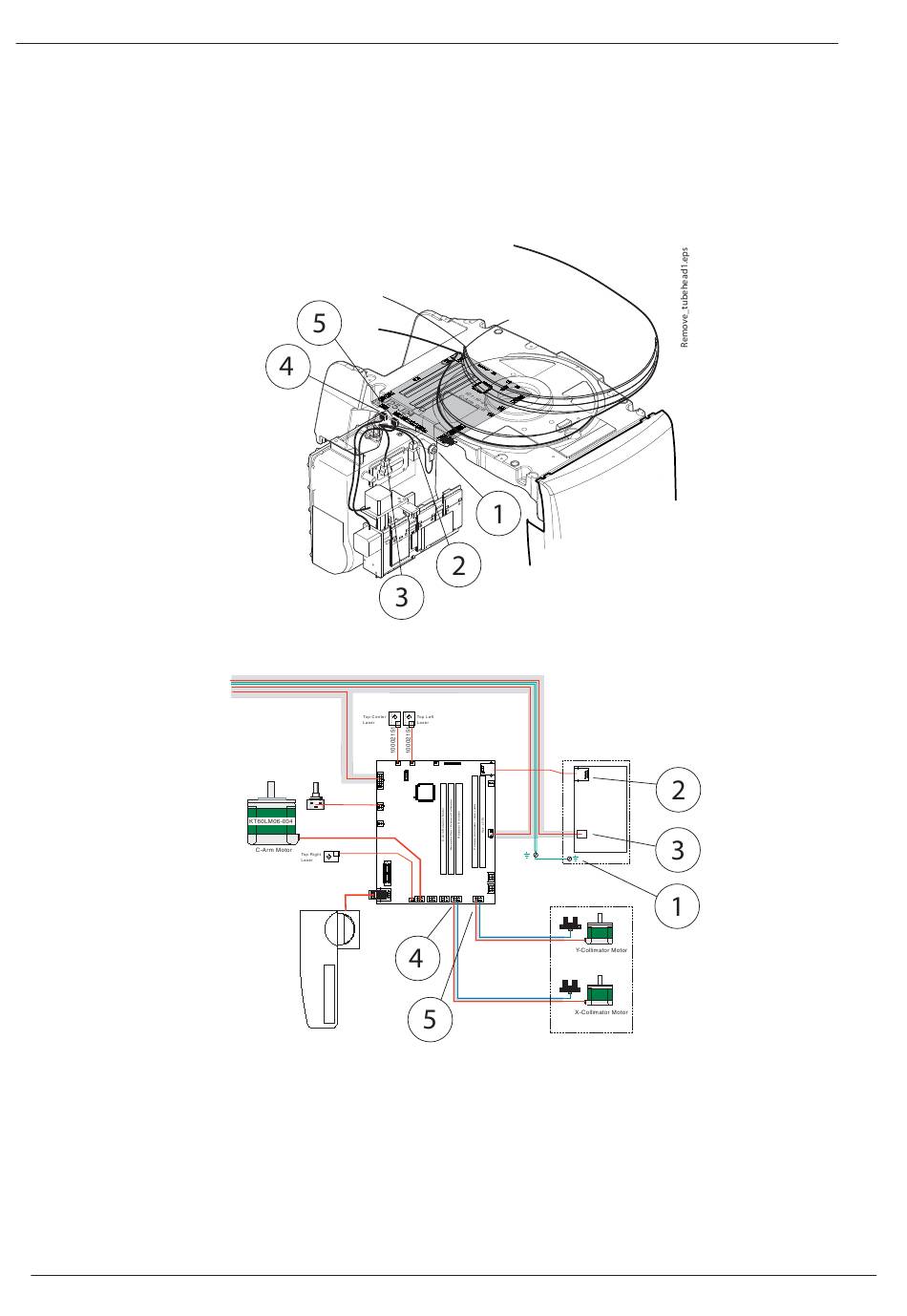

Figure 132
Technical Manual
ONLY IN TOMOGRAPHIC
10001173
IMAGING MODE
J1
J2
J3
J4
J5
J7
10002353
121-10-05
J9
C-Arm Angle
Sensor
C-Arm PCB
J10
10002180
CAM
10002151
J1
121-10-08
J27
ONLY IN TOMOGRAPHIC
CH7 CH8
IMAGING MODE
CH4
CH5 CH6
J24
J25
10003369
J23
J21
J22
J26
J19
DIMAX2
PAN
10003699
Chapter E - C-ARM AND IMAGING ARM
Tube Head
10002431
10002225
J6
J1
J8
121-10-06
Tube Feedback
PCB
J20
J11
FBK
00050852
Aux.
J18
J20
Aux.
10002181
KT35FM1-010
10002181
KT35FM1-010
Primary Collimators
Planmeca ProMax E-97
