Planmeca ProMax Technical Manual page 321

REMOVING THE HOUSINGS AND COVERS Chapter H - CEPHALOSTAT

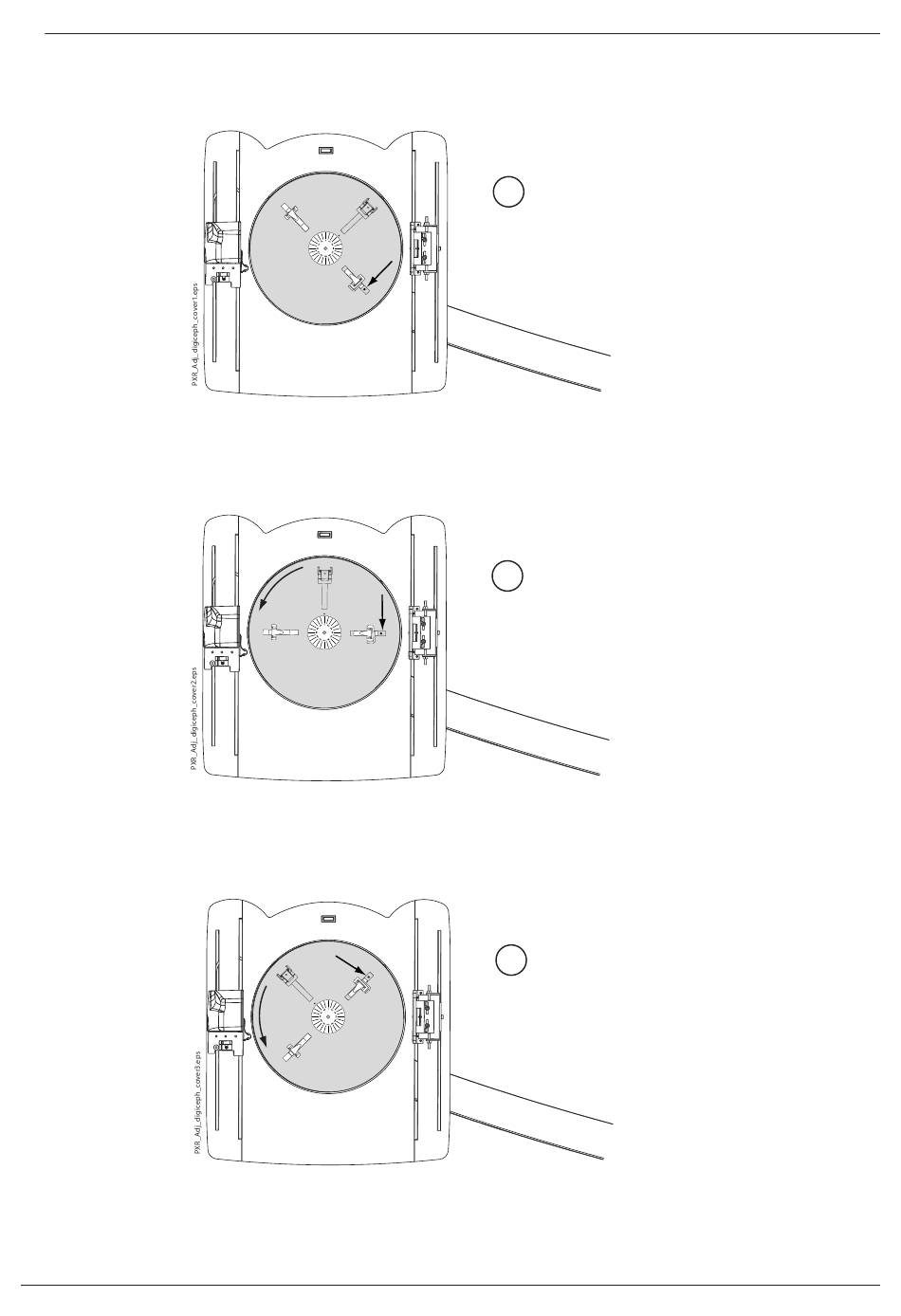

Rotate the head support to the 45° position as shown on the Fig. 114 below and unscrew the
back housing attachment screw with the 3mm Allen key and remove the housing.
1
45˚
Figure 114
Rotate the head support to the 0° position as shown on the Fig. 115 below and unscrew the
attachment screw number 2 with the 3mm Allen key.
2
0˚
Figure 115
Rotate the head support to the 45° position as shown on the Fig. 116 below and unscrew the
attachment screw number 3 with the 3mm Allen key.
3
45˚
Figure 116
Technical manual Planmeca ProMax H-65
