SERVICE SETTINGS
5.7.2 Select 3D collimator type
There are three versions of the collimator: 3D version 0 (V0), 3D version 1 (V1) and 3D
version 2 (V2).
Select the 3D collimator that is attached to the X-ray unit. The selected option will be marked
with a dot. Touch Done to confirm the selection.

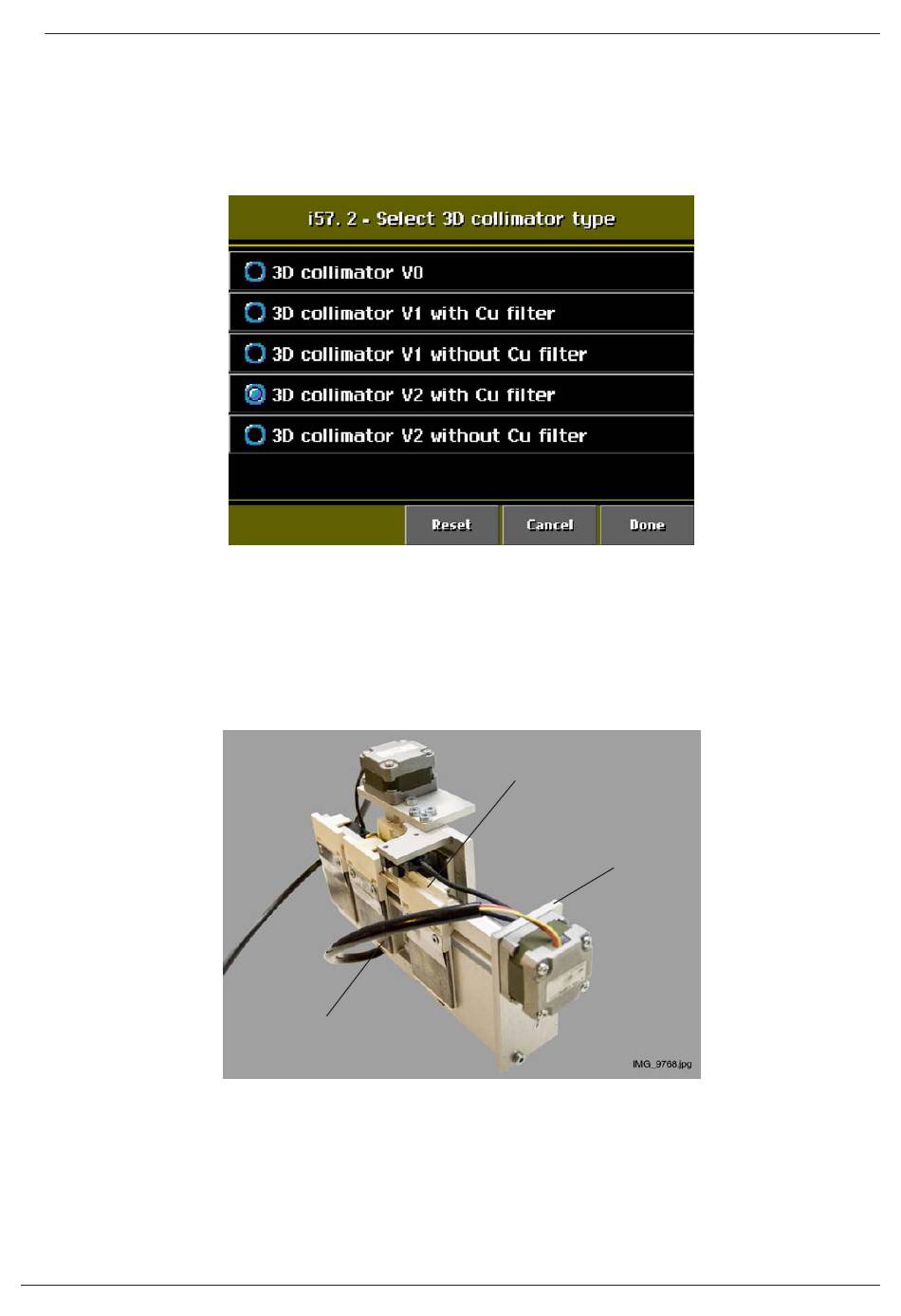

Figure 46
The differences between the collimators are shown below.
Figure 47
Technical Manual
3D collimator V0
(part number 10012615)
L
No copper filter
Chapter B - INFORMATION DISPLAYS
Blade with high top edge
on right
Thick metal plate
between motor and body
R
