Chapter E - C-ARM AND IMAGING ARM

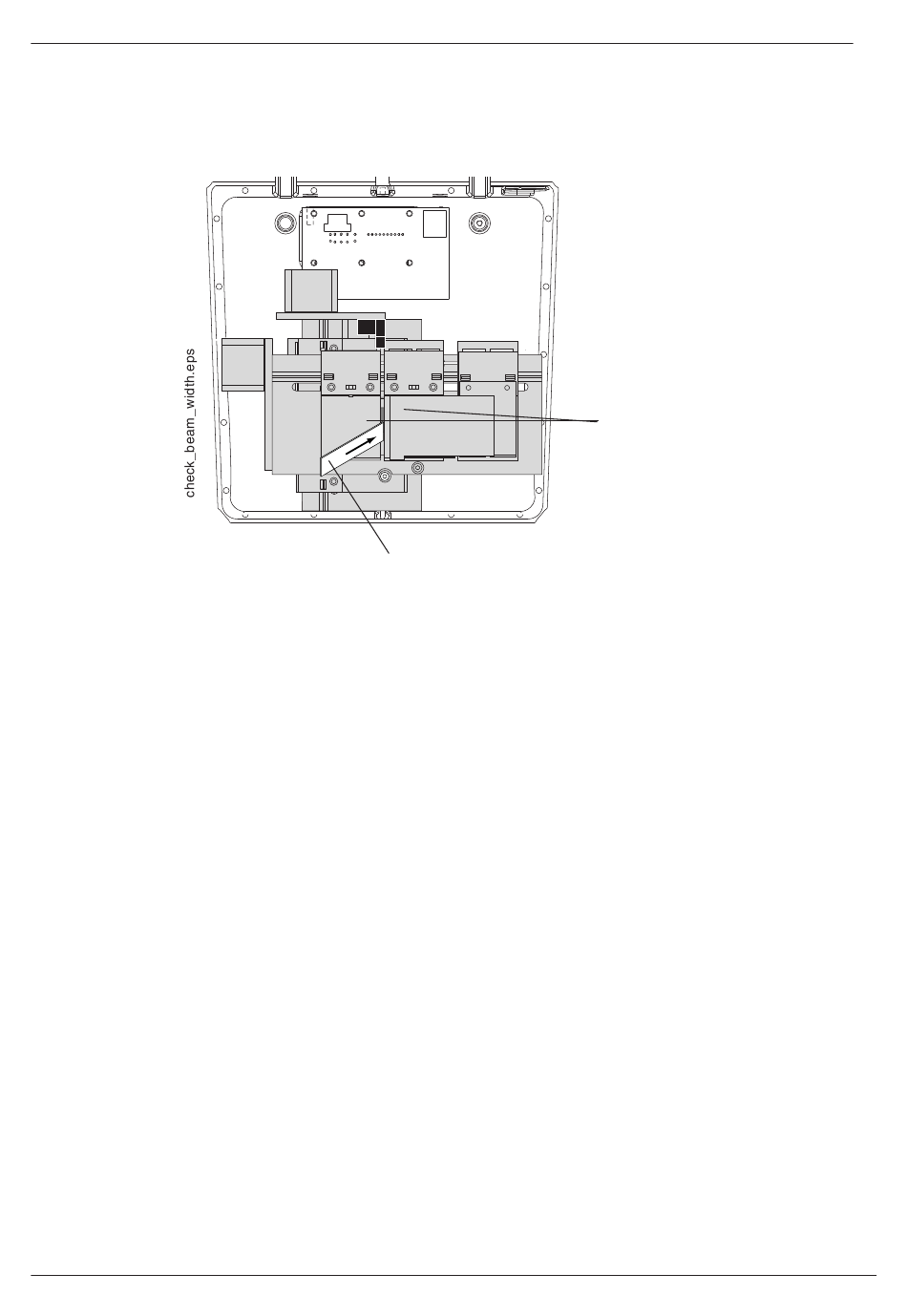

Use the 0.6mm feeler to check the width of the opening between the collimator blades as
shown in Fig. 22 and Fig. 22 below. The number on the display should be approx. 68 when
the opening is 0.6mm.
Feeler (Planmeca feeler order code 10005786)
Figure 22
E-16 Planmeca ProMax
PANORAMIC BEAM AND PATIENT POSITIONING MECHANISM
Panoramic primary collimator
ADJUSTMENT
Blades
Technical Manual
