Planmeca ProMax Technical Manual page 151

PANORAMIC BEAM AND PATIENT POSITIONING
MECHANISM ADJUSTMENT
2.11.1 Positioning light adjustment

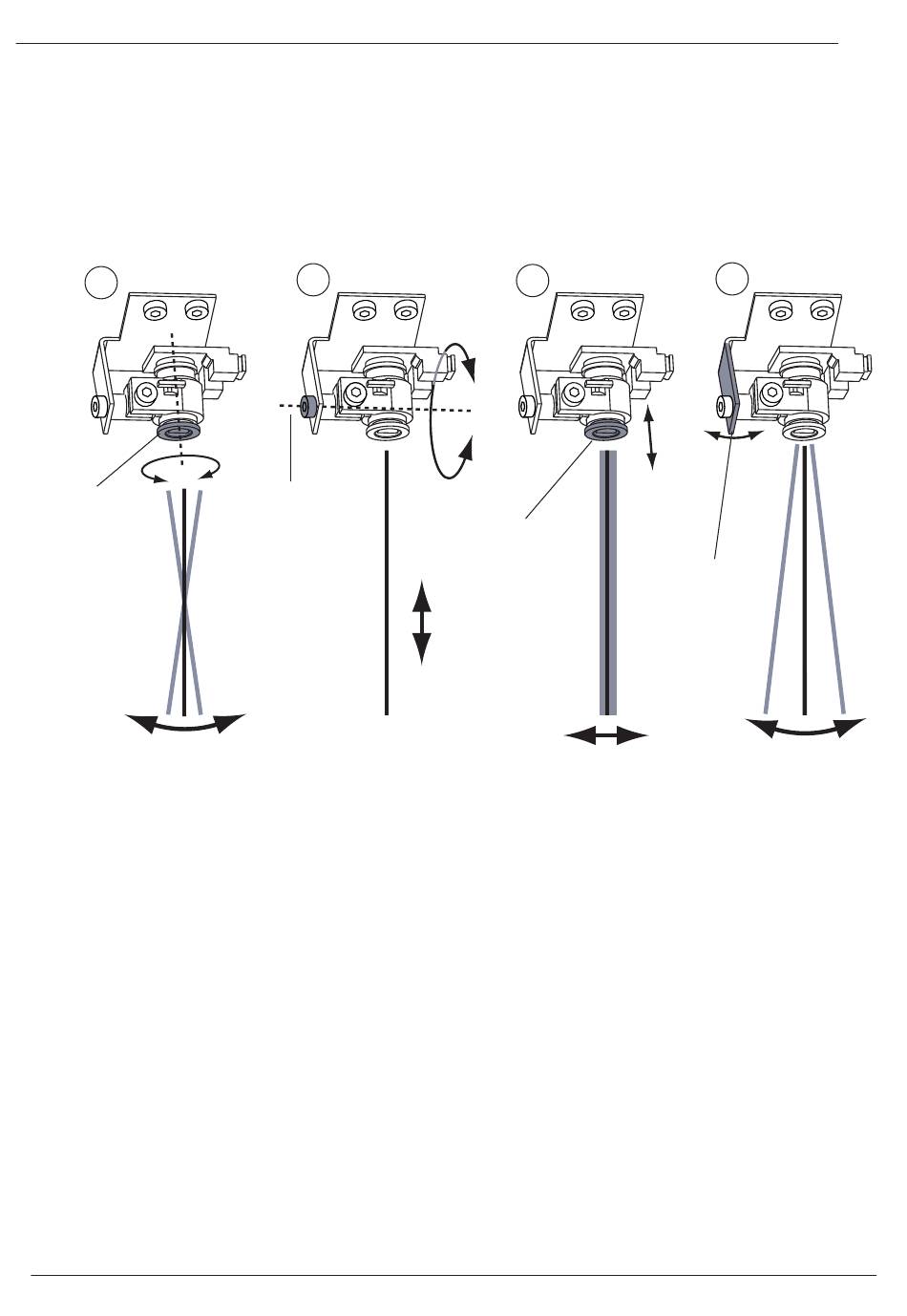

To adjust the light beam angle rotate the lens assembly of the light (Fig. 71, 1)
To adjust the light beam vertical position loosen the attachment screw of the laser light
assembly and rotate the assembly (Fig. 71, 2).
To focus the light beam adjust the depth of the lens assembly (Fig. 71, 3).
To adjust the light beam horizontal position bend the light attachment plate (Fig. 71, 4).l
1
Lens
assembly
Figure 71
Technical Manual
2
Light assembly
attachment screw
Chapter E - C-ARM AND IMAGING ARM
3
Lens assembly
4
Light attachment
plate
Planmeca ProMax E-53
