Chapter G - COLUMN

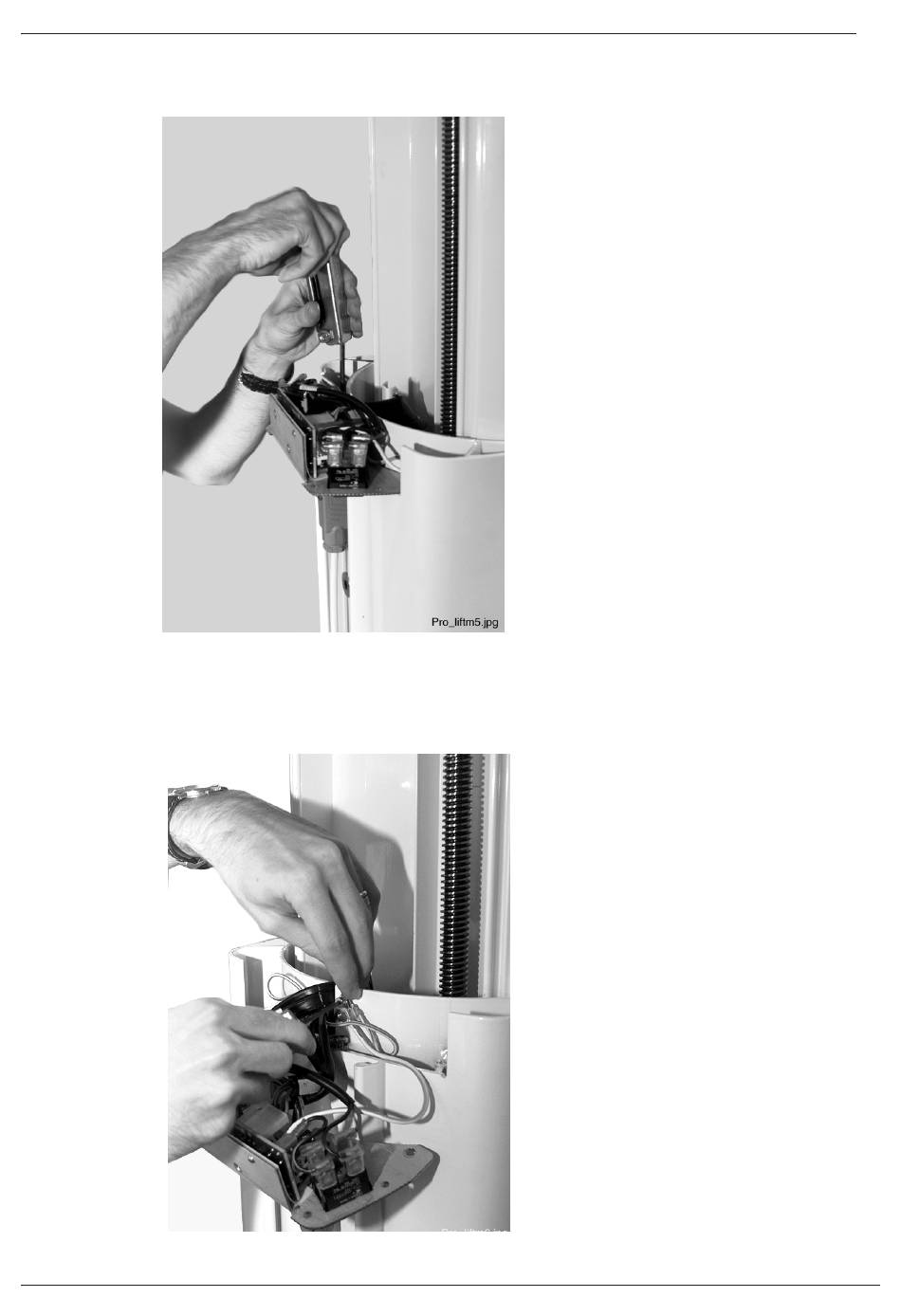

Detach the input module from the stationary column top by unscrewing the four M4.8x19 torx
7981 screws so that you can reach the attachment screws of the lift nut assembly.
Figure 40
Detach the earthing cables.
Figure 41
G-20 Planmeca ProMax
REPLACING THE COLUMN MOTOR
Technical Manual
