Planmeca ProMax Technical Manual page 208

Chapter F - PATIENT SUPPORT ARM
Layer light adjustment
Remove the patient support table cover according to the instructions given in section 2.1
"Patient support table cover" on page F-7.

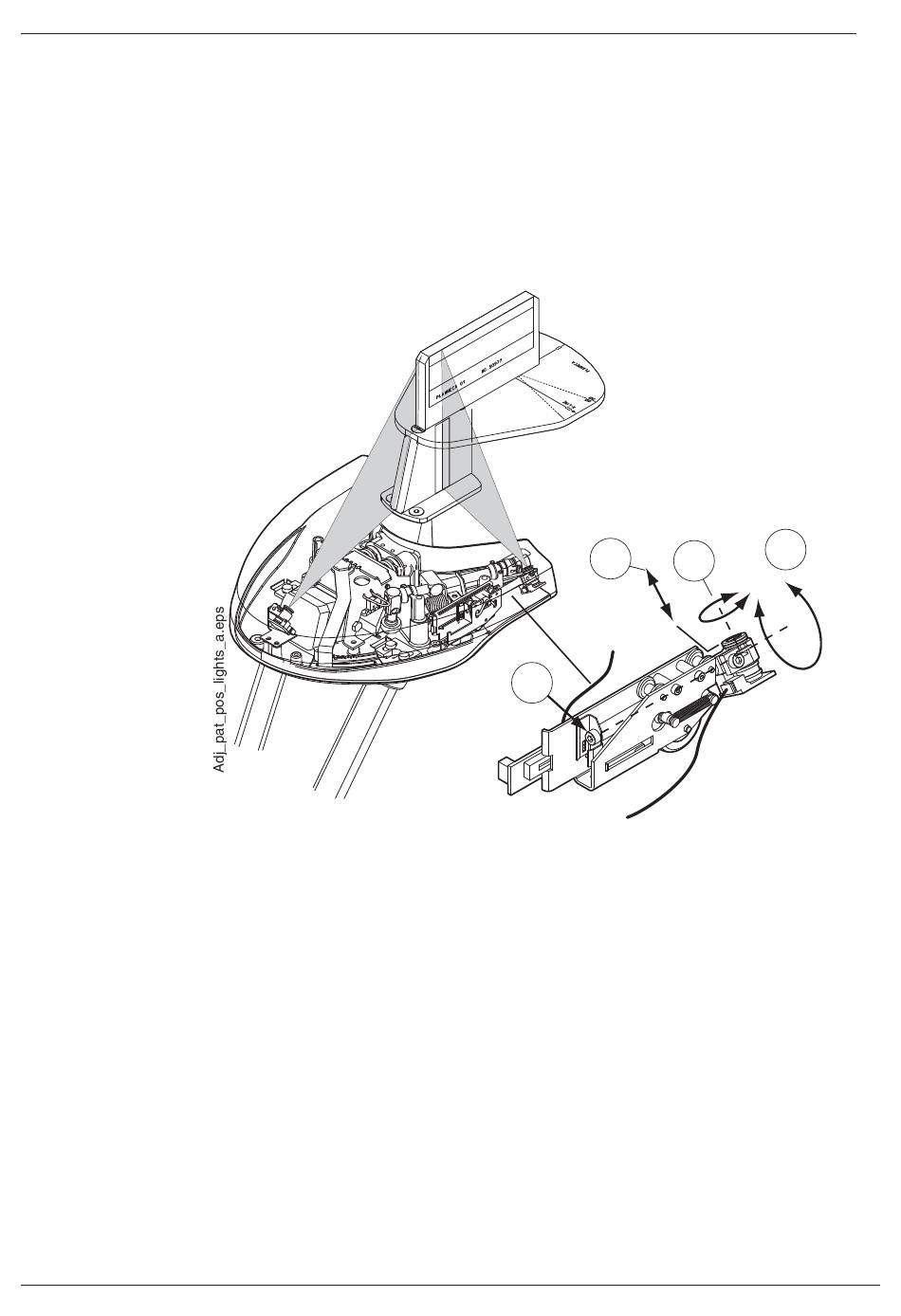

To adjust the light vertical position loosen the attachment screw of the laser light assembly
and rotate the assembly (Fig. 9, 1).
To focus the light beam adjust the depth of the lens assembly (Fig. 9, 2)
To adjust the light beam angle rotate the lens assembly of the light (Fig. 9, 3).
2
Figure 9
F-6 Planmeca ProMax
Layer light
2
3
1
ADJUSTMENTS
1
Technical Manual
