Chapter G - COLUMN

1.2 Calibrating the column motor position sensor

CAUTION Protect yourself against electrical shock. The unit contains live parts on
some PCBs and connectors.

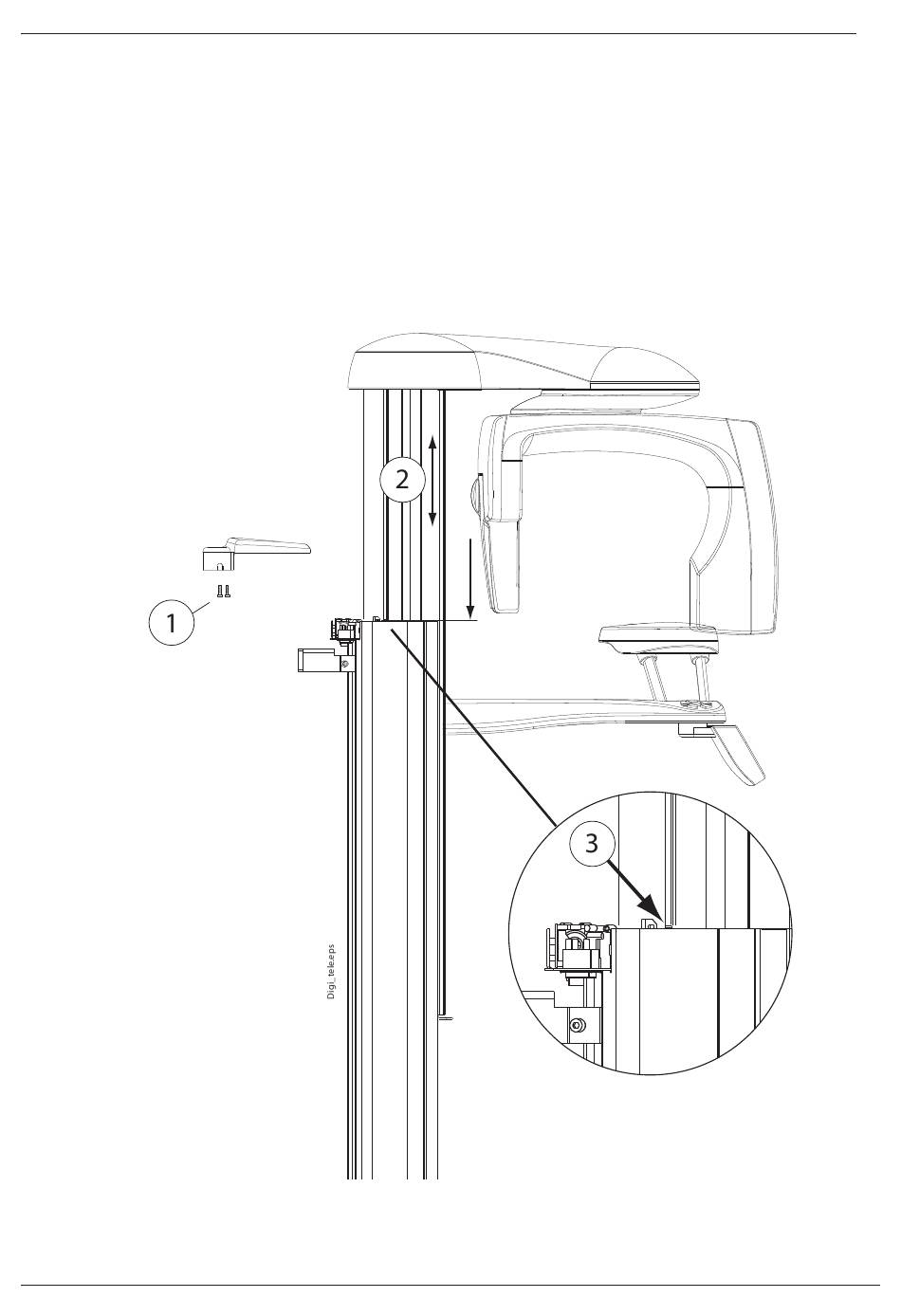

Unscrew the four attachment screws of the stationary column top cover with the 3mm Allen
key and remove the cover (Fig. 21, 1).
Using the height adjusting buttons, drive the telescopic column into position (Fig. 21, 2) where
the reference mark on the telescopic column and the upper edge of the stationary column are
aligned (Fig. 21, 3).
Figure 21
