Chapter H - CEPHALOSTAT

1.15 Calibrating the cephalostat sensor head

Remove the sensor alignment tool from the cephalostat sensor head connector. Attach the
sensor head to the connector.
Remove the nasial positioner and the ear posts from their holders. Attach the cephalostat
calibration tool to the right-hand ear post holder (near the sensor head).

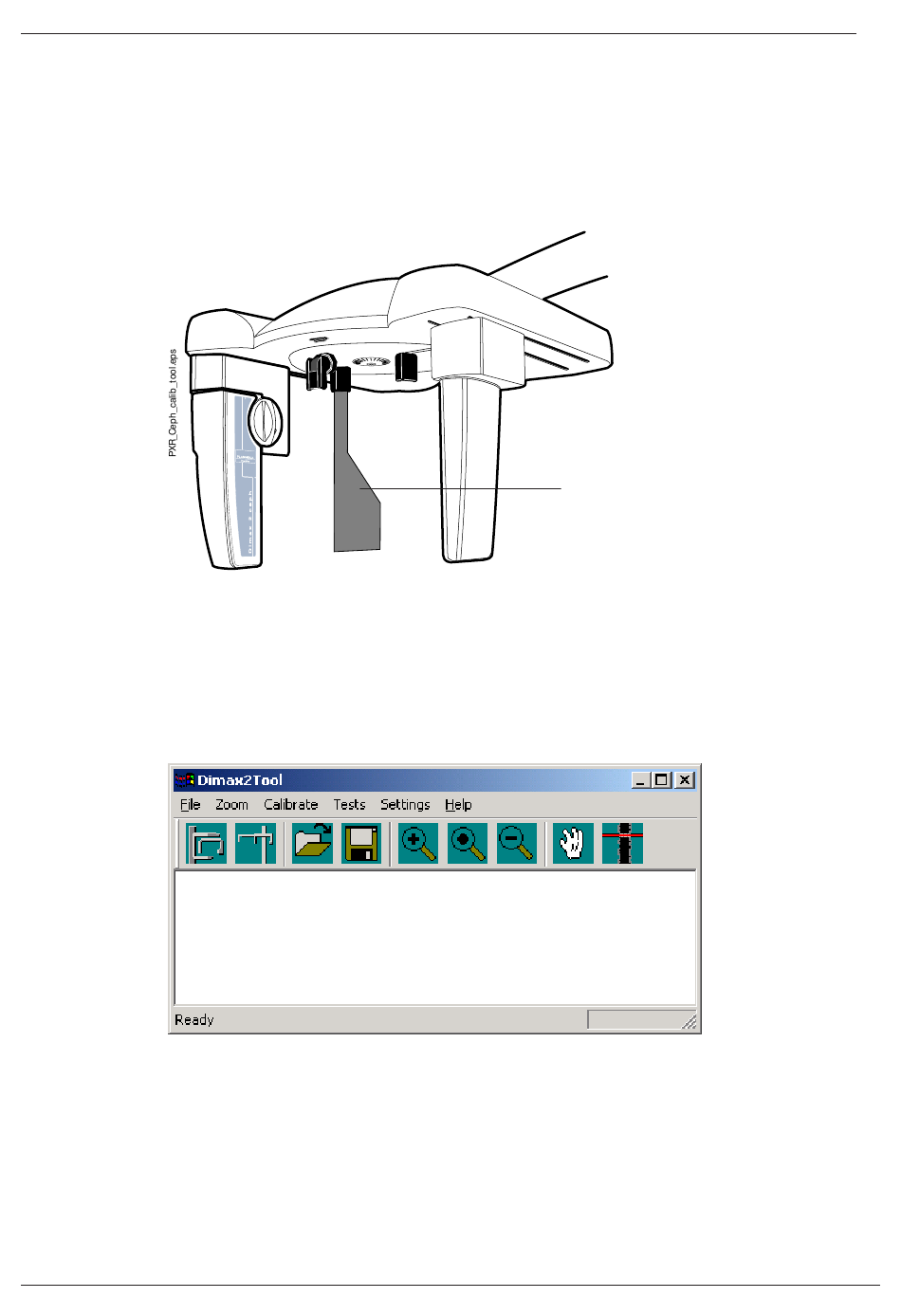

Figure 72
Make sure that the second primary collimator is in its position.
In the Main display select cephalometric program.
Start the Dimax calibration program by double-clicking the Dimax2Tool.exe program icon
located in the Romexis program folder. The DimaxTool window appears.
Figure 73
NOTE The system automatically creates the calibration files into the same folder where the
calibration program is located. The calibration files are named the following way
according to the serial number of the ProMax unit.
If the ProMax sensor head serial number e.g. is: RDX123456, then the calibration files
are named as: RDX123456.p4.cal (p = Panoramic) and RDX123456.c4.cal (c = Cepha-
lostat).
H-42 Planmeca ProMax
ADJUSTMENTS AND CALIBRATIONS
Cephalostat
calibration tool
