Planmeca ProMax Technical Manual page 106

Chapter E - C-ARM AND IMAGING ARM

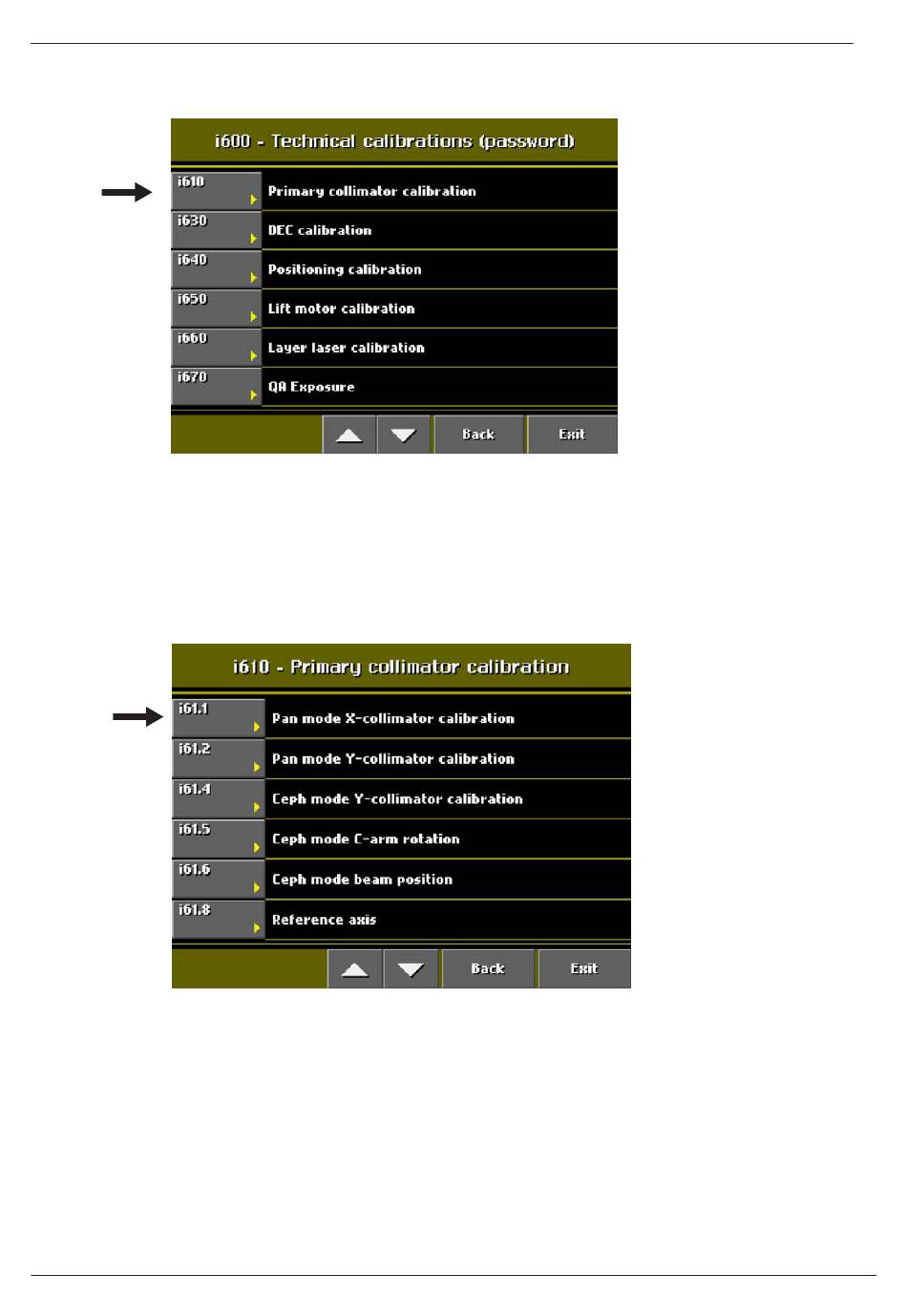

From the list on the i600 display that appears select Primary collimator calibration (i610).
Figure 13
From the list on the i610 display that appears select Pan mode X-collimator calibration
(i61.1). The radiation beam from the collimator can now be checked without the rotating unit
moving.
Figure 14
Manually position the C-arm to a convenient position for viewing the sensor head.
Remove the sensor head from the quick connector mechanism, or remove the fixed sensor
head from its connector (refer to section 6 "REPLACING THE SENSOR HEAD" on page E-
86). Attach the sensor head alignment tool to the connector.
E-8 Planmeca ProMax
PANORAMIC BEAM AND PATIENT POSITIONING MECHANISM
ADJUSTMENT
Technical Manual
