Chapter F - PATIENT SUPPORT ARM
Midsagittal plane positioning light adjustment
Remove the patient support table cover according to the instructions given in section 2.1
"Patient support table cover" on page F-7.

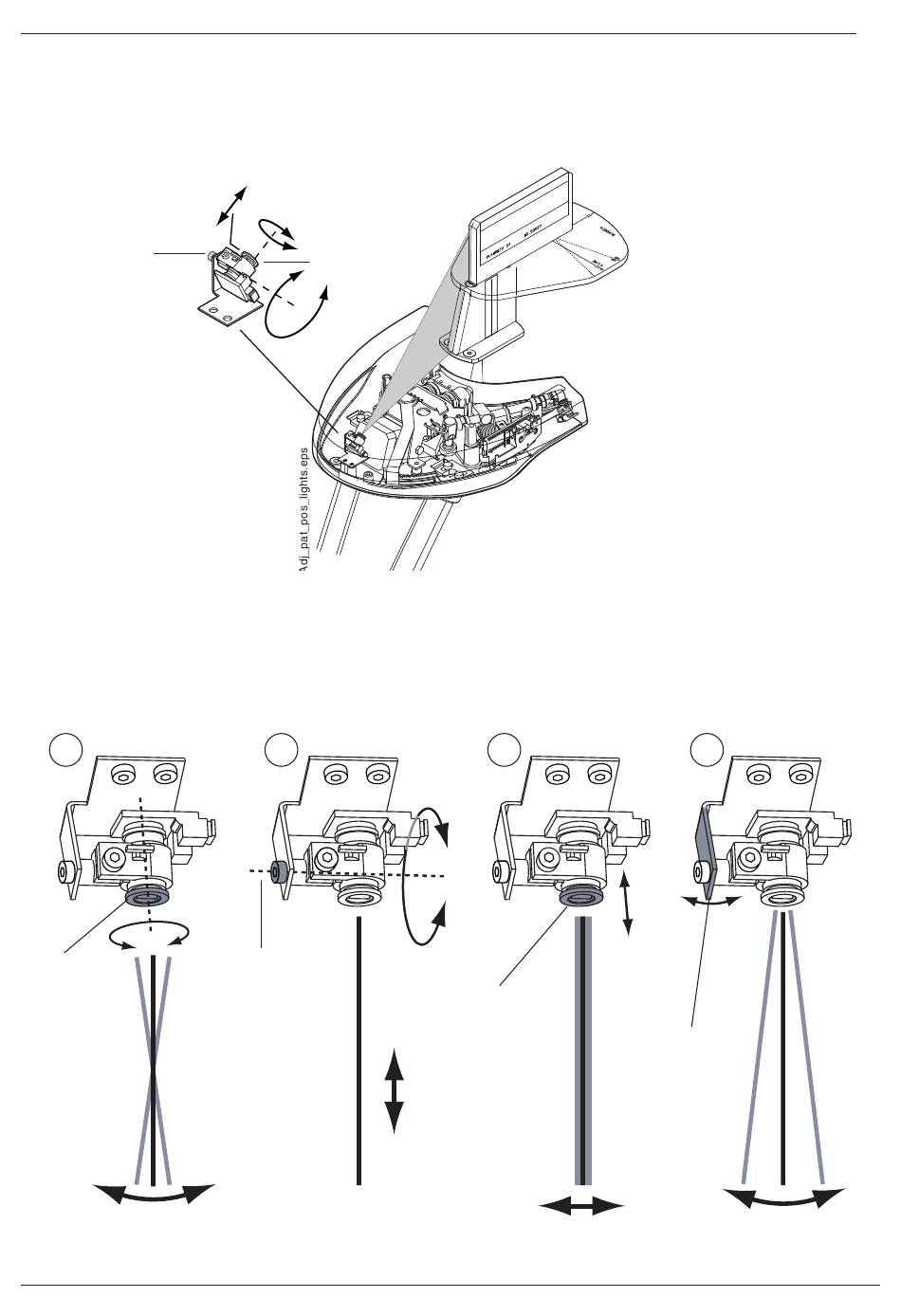

Midsagittal plane positioning light
Light assembly
attachment screw
Figure 2
To adjust the light beam angle rotate the lens assembly of the light (Fig. 3, 1).
To adjust the light vertical position loosen the attachment screw of the laser light assembly
and rotate the assembly (Fig. 3, 2).
To focus the light beam adjust the depth of the lens assembly (Fig. 3, 3).
To adjust the light beam horizontal position bend the light attachment plate (Fig. 3, 4).
1
Lens
assembly
Figure 3
F-2 Planmeca ProMax
Lens assembly
2
Light assembly
attachment screw
3
Lens assembly
ADJUSTMENTS
4
Light attachment
plate
