Chapter G - COLUMN

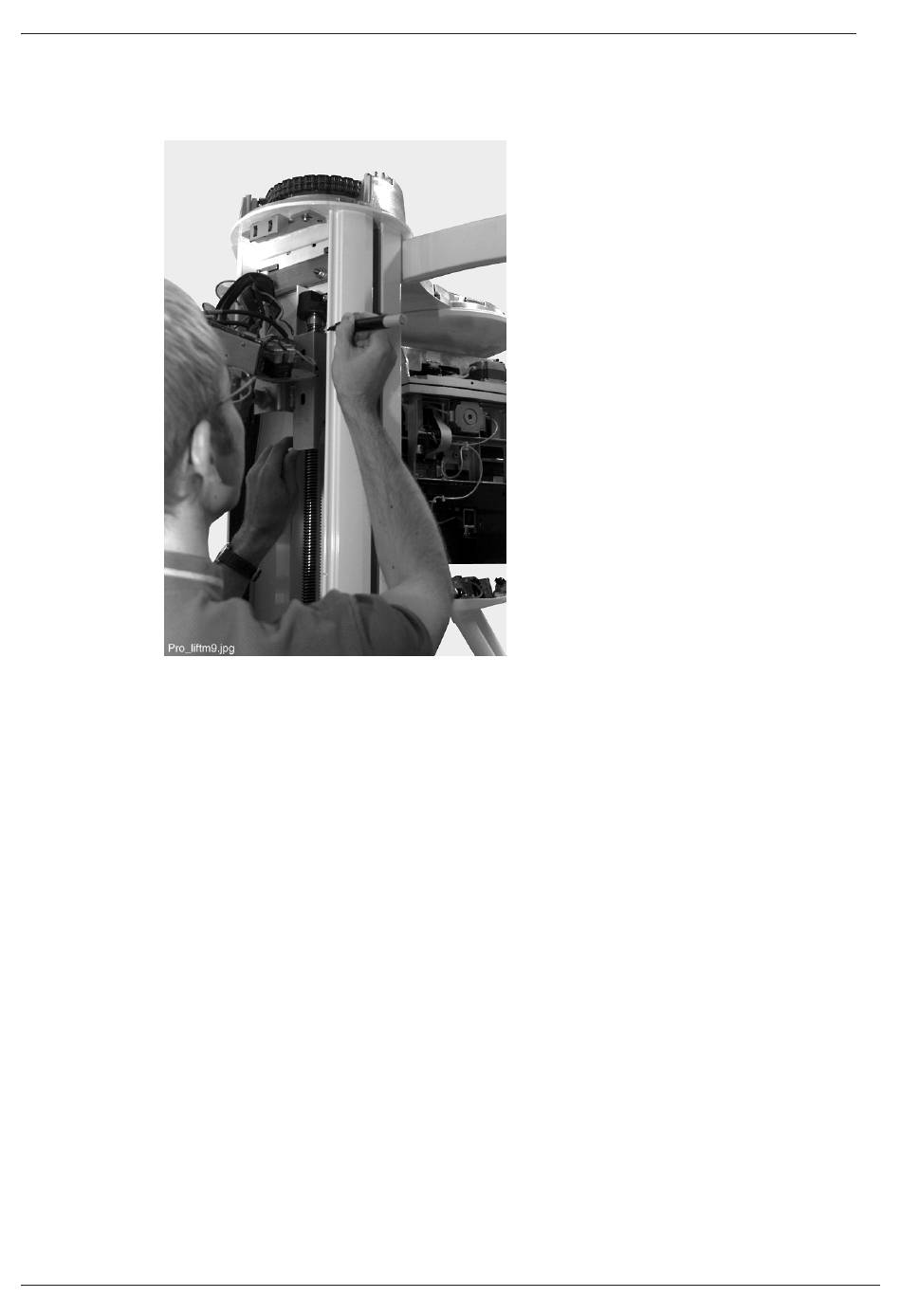

Switch on the unit and drive the telescopic column slowly downwards. The lift nut moves
upwards. When the lift nut has reached its uppermost position mark the position of the nut
frame upper edge to the column with a marker pen or tape.
Figure 44
Switch off the unit.
G-22 Planmeca ProMax
REPLACING THE COLUMN MOTOR
Technical Manual
