Chapter E - C-ARM AND IMAGING ARM
NOTE There are three versions of the sensor: 3D version 1 (V1), 3D version 2 (V2) and 3D s.
The 3D sensor has a larger active area than the 3D s sensor. The 3D version 1 (V1)
sensor has no cooling grille.
Make sure that you have selected the correct 3D sensor on display i57.2, see section
5.7.3 "Select 3D sensor type" on page B-33.
3D sensor V1
No cooling
grille
Active area 13 x 13 cm

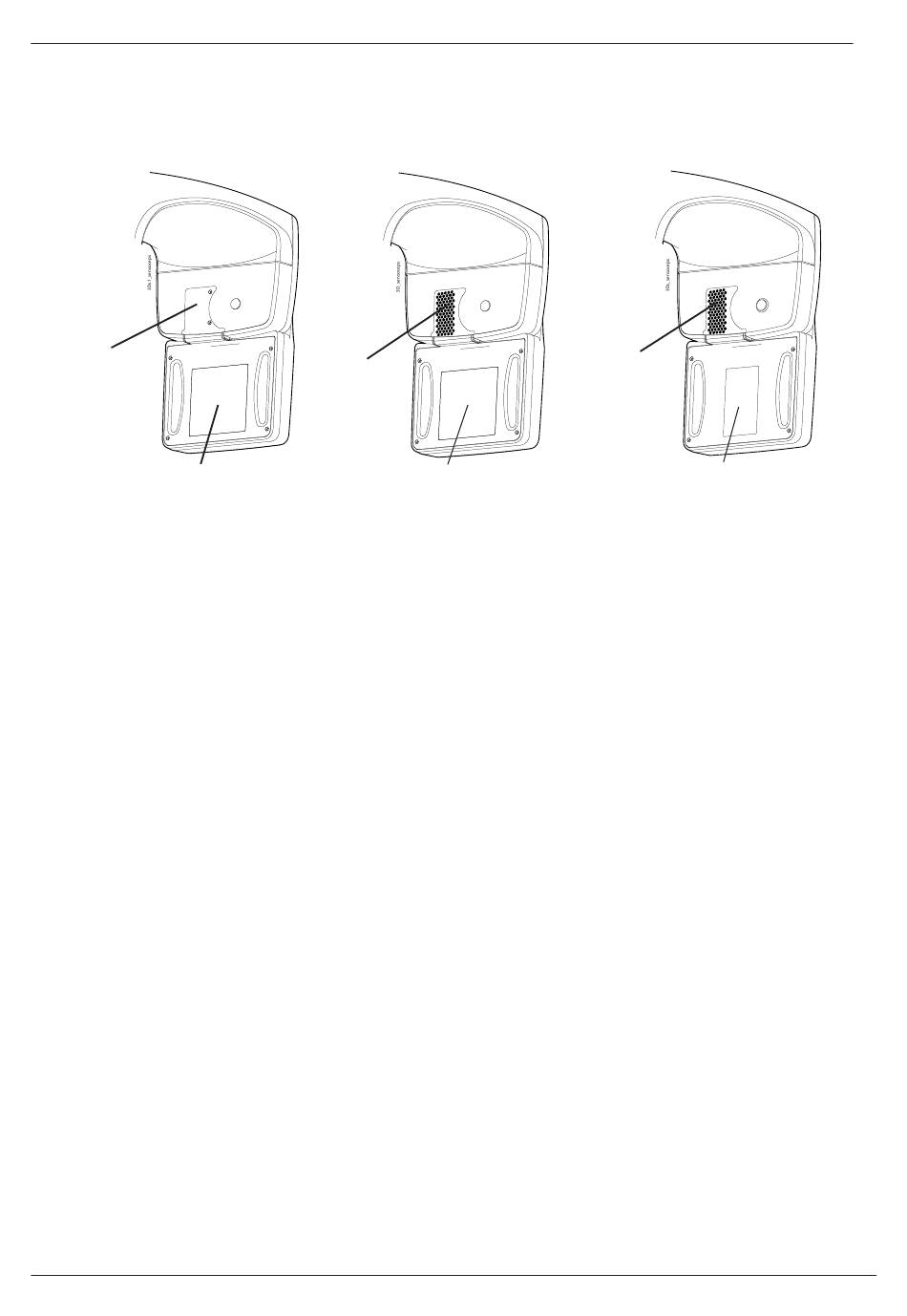

Figure 77
E-60 Planmeca ProMax
3D sensor V2
Cooling grille
Active area 13 x 13 cm
PROMAX 3D: ADJUSTMENTS & CALIBRATIONS
3D s sensor
Cooling grille
Active area 8 x 13 cm
