Planmeca ProMax Technical Manual page 118

Chapter E - C-ARM AND IMAGING ARM

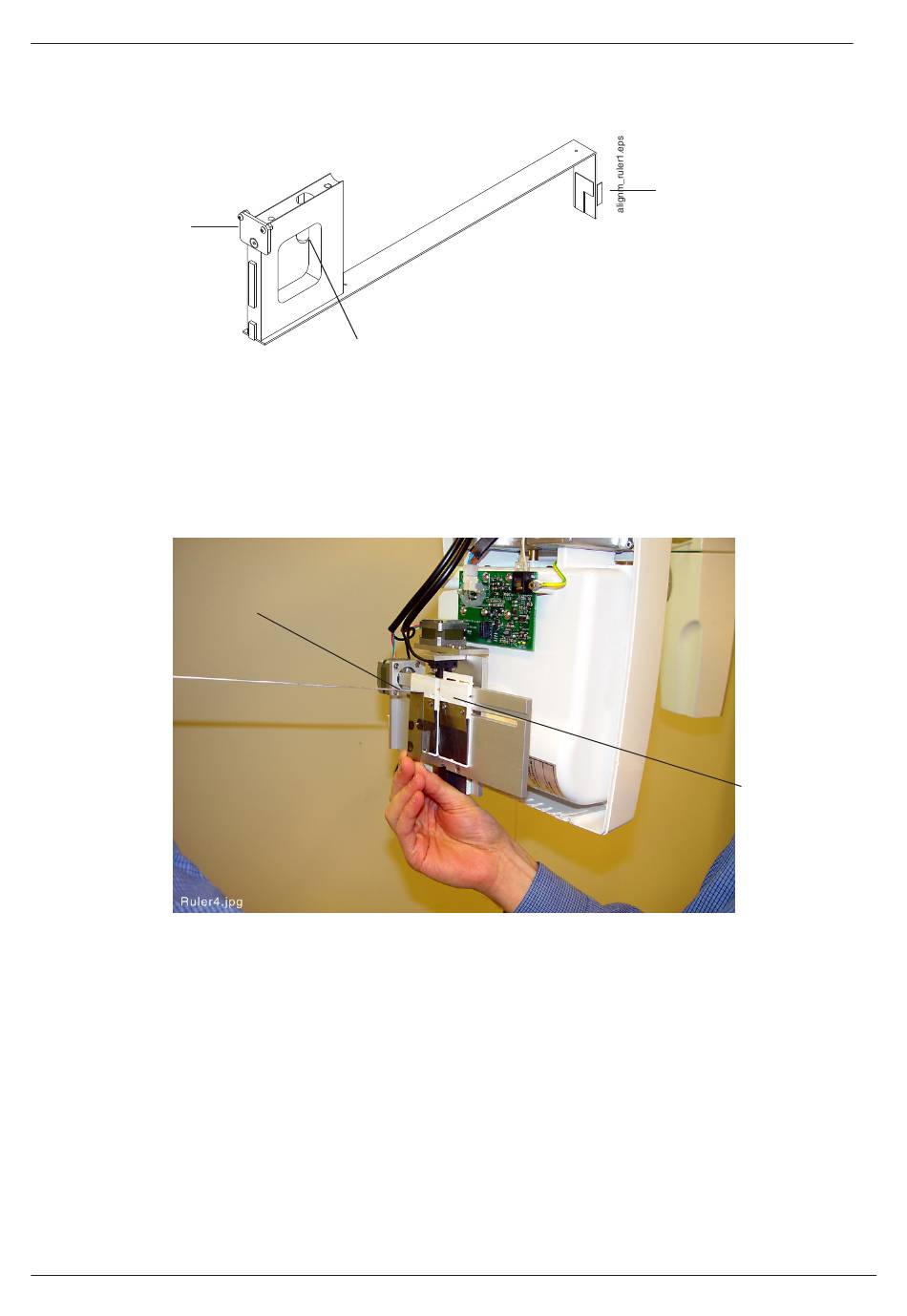

Leave the ball phantom tool in position. Place the alignment tool in position between the multi
primary collimator and the sensor head alignment tool as described below.
Attachment plate
Figure 27
NOTE Units with fixed primary collimator: Place the alignment tool in position between the
tube head and the sensor head alignment tool so that the alignment tool tongue goes
into the primary collimator opening.
Slide the right side blade of the horizontal blade mechanism to the right and position the align-
ment tool tongue into the opening.
Figure 28
E-20 Planmeca ProMax
PANORAMIC BEAM AND PATIENT POSITIONING MECHANISM
Trigger bar
Alignment tool
ProMax alignment tool
ADJUSTMENT
Tongue
Slide the blade
Technical Manual
